2015 Suzuki GW250L5 Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2015 Suzuki GW250L5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

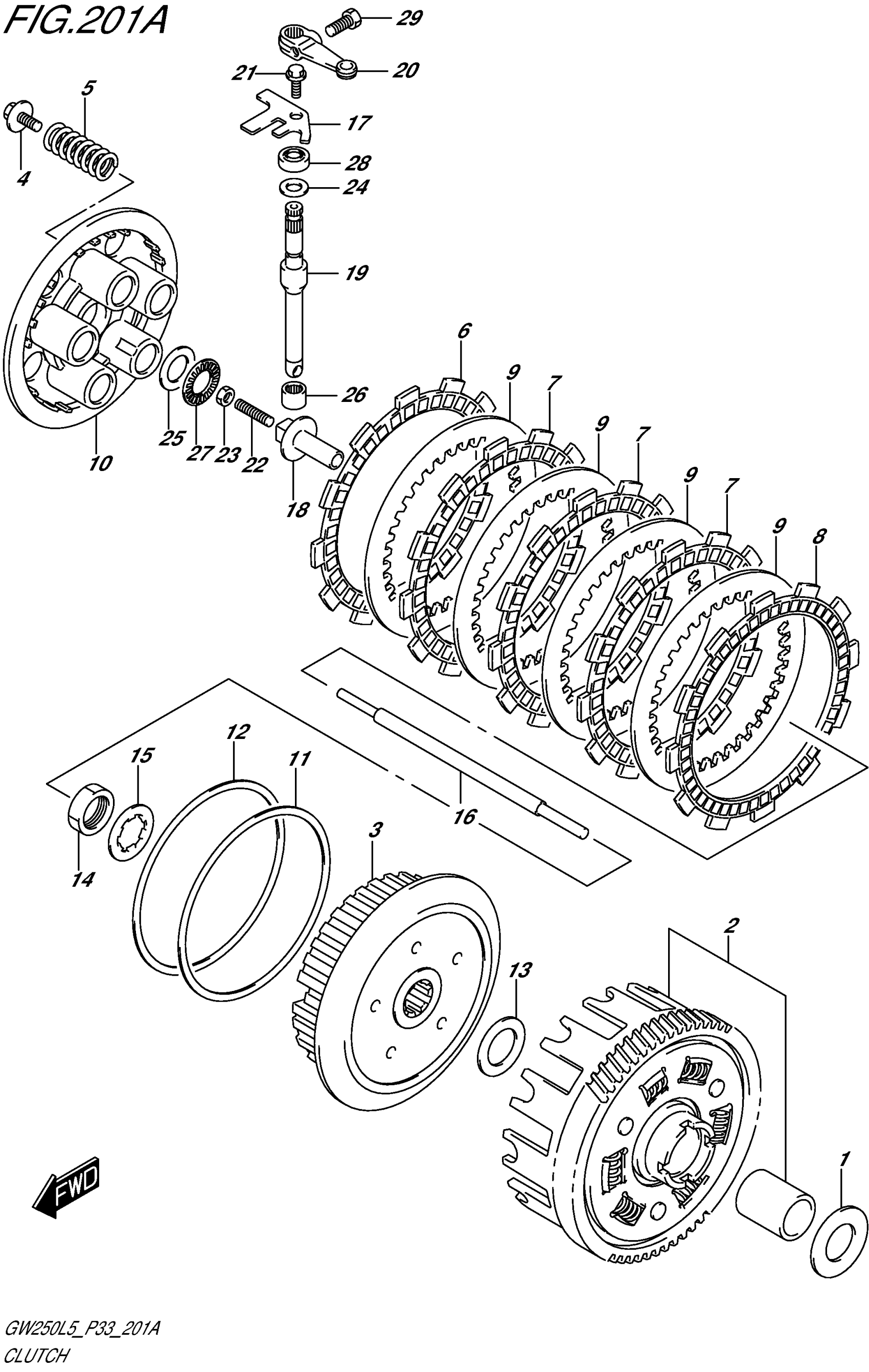

2015 Suzuki GW250L5 Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WASHER,THRUST

21252-48H00

1
Out of stock

2

GEAR ASSY, PRIMARY DRIVEN (NT:68)

21200-48880

1
Out of stock

3

HUB,CLUTCH SLEEVE

21411-48H00

1
Out of stock

4

BOLT,CLUTCH SPRING

21412-48H00

5
Out of stock

5

SPRING, CLUTCH

21413-48H00

5
Out of stock

6

PLATE, CLUTCH DRIVE NO.1 (T:3.0)

21441-48H00

1
Out of stock

7

PLATE, CLUTCH DRIVE NO.2 (T:3.0)

21441-48H10

3
Out of stock

8

PLATE, CLUTCH DRIVE NO.3 (T:3.5)

21442-48H00

1
Out of stock

9

PLATE,CLUTCH DRIVEN (T:2.0)

21451-48H00

4
Out of stock

10

DISC,CLUTCH PRESSURE

21462-48H00

1
Out of stock

11

SEAT,WAVE WASHER

21471-48H00

1
Out of stock

12

WASHER, CLUTCH SLEEVE HUB WAVE

21472-48H00

1
Out of stock

13

WASHER

08211-22363

1

$4.35

In stock

14

NUT

09140-22005

1
Out of stock

15

LOCK WASHER

09167-22029

1
Out of stock

16

ROD,CLUTCH PUSH

23110-48H00

1
Out of stock

17

RETAINER,CL RLSE OIL SEAL

23117-48H00

1
Out of stock

18

PIECE,CLUTCH PUSH

23121-48H00

1
Out of stock

19

CAMSHAFT, CLUTCH RELEASE

23122-48H02

1
Out of stock

20

ARM,CLUTCH RELEASE

23271-48H00

1
Out of stock

21

BOLT (6X12)

09103-06233

1
Out of stock

22

SCREW (6X25)

09134-06018

1
Out of stock

23

NUT

09140-06023

1
Out of stock

24

WASHER (12.5X17X1)

09160-12119

1
Out of stock

25

WASHER (15.5X28X1)

09160-15045

1
Out of stock

26

BEARING (10X14X10) This part replaces 09263-10L01.

09263-10023

1
Out of stock

27

BEARING (15X28X2)

09263-15L01

1
Out of stock

28

OIL SEAL

09285-10L01

1
Out of stock

29

BOLT

01500-0616A

1
Out of stock
