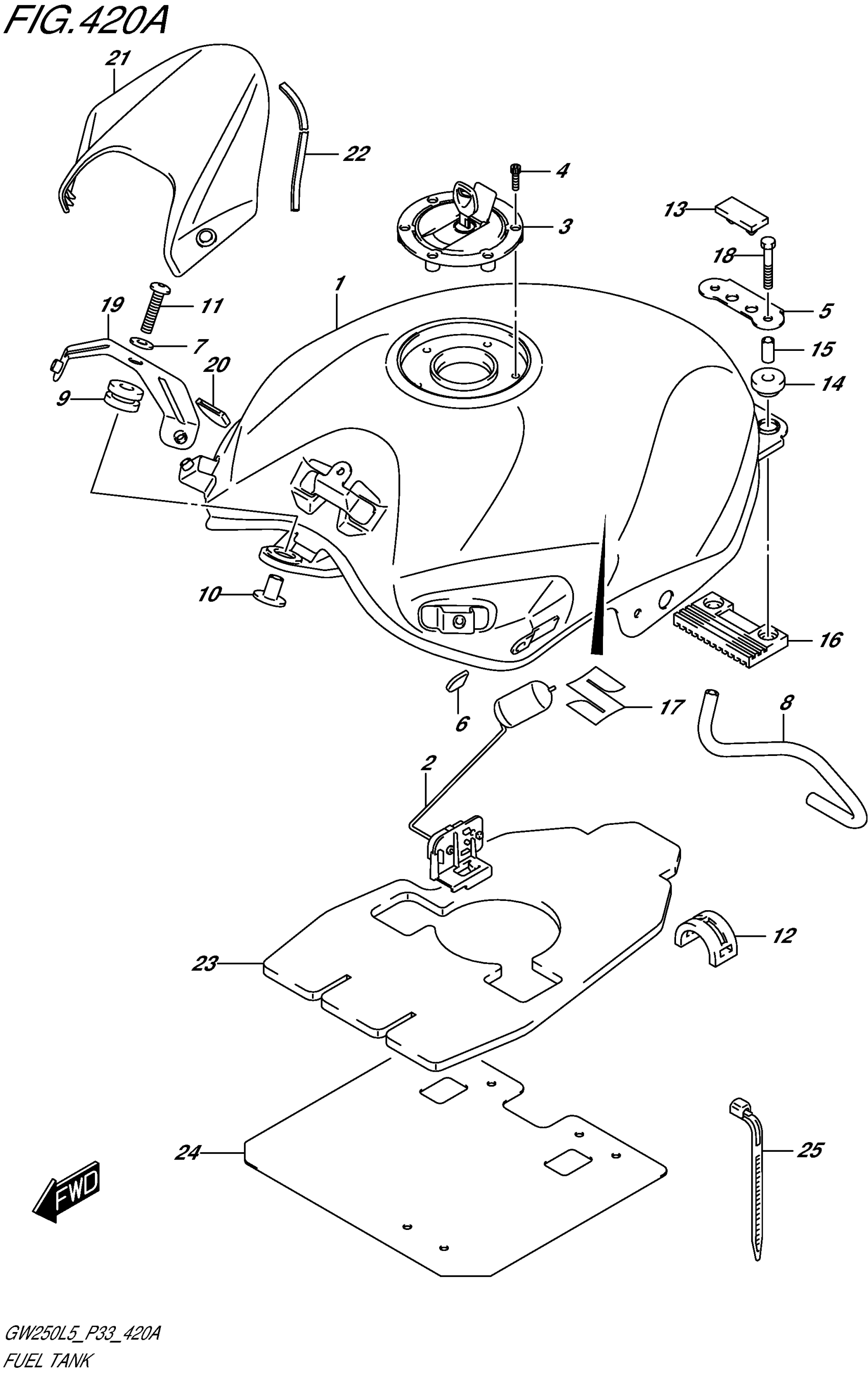

Suzuki GW250L5 (2015) FUEL TANK (GW250L5 P33) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | FOR YAY

44100-48H10-YAY

$938.20

1

TANK ASSY, FUEL (BLUE) | FOR YSF

44100-48H10-YSF

Unavailable

2

GAUGE ASSY,FUEL LEVEL SENDER This part replaces 34810-48H00.

34810-48H01

$81.13

3

CAP SET,FUEL TA This part replaces 44200-16870.

44200-16872

$155.42

4

BOLT (5X20)

44211-48H00

$2.28

5

WASHER, REAR BRACKET

44146-48H00

Unavailable

6

CUSHION,FUEL TANK COVER

44276-48H00

$2.37

7

WASHER, FUEL TANK FRONT

44262-48H00

Unavailable

8

HOSE,FUEL TANK WATER DRAIN

44423-48H10

Unavailable

9

CUSHION, FUEL TANK FRONT

44511-48H00

Unavailable

10

SPACER, FUEL TANK FRONT

44512-48H00

Unavailable

11

SCREW, FUEL TANK FRONT

44513-48H00

Unavailable

12

CUSHION,FUEL TANK SIDE

44541-48H00

$5.63

13

CUSHION, REAR BRACKET

44542-48H00

$4.28

14

CUSHION, FUEL TANK REAR UPPER

44543-48H00

$2.93

15

SPACER,FUEL TANK RR

44544-48H00

Unavailable

16

CUSHION, FUEL TANK REAR LOWER

44545-48H00

Unavailable

17

EMBLEM, "S"

68111-47HA0

$40.44

18

BOLT

01500-0635A

$2.19

19

BRACKET, FUEL TANK COVER

44160-48H00

$6.88

20

CUSHION, TANK COVER BRACKET

44164-48H00

$2.60

21

COVER, FUEL TANK CENTER (SILVER)

44191-48H00-YMD

$61.76

22

CUSHION, TANK COVER CENTER

44277-48H00

$4.03

23

SHIELD, FUEL TANK HEAT

44192-48H00

$17.12

24

SHIELD, FUEL TANK HEAT NO.2

44193-48H10

Unavailable

25

CLAMP

36990-32G10

$2.45
