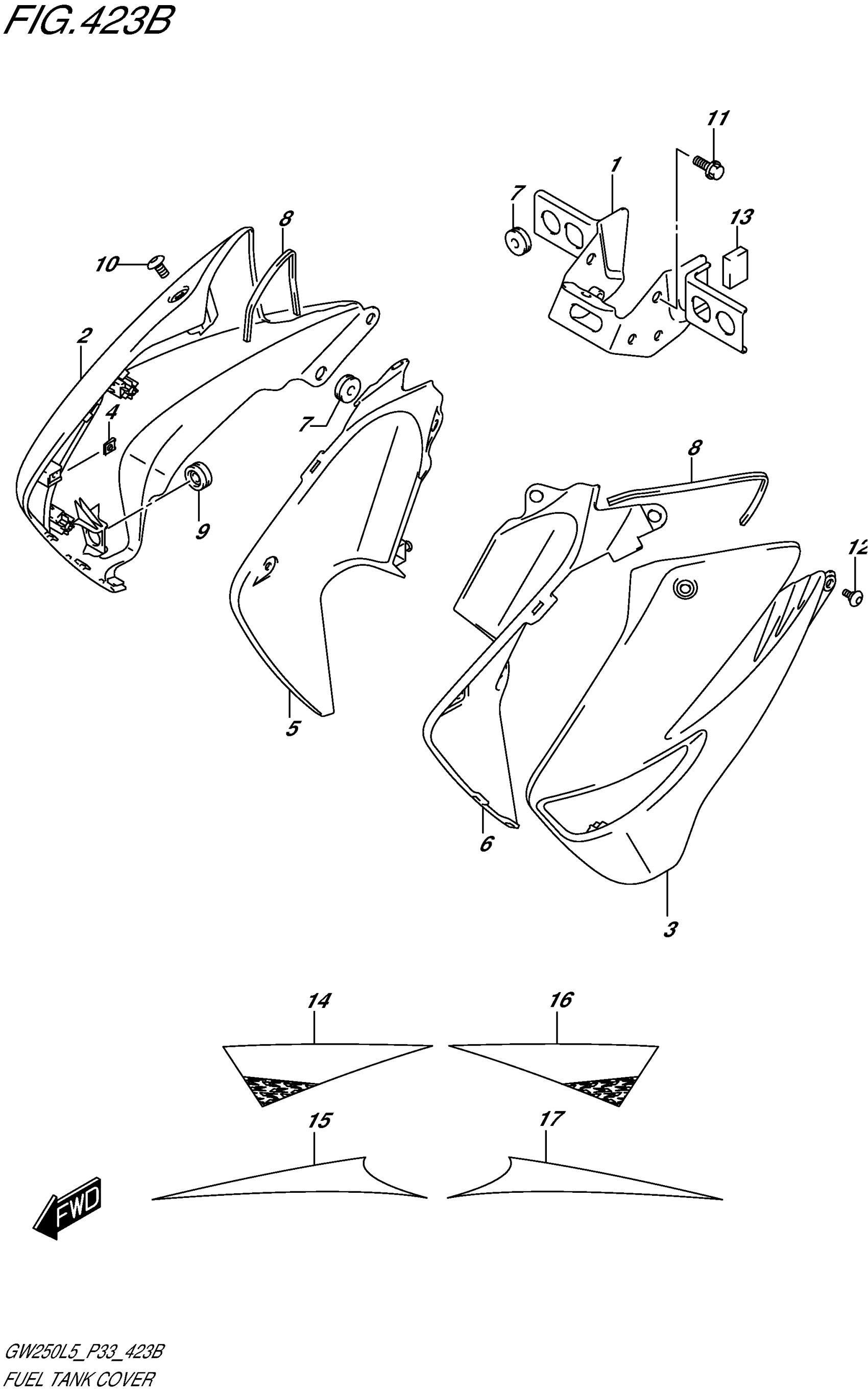

Suzuki GW250L5 (2015) FUEL TANK COVER (GW250ZL5 P33) Diagram

#

Description
Price

1

BRACKET, FRONT SIDE COVER

44150-48H00

Unavailable

2

COVER, FUEL TANK RH (RED/BLACK)

44171-48H00-AY4

$376.17

3

COVER, FUEL TANK LH (RED/BLACK)

44181-48H00-AY4

$376.17

4

NUT, FUEL TANK COVER

44261-48H00

Unavailable

5

COVER, FUEL TANK FRONT RH

44271-48H00

$19.50

6

COVER, FUEL TANK FR LH

44281-48H00

$19.50

7

CUSHION, FUEL TANK COVER

44274-48H00

$3.15

8

CUSHION, FUEL TANK COVER SIDE

44278-48H00

Unavailable

9

CUSHION, FUEL TANK COVER

44279-48H00

$2.93

10

SCREW (6X10)

09139-06172

$3.04

11

BOLT

01550-0616B

$2.48

12

SCREW (6X12)

44514-48H00

$2.60

13

CUSHION, COVER BRACKET

44153-48H00

$2.70

14

TAPE,TANK COVER This part replaces 68115-48H00-AY4.

68115-48H01-AY4

$8.25

15

TAPE, TANK COVER NO.2 RH (RED/BLACK)

68116-48H00-AY4

$7.85

16

TAPE,TANK CVR N This part replaces 68125-48H00-AY4.

68125-48H01-AY4

$7.28

17

TAPE,TANK CVR N This part replaces 68126-48H00-AY4.

68126-48H01-AY4

$7.28
