Partiron

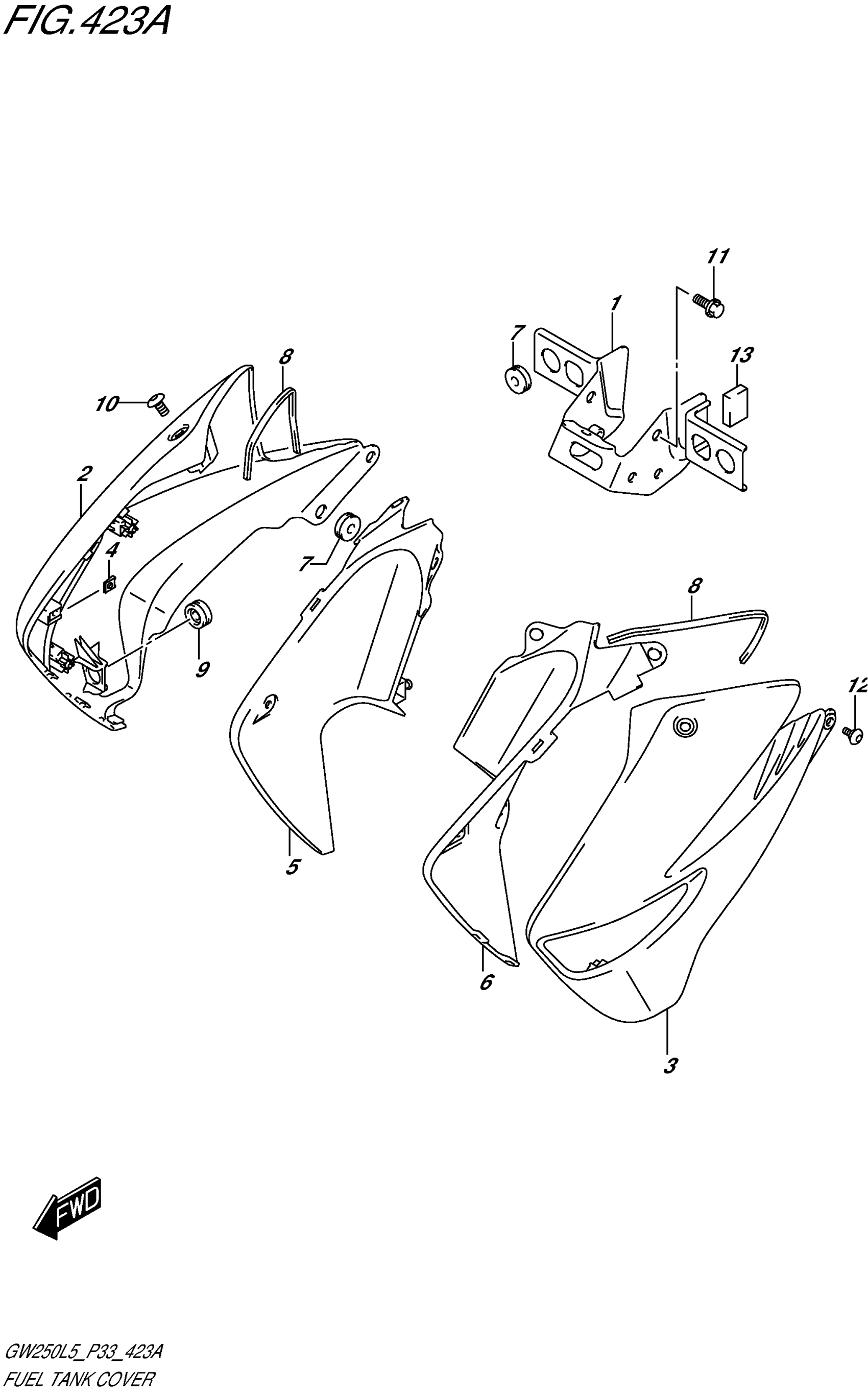

Suzuki GW250L5 (2015) FUEL TANK COVER (GW250L5 P33) Diagram

#

Description
Price

1

BRACKET, FRONT SIDE COVER

44150-48H00

Unavailable

2

COVER, FUEL TANK RH (BLACK)

44171-48H00-YAY

$282.90

2

COVER, FUEL TANK RH (BLUE)

44171-48H00-YSF

Unavailable

3

COVER, FUEL TANK LH (BLACK)

44181-48H00-YAY

$269.12

3

COVER, FUEL TANK LH (BLUE)

44181-48H00-YSF

Unavailable

4

NUT, FUEL TANK COVER

44261-48H00

Unavailable

5

COVER, FUEL TANK FRONT RH

44271-48H00

$22.00

6

COVER, FUEL TANK FR LH

44281-48H00

$22.00

7

CUSHION, FUEL TANK COVER

44274-48H00

$3.57

8

CUSHION, FUEL TANK COVER SIDE

44278-48H00

Unavailable

9

CUSHION, FUEL TANK COVER

44279-48H00

Unavailable

10

SCREW (6X10)

09139-06172

$2.80

11

BOLT

01550-0616B

$2.53

12

SCREW (6X12)

44514-48H00

$2.95

13

CUSHION, COVER BRACKET

44153-48H00

$3.05
