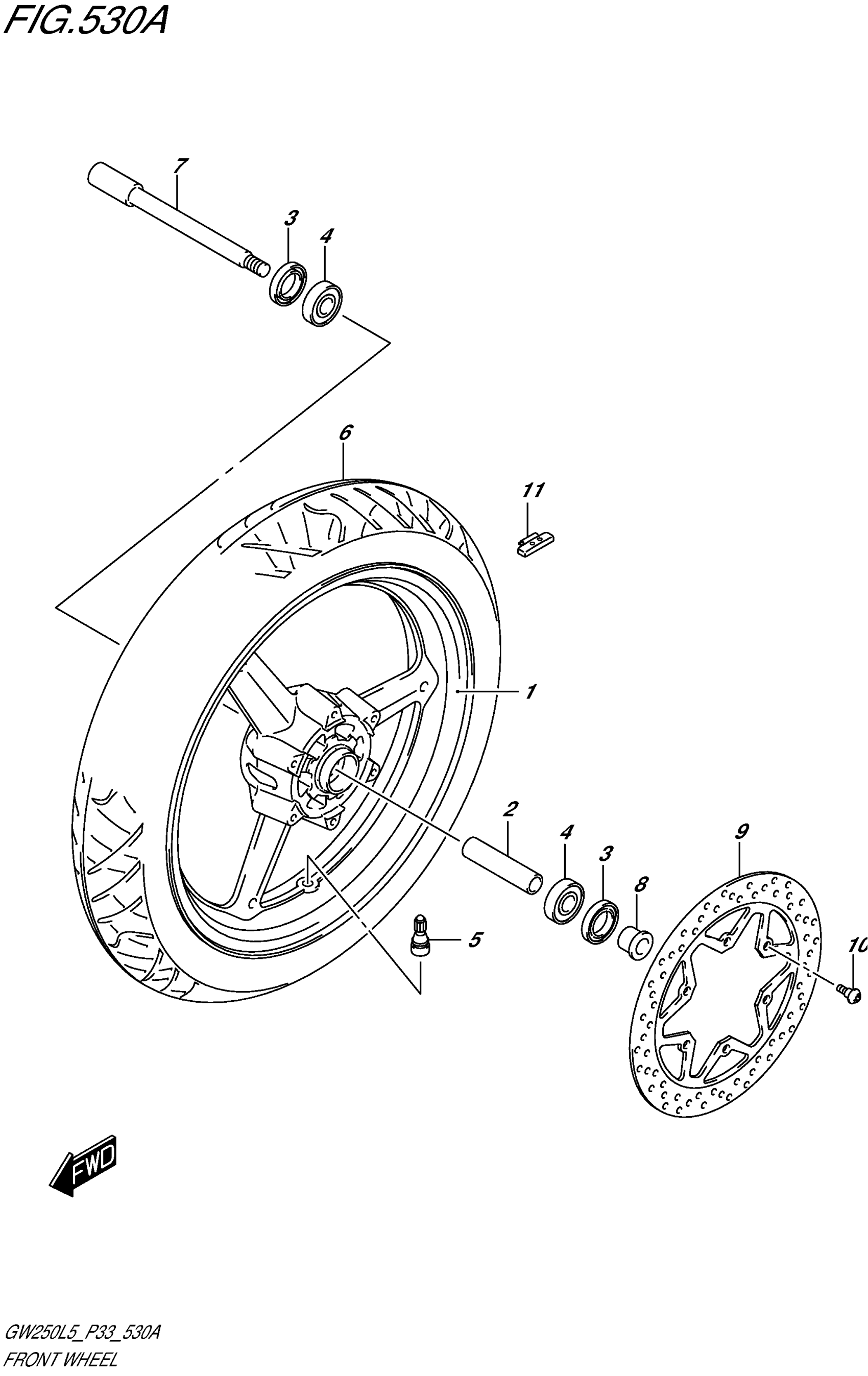

Suzuki GW250L5 (2015) FRONT WHEEL Diagram

#

Description
Price

1

WHEEL, FRONT(17M/CXMT3.00) (BLACK)

54111-48H00-YGA

Unavailable

2

SPACER,FR HUB BEARING

54731-48H00

$8.25

3

SEAL, FRONT WHEEL BEARING

54742-12FH0

$6.97

4

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

5

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

6

TIRE,FRONT (110/80-17M/C 57H) This part replaces 55110-48H00.

55110-48H31

$234.58

7

AXLE,FR

54711-48H20

$27.30

8

SPACER,FR AXLE,L

54751-48H00

Unavailable

9

DISC, FRONT BRAKE

59221-48H00

$201.58

10

BOLT, FRONT BRAKE DISC

59421-48H00

Unavailable

11

BALANCER, WHEEL (10G)

55411-22H00

$8.60

11

BALANCER, WHEEL (20G)

55412-22H00

$10.07

11

BALANCER, WHEEL (30G)

55413-22H00

$11.47
