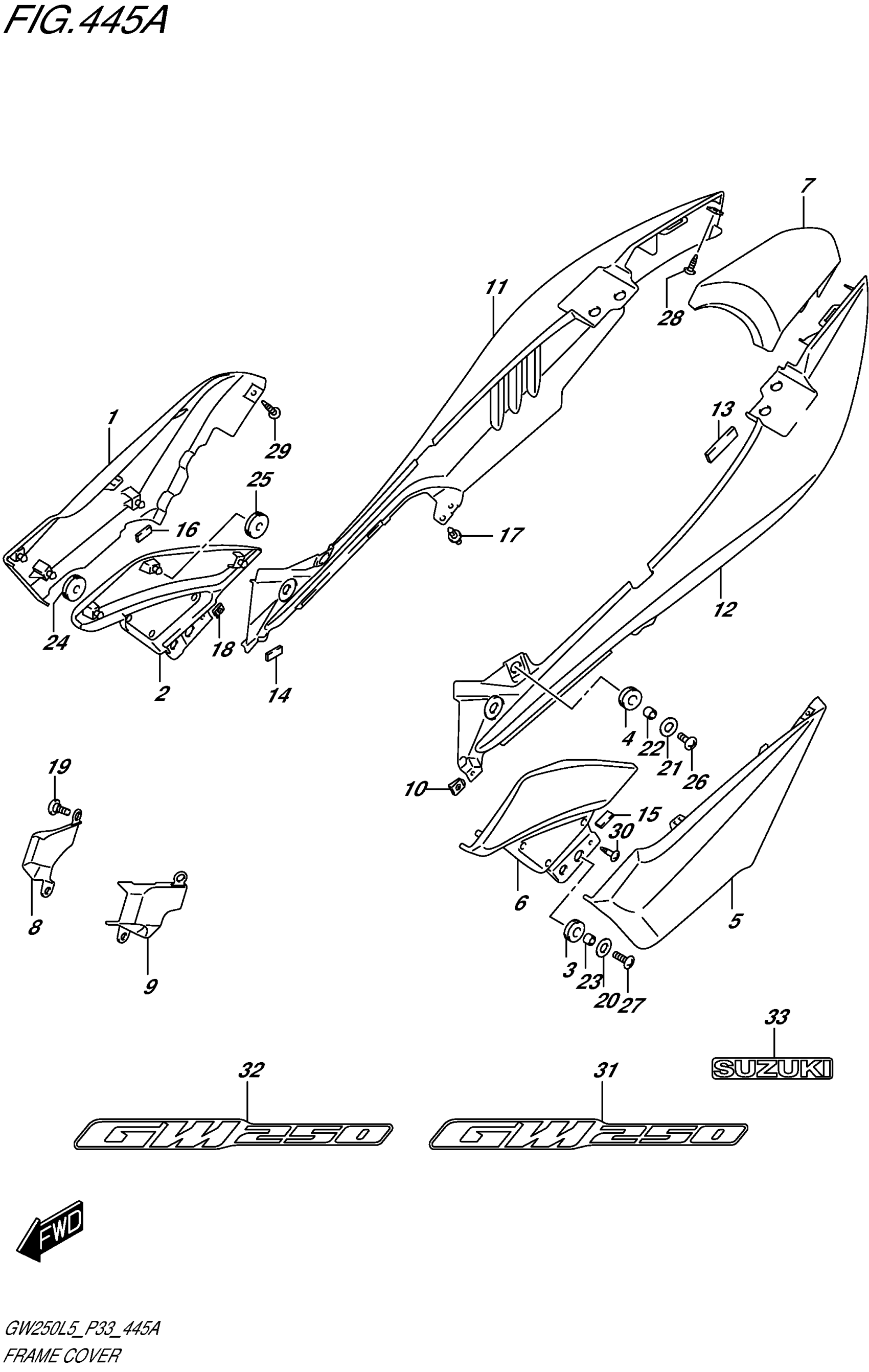

Suzuki GW250L5 (2015) FRAME COVER (GW250L5 P33) Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47111-48H00-YKV

$83.52

2

COVER, FRAME FRONT RH (SILVER/BLACK)

47121-48H00-AB4

$69.42

3

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$1.78

4

CUSHION,FRAME COVER This part replaces 47161-48H00.

47161-48H10

$1.78

5

COVER, FRAME LH (BLACK)

47211-48H00-YKV

Unavailable

6

COVER, FRAME FRONT LH (SILVER/BLACK)

47221-48H00-AB4

$69.42

7

COVER, FRAME UPPER CENTER (BLACK)

47311-48H00-YAY

Unavailable

8

COVER, FRAME HEAD RH

47351-48H00

Unavailable

9

COVER, FRAME HEAD LH

47361-48H00

$4.83

10

NUT

47399-48H00

$2.38

11

COVER, FRAME UPPER RH (BLACK)

47831-48H00-YAY

$235.14

12

COVER,FRAME UPR This part replaces 47841-48H00-YAY.

47841-48H01-YAY

$167.20

13

CUSHION, COVER UPPER REAR

47845-48H00

$3.72

14

CUSHION, COVER UPPER

47846-48H00

$1.95

15

CUSHION, COVER FRONT

47846-48H00

$1.95

16

CUSHION, FRAME COVER

47846-48H00

$1.95

17

CLIP, COVER UPPER

48292-32GH0

$2.58

18

NUT, COVER FRAME FRONT

93162-37G00

Unavailable

19

SCREW, FRAME HEAD COVER

47353-48H00

$3.47

20

WASHER (6.5X20X1.2)

09160-06077

$1.91

21

WASHER (6.5X20X1.2)

09160-06077

$1.91

22

SPACER (6.5X10X7)

09180-06283

$1.91

23

SPACER (6.5X10X7)

09180-06283

$1.91

24

CUSHION

09320-08018

$3.04

25

CUSHION

09320-08018

$3.04

26

SCREW

02142-0620A

$1.49

27

SCREW

02142-0620A

$1.49

28

SCREW

03541-0516A

$1.49

29

SCREW

03541-0516A

$1.49

30

SCREW

03541-0516A

$1.49

31

EMBLEM, FRAME COVER RH (SILVER/GRAY)

68131-48H20-CRT

$4.67

32

EMBLEM, FRAME COVER LH (SILVER/GRAY)

68141-48H20-CRT

$4.67

33

EMBLEM, "SUZUKI" (SILVER/BLACK)

68281-48H60-FJA

Unavailable
