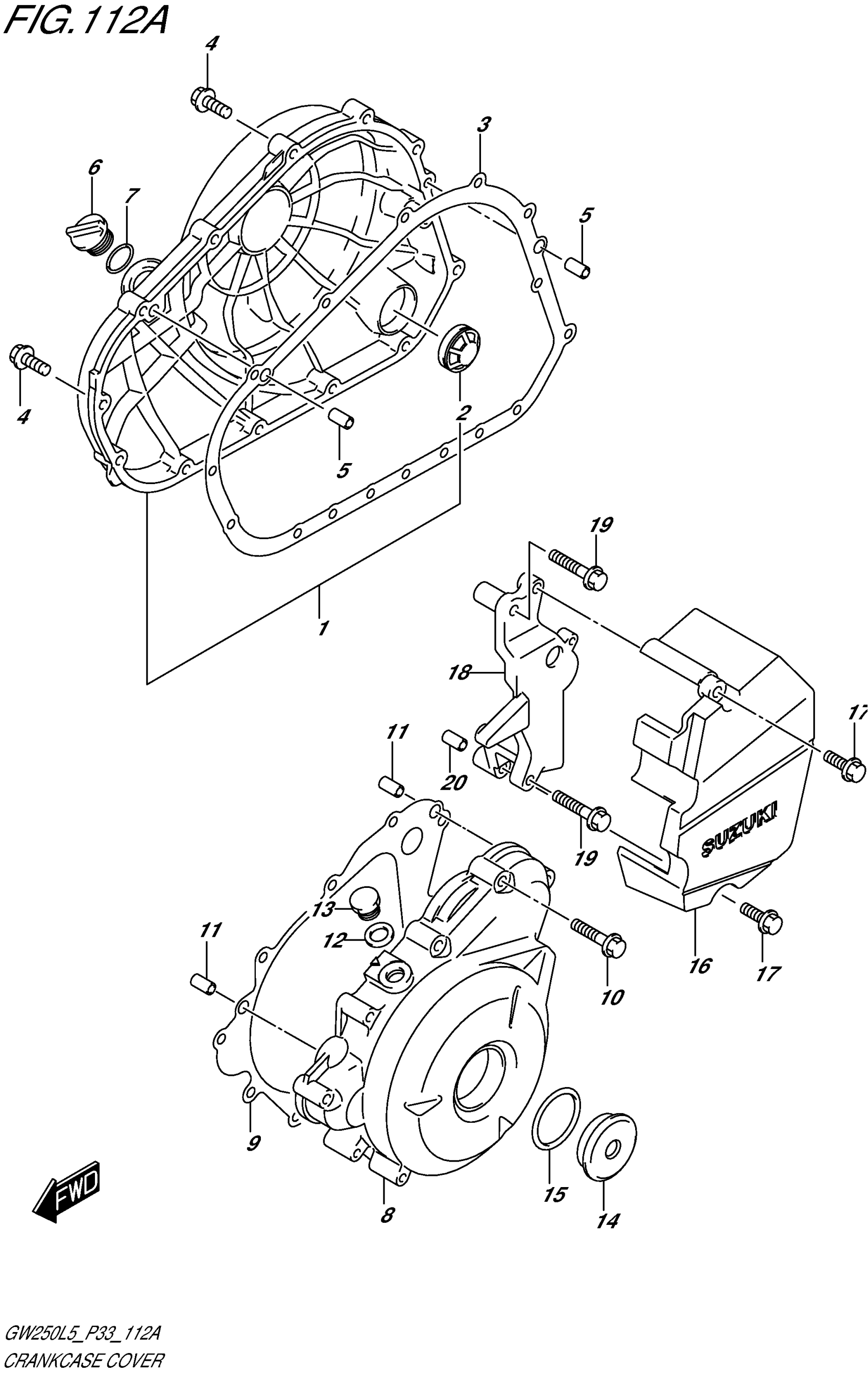

Suzuki GW250L5 (2015) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-48H00

$211.35

2

LENS, OIL LEVEL CHECK

11971-48H00

$6.29

3

GASKET, CLUTCH COVER

11482-48H00

$42.72

4

BOLT

01547-0630A

$2.32

5

PIN

04211-09149

$1.65

6

PLUG,OIL FILLER

11972-48H00

$4.45

7

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

8

COVER, MAGNETO

11351-48H00

$167.72

9

GASKET, MAGNETO COVER

11483-48H00

$23.98

10

BOLT

01547-0635A

$2.30

11

PIN

04211-09149

$1.65

12

GASKET,TDC PLUG

11352-48H00

$2.60

13

PLUG (12X9)

09247-12104

$2.73

14

PLUG (SILVER)

09259-36016-20H

$13.80

15

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

16

COVER, ENGINE SPROCKET

11360-48H00

Unavailable

17

BOLT

01547-0625A

$2.01

18

BRACKET, SPEED SENSOR

11371-48H00

$38.35

19

BOLT

01547-0640A

$2.32

20

PIN

04211-09149

$1.65
