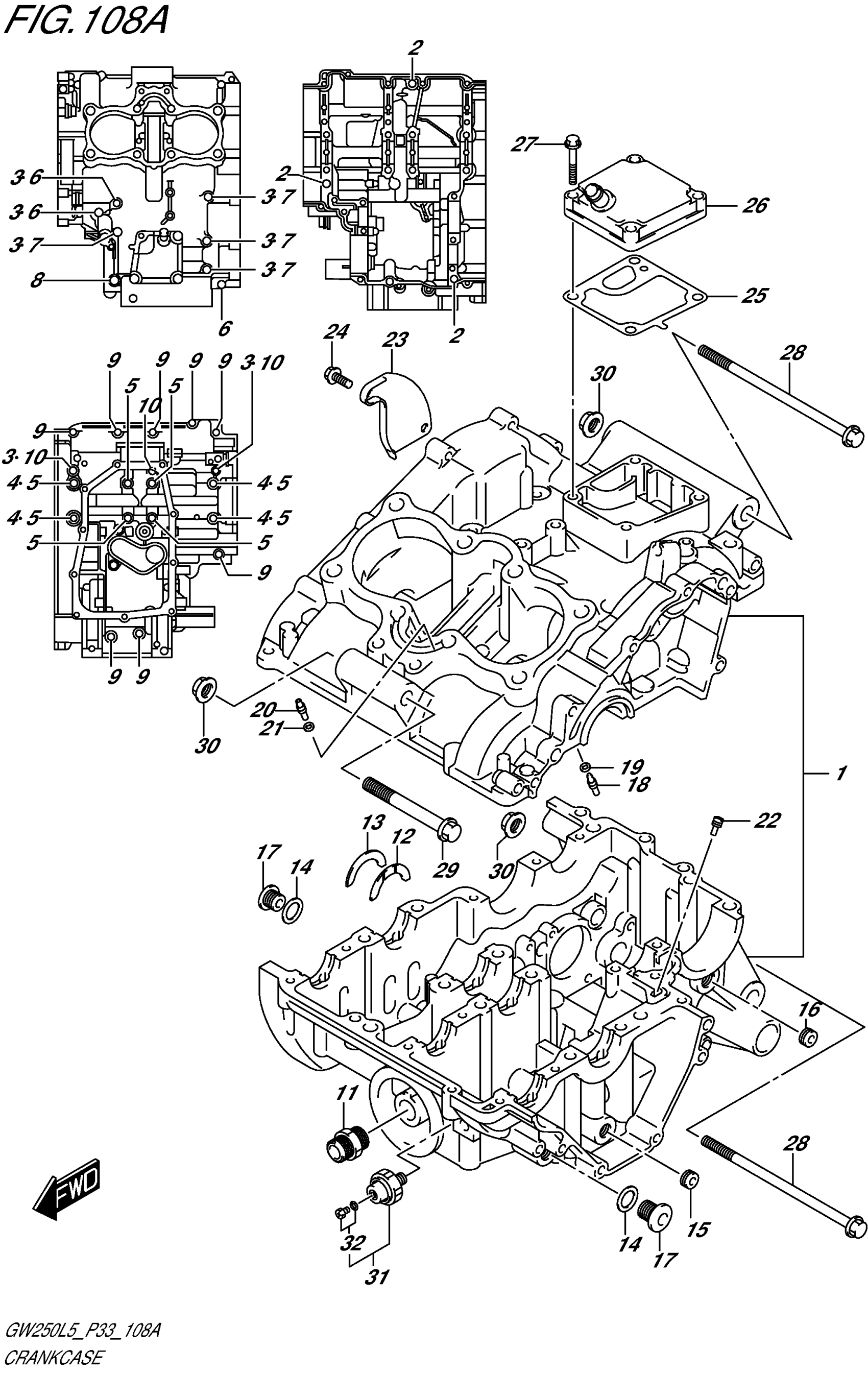

Suzuki GW250L5 (2015) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-48871

Unavailable

2

PIN

04211-11169

$1.78

3

GASKET (5.8X13X1.8)

09168-06L04

Unavailable

4

GASKET (8.2X14X1)

09168-08035

Unavailable

5

BOLT (8X105)

09103-08133

Unavailable

6

BOLT

01547-0635A

$2.30

7

BOLT

01547-0655A

$2.42

8

.BOLT

01550-0855A

$3.05

9

BOLT

01547-0635A

$2.30

10

BOLT

01547-0690A

$2.70

11

UNION, OIL FILTER STAND

16591-48H00

$4.03

12

BEARING, CRANK THRUST (YELLOW)

12228-17E00-0E0

$11.38

13

BEARING, CRANK THRUST (WHITE)

12228-17E00-0F0

$11.60

13

BEARING, CRANK THRUST (ORANGE)

12228-17E00-0G0

Unavailable

13

BEARING, CRANK THRUST (PINK)

12228-17E00-0H0

Unavailable

13

BEARING, CRANK THRUST (BROWN)

12228-17E00-0J0

Unavailable

13

BEARING, CRANK THRUST (PURPLE)

12228-17E00-0K0

Unavailable

13

BEARING, CRANK THRUST (NO COLOR)

12228-17E00-0L0

Unavailable

14

GASKET (14X18.3X4.8)

09168-14L01

$1.49

15

PLUG, OIL GALLERY

11322-48H00

$4.25

16

PLUG, SHIFT FORK SHAFT

11322-48H00

$4.25

17

PLUG (14X12)

09248-14013

Unavailable

18

JET,PISTON COOLING

11391-48H00

Unavailable

19

O RING (D:1.2,ID:4)

09280-04004

$1.91

20

JET,OIL GALLERY CYLINDER

11329-48H00

Unavailable

21

O RING (D:1.2,ID:4)

09280-04004

$1.91

22

JET,T/M COOLING

11313-48H00

Unavailable

23

PLATE,OIL SEPARATOR

11317-48H00

Unavailable

24

BOLT

01547-0612A

$2.03

25

GASKET, BREATHER COVER

11318-48H00

$4.75

26

COVER,BREATHER

11330-48H01

Unavailable

27

BOLT

01547-0630A

$2.32

28

BOLT (10X155)

09103-10115

$15.32

29

BOLT (10X85)

09103-10445

$5.58

30

NUT

09159-10L06

$1.50

31

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

32

BOLT, OIL PRESSURE SWITCH

37822-33D00

$4.35
