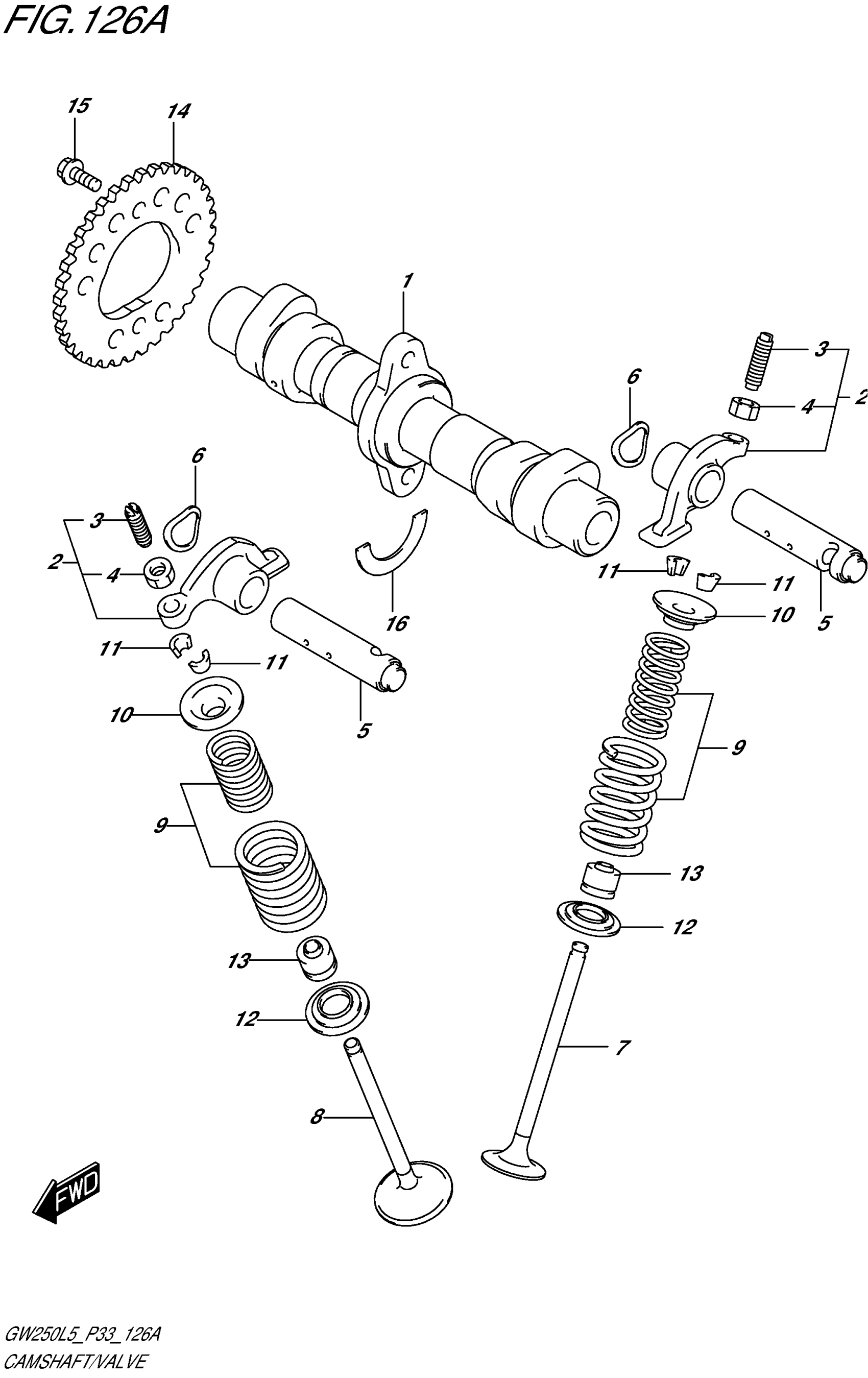

Suzuki GW250L5 (2015) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-48H00

Unavailable

2

ARM, VALVE ROCKER

12840-20H10

$25.90

3

SCREW, TAPPET ADJUSTING

12842-49220

Unavailable

4

NUT, TAPPET ADJUSTING

12843-27A10

Unavailable

5

SHAFT,VALVE ROCKER ARM

12861-48H00

$8.70

6

WASHER

09164-12018

$1.49

7

VALVE, INTAKE

12911-20H10

$16.87

8

VALVE, EXHAUST

12912-20H10

$27.43

9

SPRING SET,VALVE

12920-48H10

$11.78

10

RETAINER,VALVE SPRING

12931-27A30

Unavailable

11

COTTER,VALVE This part replaces 12932-27A10.

12932-36H00

$1.49

12

SEAT,VALVE SPRING

12933-81410

Unavailable

13

SEAL,OIL (5X10X8.7)

09289-05L02

$9.22

14

SPROCKET,CAMSHAFT (NT:38)

12741-48H00

$13.65

15

BOLT (6X12.5)

09111-06027

$1.72

16

C-RING

09390-22002

$2.27
