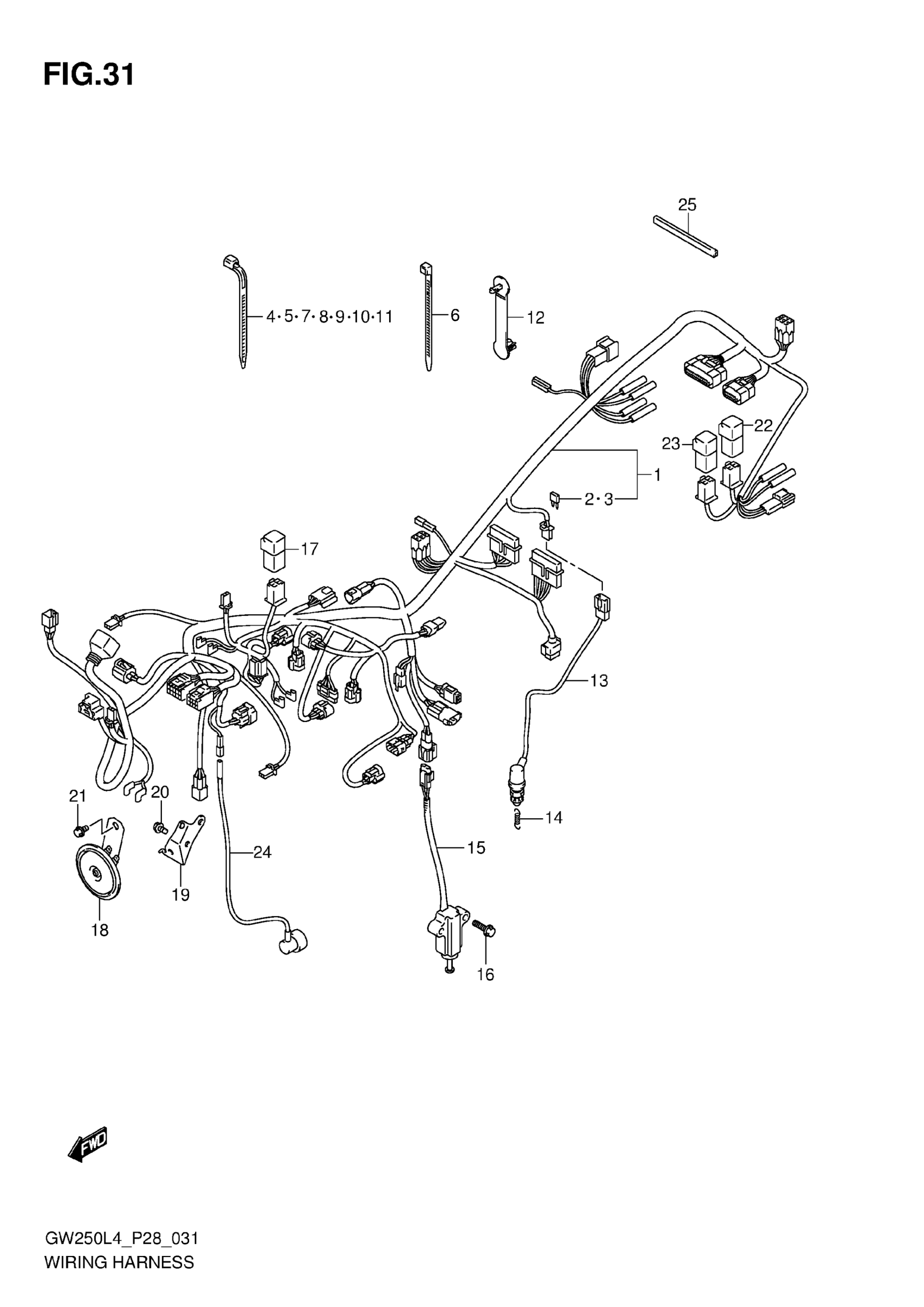

Suzuki GW250L4 (2014) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING

36610-48H60

Unavailable

2

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

CLAMP, WIRING HARNESS

36990-32G10

$2.45

5

CLAMP, WIRING HARNESS

36990-32G20

$2.45

6

CLAMP (L:248)

09407-25402

$4.64

7

CLAMP (L:235)

09407-25401

$4.66

8

CLAMP,WIRING HARNESS (L:200)

36990-48H00

$2.93

9

CLAMP,WIRING HARNESS

36990-45H30

Unavailable

10

CLAMP (L:190)

09407-19401

$3.05

11

CLAMP,WIRING HARNESS (L:95)

36990-32G30

Unavailable

12

CLAMP, WIRING HARNESS

36990-48H10

Unavailable

13

SWITCH ASSY,STO This part replaces 37740-33G00.

37740-48H90

$48.27

14

SPRING

09443-06046

$3.10

15

SWITCH ASSY,SIDE STAND This part replaces 37840-18J00.

37840-18J02

$52.92

16

BOLT

01550-0620B

$2.39

17

RELAY ASSY, SIDE STAND

38740-33G00

Unavailable

18

HORN ASSY

38500-48H01

Unavailable

19

PLATE, HORN

38590-48H00

Unavailable

20

BOLT

01550-0812B

$2.73

21

BOLT

01550-0612B

$2.39

22

RELAY ASSY, FUEL PUMP

38740-33G00

Unavailable

23

RELAY ASSY, FAN MOTOR

38740-33G00

Unavailable

24

WIRE, OIL PRESSURE SWITCH LEAD

36851-48H01

Unavailable

25

PROTECTOR, WIRING HARNESS

36618-48H00

Unavailable
