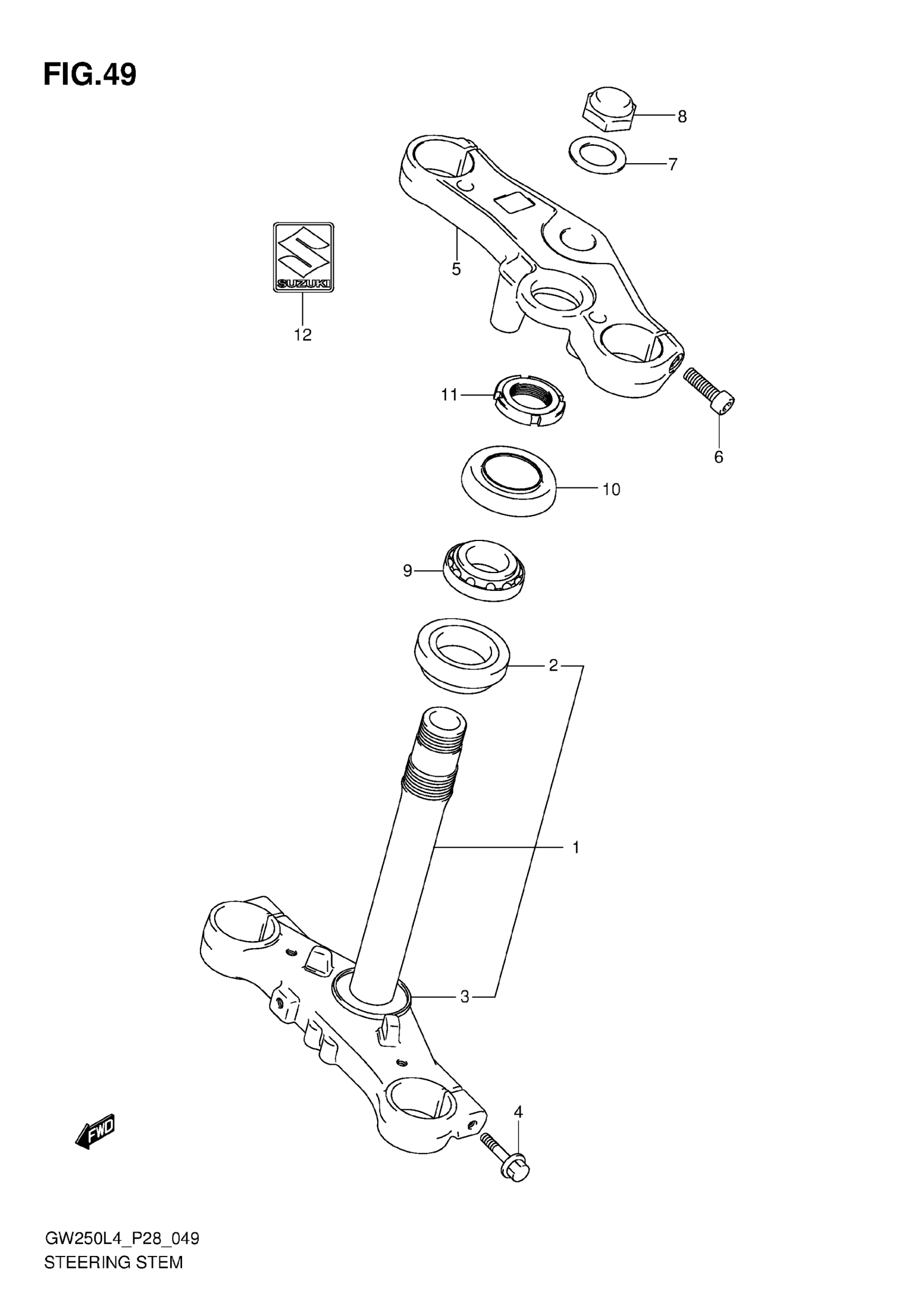

Suzuki GW250L4 (2014) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER

51410-48H00

$453.92

2

BEARING (30X55X17)

51610-48H00

$56.52

3

SEAL, STEERING LOWER

51644-48H00

$2.92

4

BOLT,BRACKET UNDER

51451-48H00

Unavailable

5

BRACKET, UPPER

51311-48H40

Unavailable

6

BOLT,BRACKET UPR This part replaces 51166-48H00.

51166-48H10

$26.40

7

WASHER

51172-48H00

$9.23

8

NUT, CAP

51353-24B00

$30.67

9

BEARING (25X47X15)

09267-25L01

$60.20

10

SEAL, STEERING UPPER DUST

51643-49002

$12.32

11

NUT,STEERING STEM

51631-48H00

$5.80

12

EMBLEM, \S\

68281-35F00

$16.45
