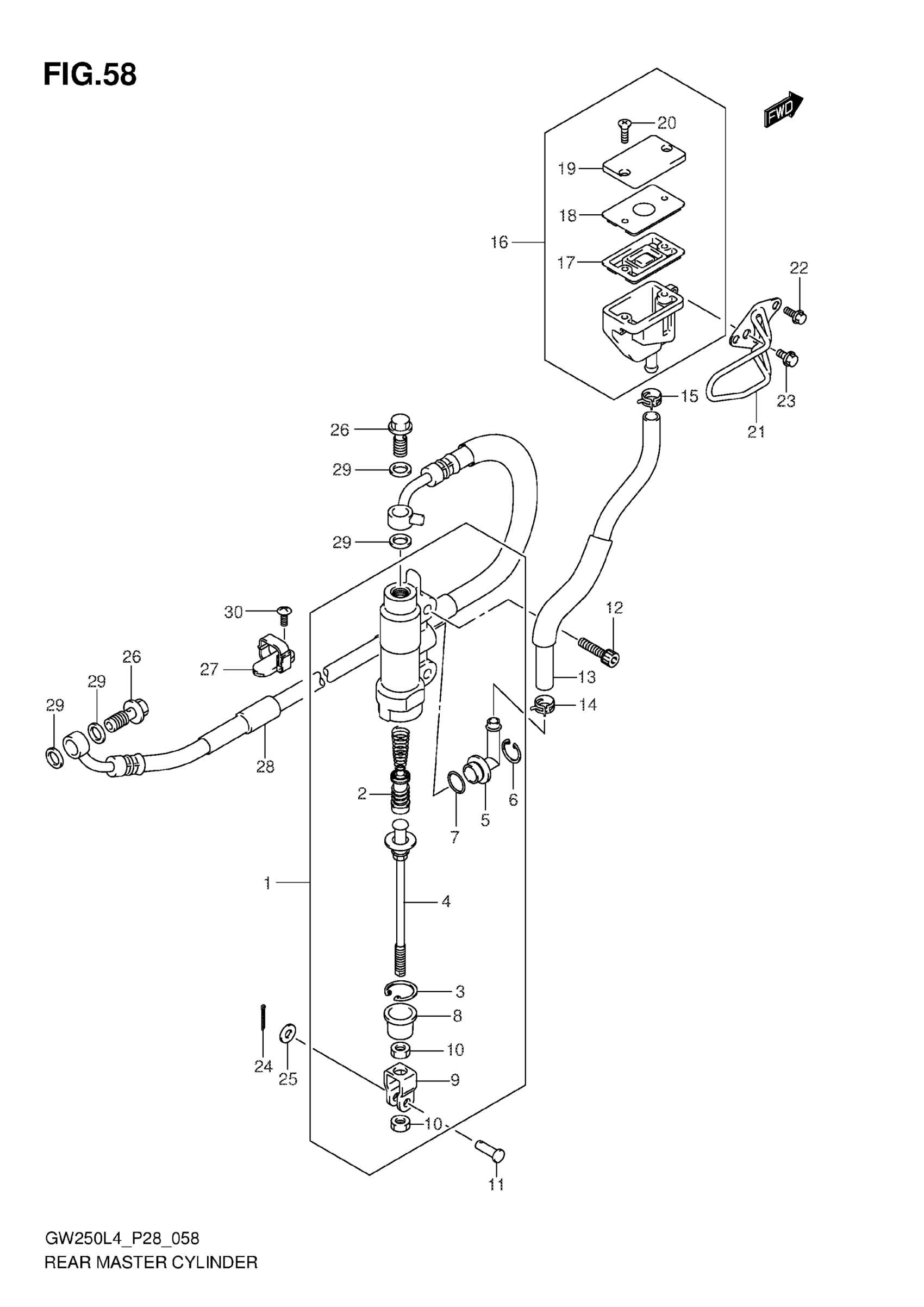

Suzuki GW250L4 (2014) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-48H00

Unavailable

2

PISTON/CUP SET

69600-34810

$56.48

3

CIRCLIP

69665-47H00

$5.02

4

ROD, PUSH

69670-24A00

Unavailable

5

CONNECTOR

69672-00B20

$7.01

6

CIRCLIP

69674-00B20

$3.97

7

O RING

69686-34200

$2.93

8

.BOOT

69691-00A00

$5.30

9

YOKE

69692-44H00

$16.87

10

NUT

69693-05A00

$1.96

11

PIN

69697-48H00

$3.08

12

BOLT

69698-48H00

Unavailable

13

HOSE, REAR RESERVOIR TANK

69730-48H00

Unavailable

14

CLIP,RR RSVR TANK HOSE LWR

69735-48H00

Unavailable

15

CLIP,RR RSVR TANK HOSE UPR

69735-48H10

Unavailable

16

TANK ASSY, REAR RESERVOIR

69740-48H30

Unavailable

17

DIAPHRAGM

59667-04700

$9.78

18

.PLATE,DIAPHRAGM

59668-14F00

$11.60

19

CAP

59669-20H00

$12.70

20

SCREW

69689-48H00

Unavailable

21

GUARD, REAR RESERVOIR TANK

69760-48H10

Unavailable

22

BOLT

01547-0612A

$2.03

23

BOLT

01547-0620A

$2.03

24

PIN

04111-2015A

$1.49

25

WASHER

08322-0106A

$1.84

26

BOLT,BRAKE FLUID

59492-48H00

Unavailable

27

GUIDE,RR BRAKE HOSE

61196-48H00

$3.65

28

HOSE, REAR BRAKE

69480-48H00

Unavailable

29

WASHER,BRAKE FLUID (10X15X1.5

59464-48H00

$2.60

30

SCREW

02142-0616A

$1.49
