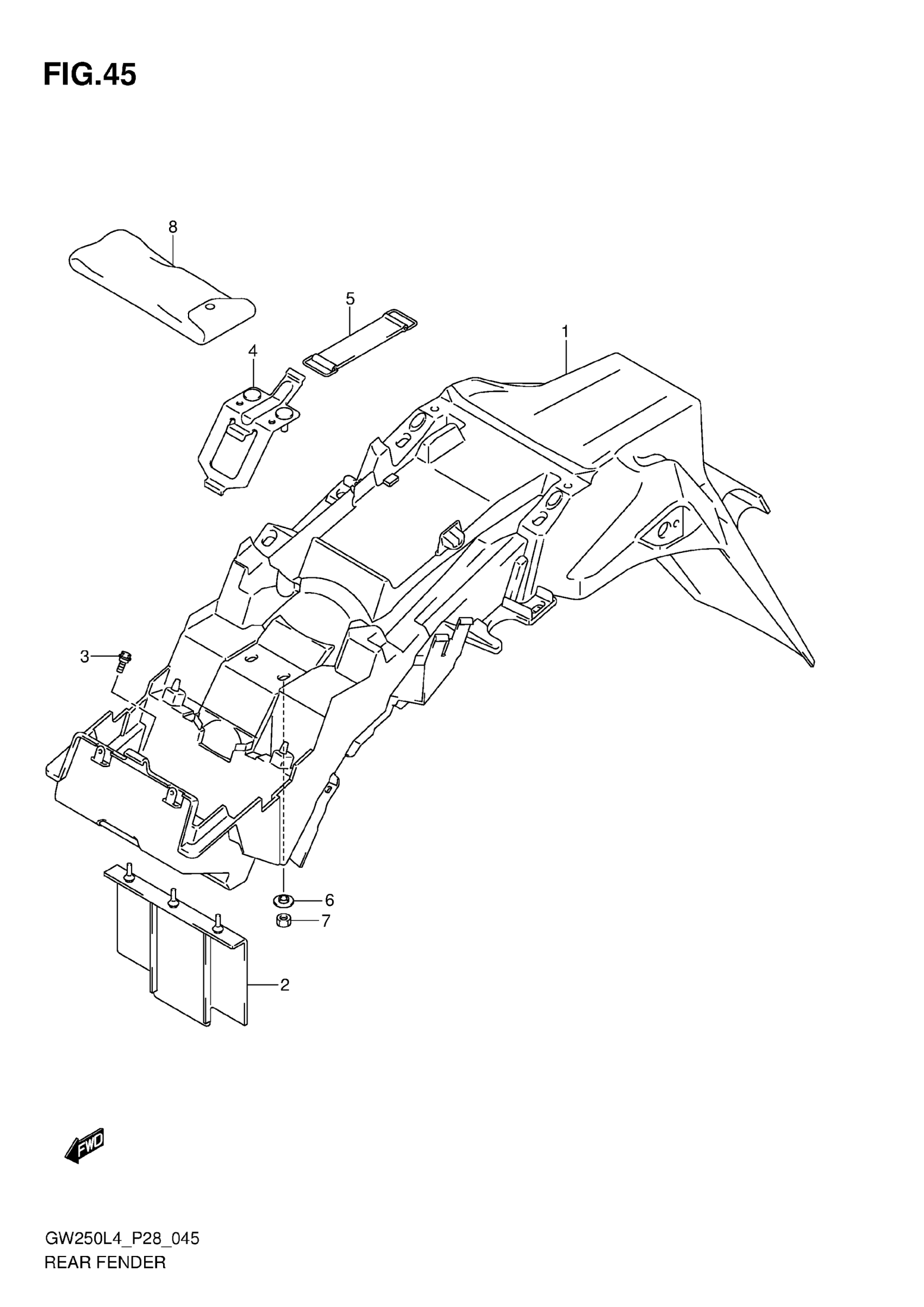

Suzuki GW250L4 (2014) REAR FENDER Diagram

#

Description

Price

1

FENDER, REAR

63111-48H30

Unavailable

2

MUDGUARD, REAR FENDER

63113-48H00

$8.90

3

BOLT (6X12)

09111-06107

$2.60

4

HOLDER, TOOL

41550-48H00

Unavailable

5

BAND, TOOL

47435-48H00

Unavailable

6

WASHER, TOOL HOLDER

47445-48H00

$2.93

7

NUT

08316-1006A

$2.19

8

TOOL ASSY

96510-48H00

Unavailable
