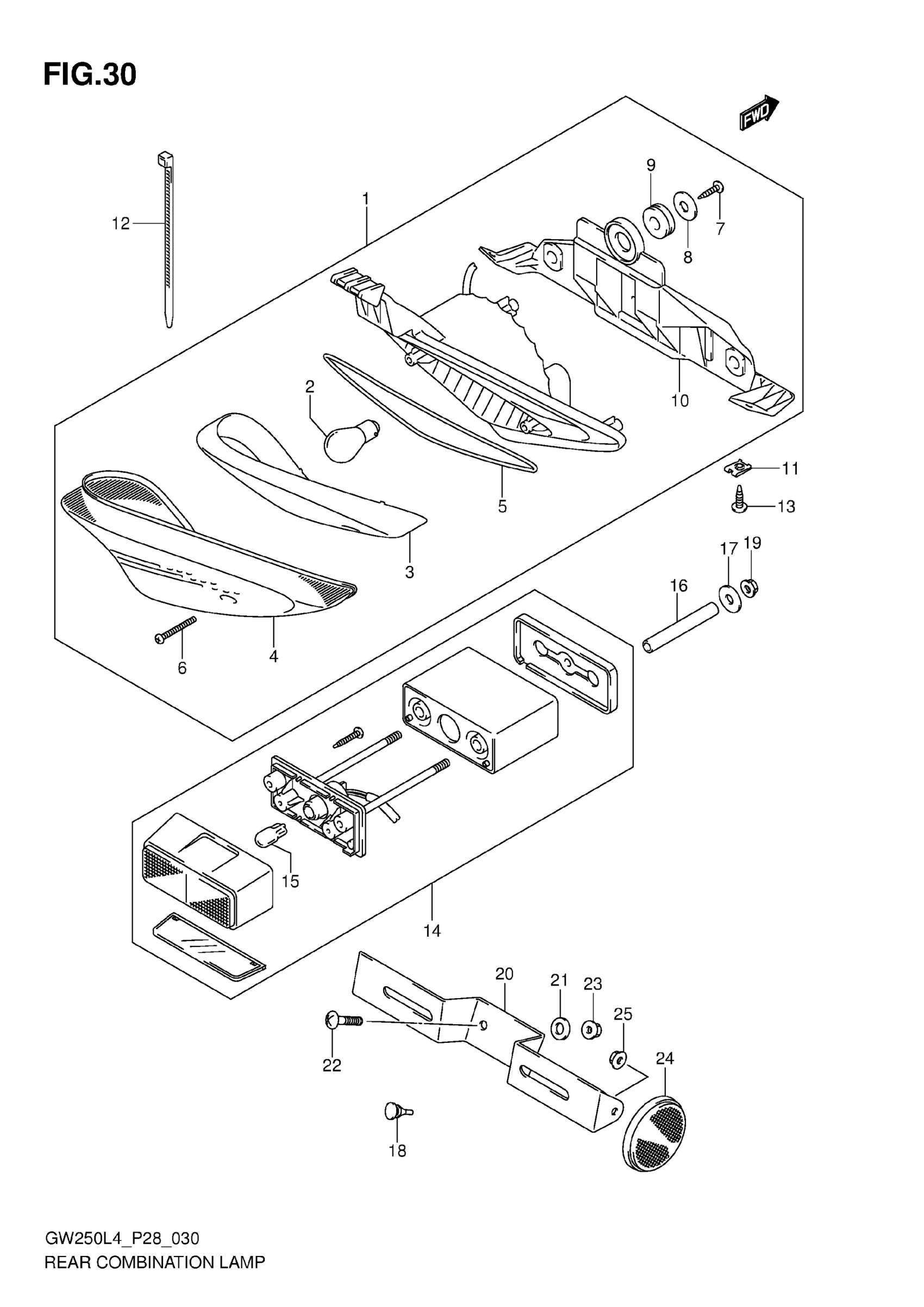

Suzuki GW250L4 (2014) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, REAR COMBINATION

35710-48H01

$72.85

2

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

3

LENS

35732-48H00

$13.48

4

LENS

35712-48H01

Unavailable

5

GASKET

35713-48H00

Unavailable

6

SCREW

03211-0435A

Unavailable

7

SCREW

03241-0514A

Unavailable

8

WASHER

08212-05181

Unavailable

9

CUSHION

35765-48H00

$3.88

10

BRACKET

35726-48H00

Unavailable

11

NUT, REAR LAMP

35157-48H00

Unavailable

12

CLAMP, REAR COMBINATION LAMP

36990-48H20

Unavailable

13

SCREW

03541-0516A

$1.49

14

LAMP ASSY, LICENSE

35910-48H30

Unavailable

15

.BULB (12V5W)

09471-12216

$5.36

16

SPACER,LICENSE LAMP

35996-48H30

$3.08

17

WASHER (6.5X20X1.2)

09160-06077

$1.91

18

CUSHION

35929-48H00

Unavailable

19

NUT

08316-1006A

$2.19

20

BRACKET,LICENSE PLATE

35927-48H30

$8.17

21

WASHER (6.5X16X1.2)

09160-06019

$1.49

22

SCREW

02142-0616A

$1.49

23

NUT

08316-1006A

$2.19

24

REFLECTOR ASSY, REAR SIDE | NINGPO BAIXUEJIA

35950-04HA0

$14.22

24

REFLECTOR ASSY, RR SIDE | TOKAI DENSO

35970-14A20

$15.10

25

NUT

08316-1005A

$2.19
