2014 Suzuki GW250L4 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2014 Suzuki GW250L4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

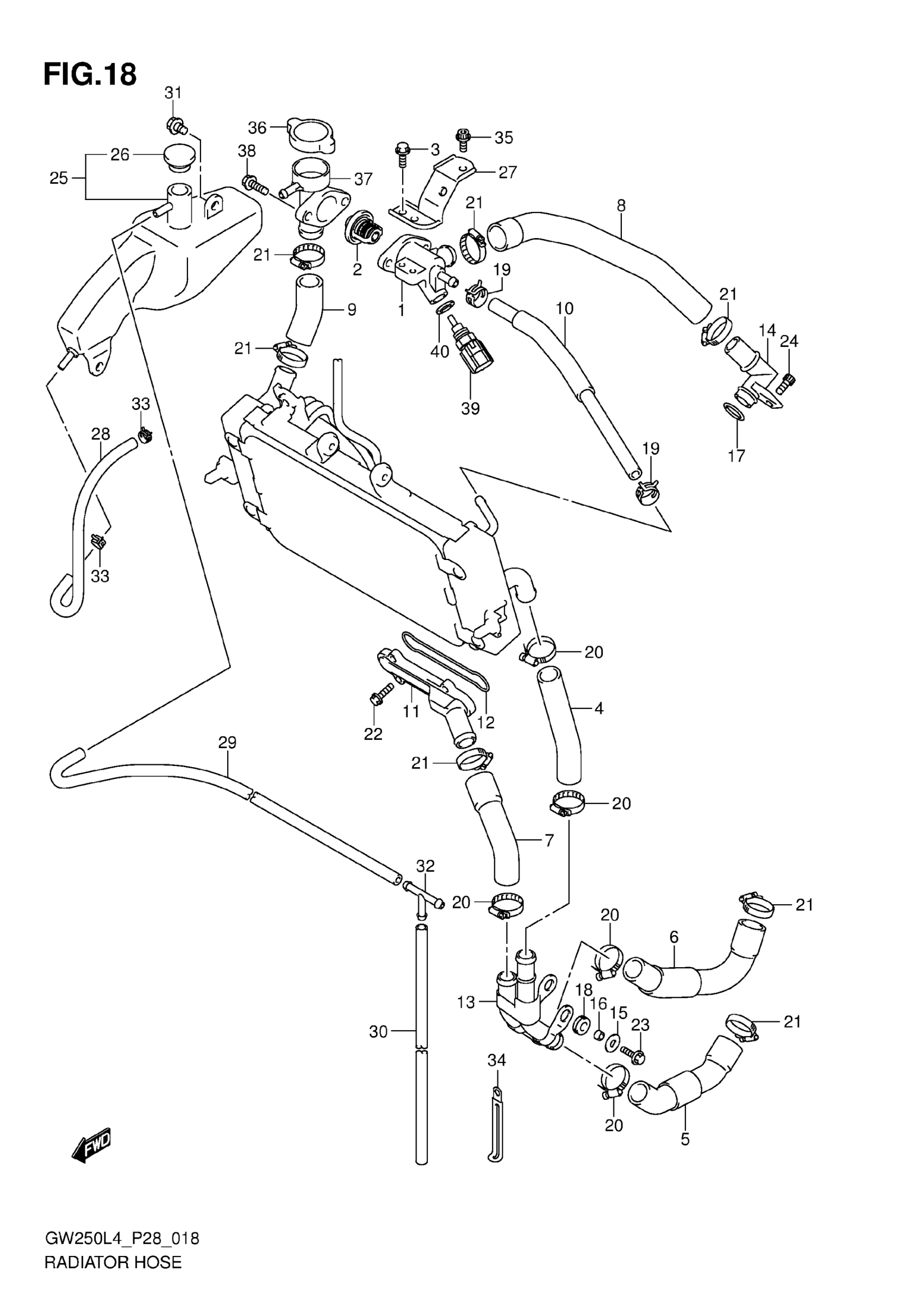

2014 Suzuki GW250L4 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CONNECTOR, THERMOSTAT INLET

17662-48H00

1
Out of stock

2

THERMOSTAT,WATE This part replaces 17670-48H00.

17670-48H01

1
Out of stock

3

BOLT

01550-0616A

2
Out of stock

4

HOSE,RADIATOR OUTLET

17851-48H00

1
Out of stock

5

HOSE,WATER PUMP INLET

17852-48H00

1
Out of stock

6

HOSE, WATER PUMP OUTLET

17853-48H00

1
Out of stock

7

HOSE, CYLINDER CONNECTOR

17854-48H00

1
Out of stock

8

HOSE,THERMOSTAT CONNECTOR

17855-48H00

1
Out of stock

9

HOSE, RADIATOR INLET

17856-48H00

1
Out of stock

10

HOSE, WATER BYPASS

17857-48H00

1
Out of stock

11

CONNECTOR,CYLINDER WATER INLE

17861-48H00

1
Out of stock

12

O-RING

17863-48H00

1
Out of stock

13

PIPE, WATER PUMP

17870-48H00

1
Out of stock

14

PIPE,CYL HEAD OUTLET

17880-48H00

1
Out of stock

15

WASHER (6.5X18X1.0)

09160-06028

2
Out of stock

16

SPACER (6.5X9X5)

09180-06365

2
Out of stock

17

O-RING (D:3.2,ID:17.8)

09280-18011

1
Out of stock

18

CUSHION

09320-08084

2
Out of stock

19

CLIP

09401-12L02

2
Out of stock

20

CLAMP

09402-27L01

5
Out of stock

21

CLAMP

09402-32L01

7
Out of stock

22

BOLT

01547-0620A

4
Out of stock

23

BOLT

01550-0620A

2
Out of stock

24

BOLT

07130-0612A

1
Out of stock

25

TANK ASSY, RESERVOIR

17910-48H00

1
Out of stock

26

CAP, RESERVOIR TANK

17932-12C00

1
Out of stock

27

BRACKET,RESERVOIR TANK

17920-48H00

1
Out of stock

28

HOSE, RESERVOIR TANK INLET | CUT AS REQUIRED

17981-19F00

1
Out of stock

29

HOSE, RESERVOIR TANK OVER FLOW

17900-44810

1
Out of stock

30

HOSE, FUEL TANK WATER DRAIN

17985-48H00

1
Out of stock

31

BOLT (6X12)

09111-06085

2
Out of stock

32

3 WAY

09367-08005

1
Out of stock

33

CLIP

09401-08L01

2
Out of stock

34

CLAMP (L:80)

09404-06208

1
Out of stock

35

BOLT

07120-0612A

2
Out of stock

36

CAP, RADIATOR 1.1

17730-48H00

1
Out of stock

37

CONDUCTION,RADI This part replaces 17791-48H00.

17791-48H01

1
Out of stock

38

BOLT

01550-0620A

2
Out of stock

39

SENSOR, WATER TEMP

13650-49X00

1
Out of stock

40

GASKET,TEMP SENSOR (12X17X1)

13651-48H00

1
Out of stock
