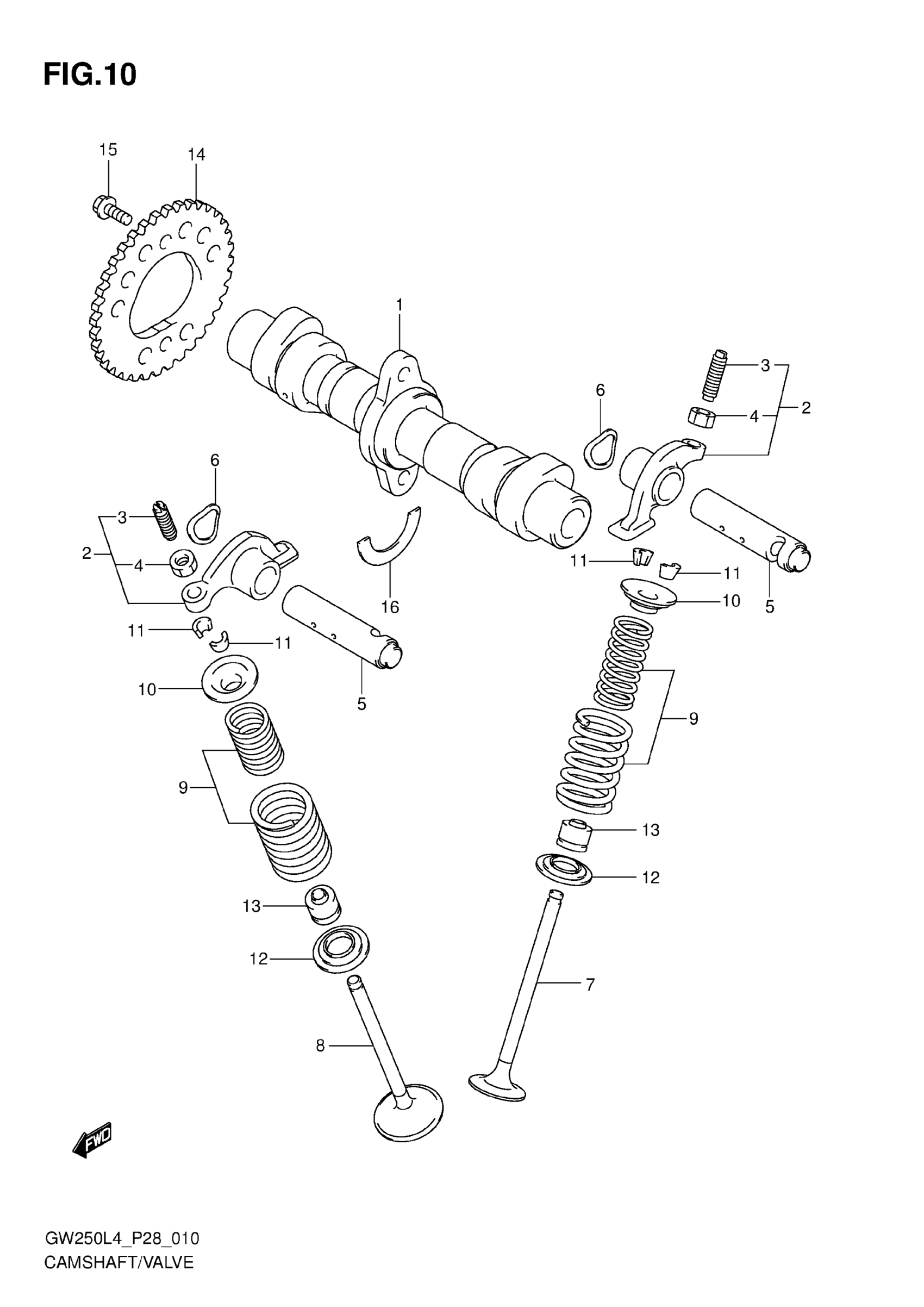

Suzuki GW250L4 (2014) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-48H00

Unavailable

2

ARM, VALVE ROCKER

12840-20H10

$29.23

3

SCREW, TAPPET ADJUSTING

12842-49220

Unavailable

4

NUT, TAPPET ADJUSTING

12843-27A10

Unavailable

5

SHAFT,VALVE ROCKER ARM

12861-48H00

$9.83

6

WASHER

09164-12018

$1.41

7

VALVE, INTAKE

12911-20H10

$19.03

8

VALVE, EXHAUST

12912-20H10

$30.96

9

SPRING SET, VALVE

12920-48H00

$22.47

10

RETAINER,VALVE SPRING

12931-27A30

Unavailable

11

COTTER,VALVE This part replaces 12932-27A10.

12932-36H00

$1.43

12

SEAT,VALVE SPRING

12933-81410

Unavailable

13

OIL SEAL (5X10X8)

09289-05016

Unavailable

14

SPROCKET,CAMSHAFT (NT:38)

12741-48H00

$15.40

15

BOLT (6X12.5)

09111-06027

$1.87

16

C-RING

09390-22002

$2.33
