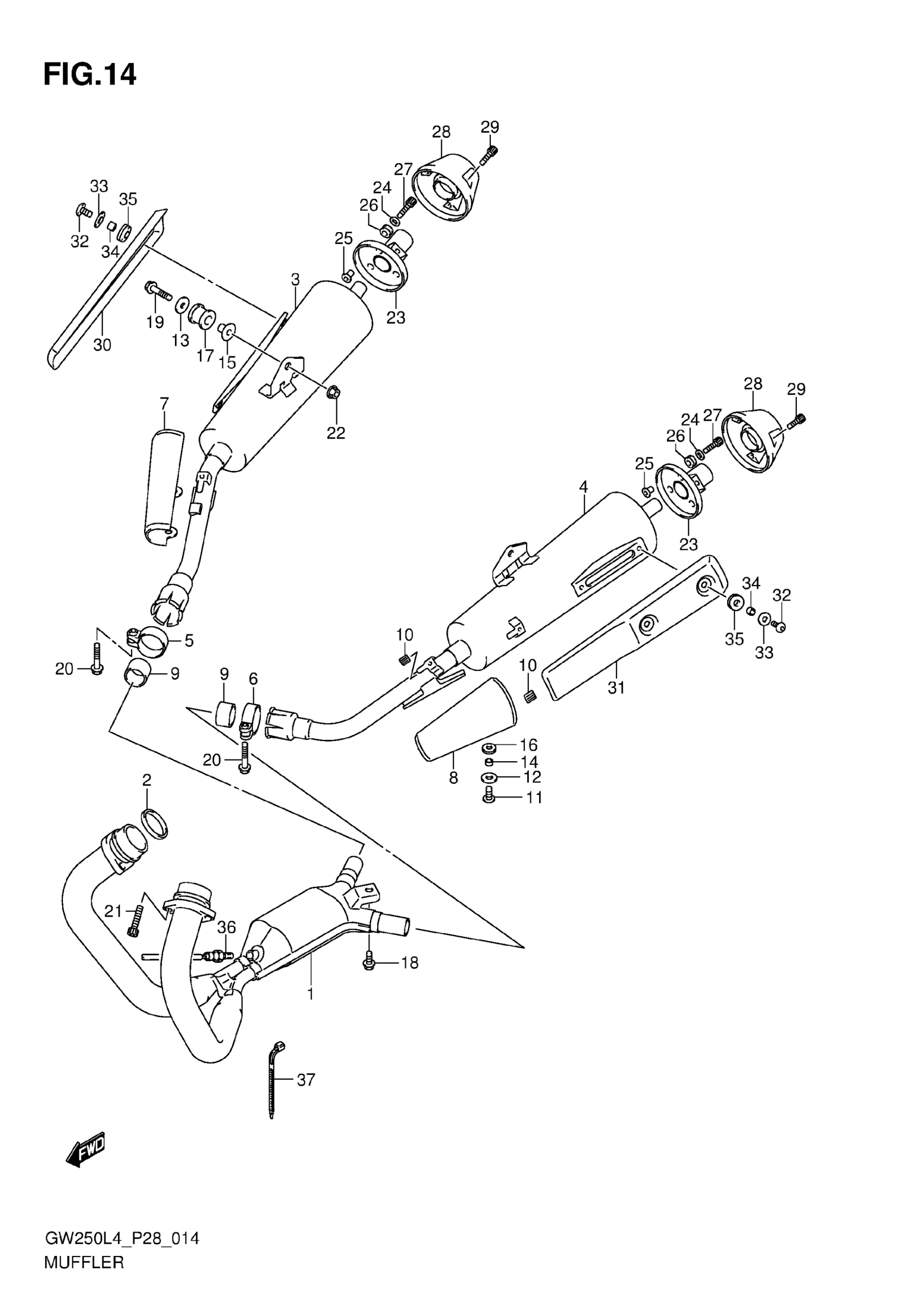

Suzuki GW250L4 (2014) MUFFLER Diagram

#

Description
Price

1

EXHAUST

14100-48H00

Unavailable

2

GASKET, EXHAUST PIPE

14181-46E20

$6.58

3

MUFFLER, RH This part replaces 14305-48H01.

14305-48H02

$424.50

4

MUFFLER, LH This part replaces 14306-48H02.

14306-48H03

$424.50

5

CLAMP, MUFFLER CONNECTOR RH

14459-48H00

Unavailable

6

CLAMP, MUFFLER CONNECTOR LH

14469-48H00

$4.50

7

COVER, MUFFLER FRONT RH

14750-48H00

Unavailable

8

COVER, MUFFLER FRONT LH

14760-48H00

Unavailable

9

CONNECTOR, JOINT

14771-38F10

$18.17

10

GROMMET

14795-10FA0

$5.58

11

SCREW (6X16)

09139-06030

$3.70

12

WASHER (6.5X18.0X1.0)

09160-06164

$1.49

13

WASHER (8.5X30X1.6)

09160-08149

$2.97

14

SPACER (6.5X9X5)

09180-06365

$1.49

15

SPACER

09180-08L02

$2.53

16

CUSHION

09320-08082

$8.22

17

CUSHION

09320-12L04

$1.49

18

BOLT (8X16)

01550-0816A

$2.32

19

BOLT

01550-0840A

$3.05

20

BOLT

01550-0840A

$3.05

21

BOLT

07130-0830A

$1.74

22

NUT

08316-1008A

$2.45

23

STAY, MUFFLER REAR COVER

14770-48H01

$19.25

24

WASHER (6.5X18X1.0)

09160-06028

$1.49

25

SPACER (6.2X8.4X10.9)

09180-06331

$4.77

26

CUSHION

09320-08068

Unavailable

27

BOLT

07130-0620A

$2.50

28

COVER, MUFFLER REAR (GRAY)

14790-48H01-YYK

Unavailable

29

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

30

COVER, MUFFLER BODY RH

14781-48H00

$75.10

31

COVER, MUFFLER BODY LH

14730-48H00

$75.10

32

SCREW (6X16)

09139-06030

$3.70

33

WASHER (6.5X18.0X1.0)

09160-06164

$1.49

34

SPACER (6.5X9X5)

09180-06365

$1.49

35

CUSHION

09320-08082

$8.22

36

SENSOR, OXYGEN

18213-23H01

$395.90

37

CLAMP, OXYGEN SENSOR LEAD

36990-32G20

$2.45
