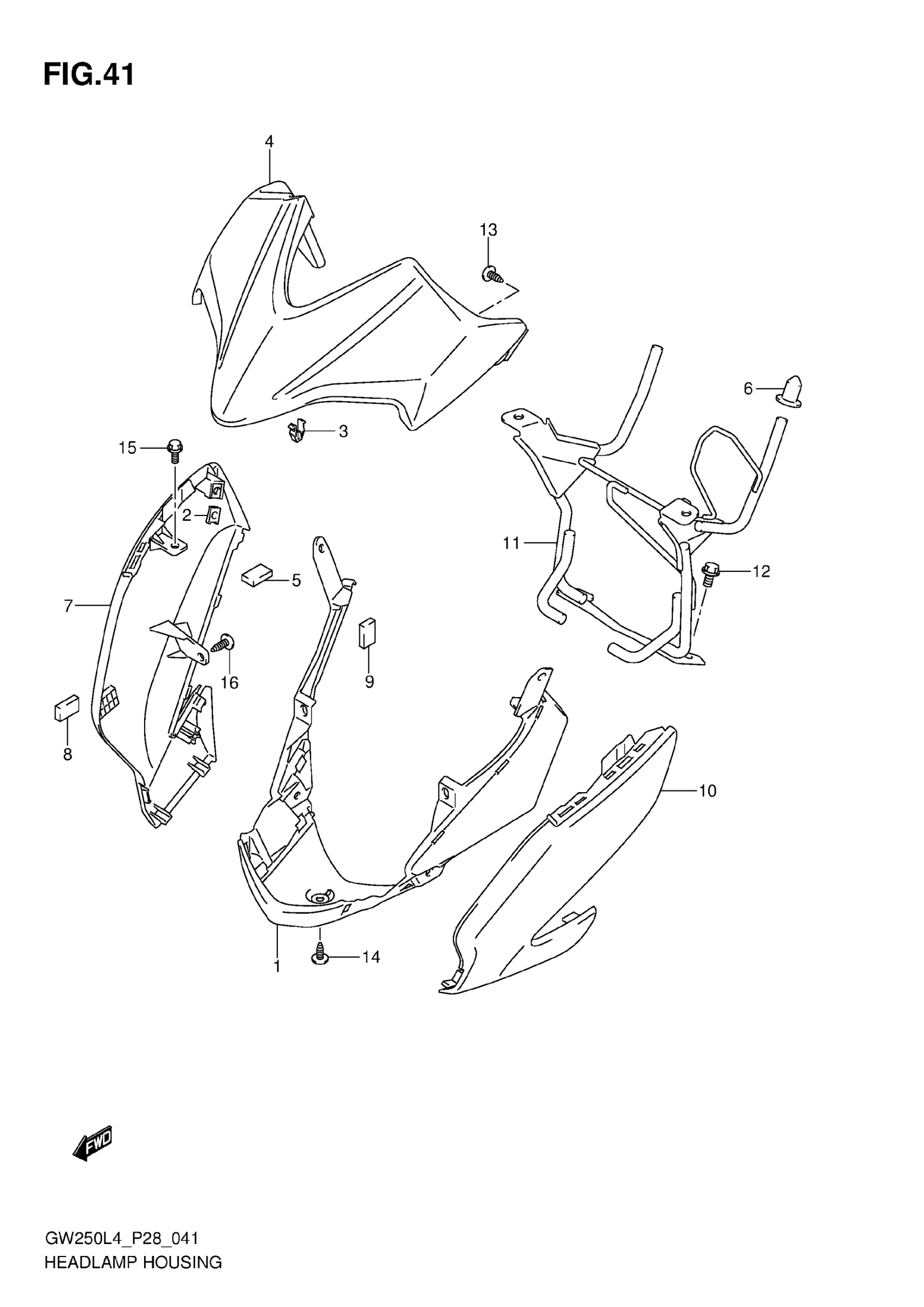

Suzuki GW250L4 (2014) HEADLAMP HOUSING Diagram

#

Description
Price

1

COVER, HEADLAMP LOWER (SILVER/BLACK)

51811-48H00-FJA

$98.86

2

NUT, HEADLAMP SIDE

35157-48H00

Unavailable

3

CLIP, HEADLAMP UPPER

48291-32GH0

$3.05

4

COVER, HEADLAMP UPPER (BLACK)

51821-48H01-YAY

$60.92

5

CUSHION, HEADLAMP UPPER

51822-48H00

$2.35

6

CUSHION,BRACE This part replaces 51827-48H00.

51827-48H01

$2.40

7

COVER, HEADLAMP SIDE RH (BLACK)

51831-48H00-YAY

$44.75

7

COVER, HEADLAMP SIDE RH (RED)

51831-48H00-PDD

Unavailable

8

CUSHION, HEADLAMP SIDE

51832-48H00

$3.05

9

CUSHION, HEADLAMP LOWER

51832-48H00

$3.05

10

COVER, HEADLAMP SIDE LH (BLACK)

51841-48H00-YAY

$44.75

10

COVER, HEADLAMP SIDE LH (RED)

51841-48H00-PDD

$82.71

11

BRACE, HEADLAMP HOUSING

51850-48H00

$28.97

12

BOLT

01550-0612B

$2.38

13

SCREW

03541-0516B

$1.77

14

SCREW

03541-0516B

$1.77

15

SCREW

03541-0516B

$1.77

16

SCREW

03541-0520A

$1.81
