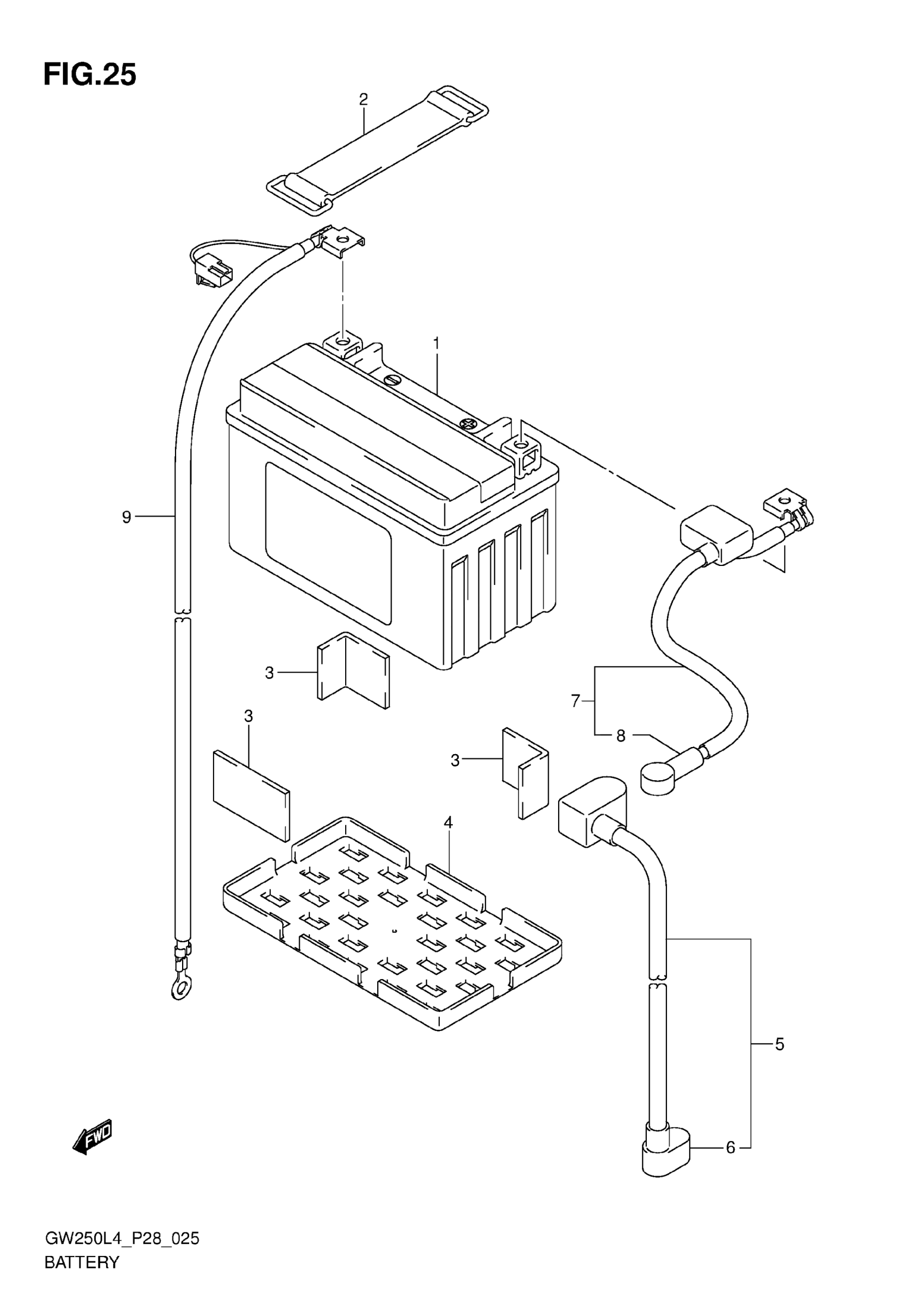

Suzuki GW250L4 (2014) BATTERY Diagram

#

Description

Price

1

BATTERY ASSY (12V,8AH) This part replaces 33610-32C10.

33610-33E20

$143.93

2

BAND, BATTERY

33651-48H00

$6.08

3

PROTECTOR, BATTERY

33652-48H00

$2.17

4

PROTECTOR,BATTERY

33652-48H10

Unavailable

5

WIRE, STARTER MOTOR LEAD

33810-48H00

Unavailable

6

CAP, STARTER MOTOR RELAY

31861-48H00

Unavailable

7

WIRE, BATTERY PLUS LEAD

33820-48H00

Unavailable

8

CAP, STARTER MOTOR RELAY

31861-48H10

Unavailable

9

WIRE, BATTERY MINUS LEAD

33860-48H00

Unavailable
