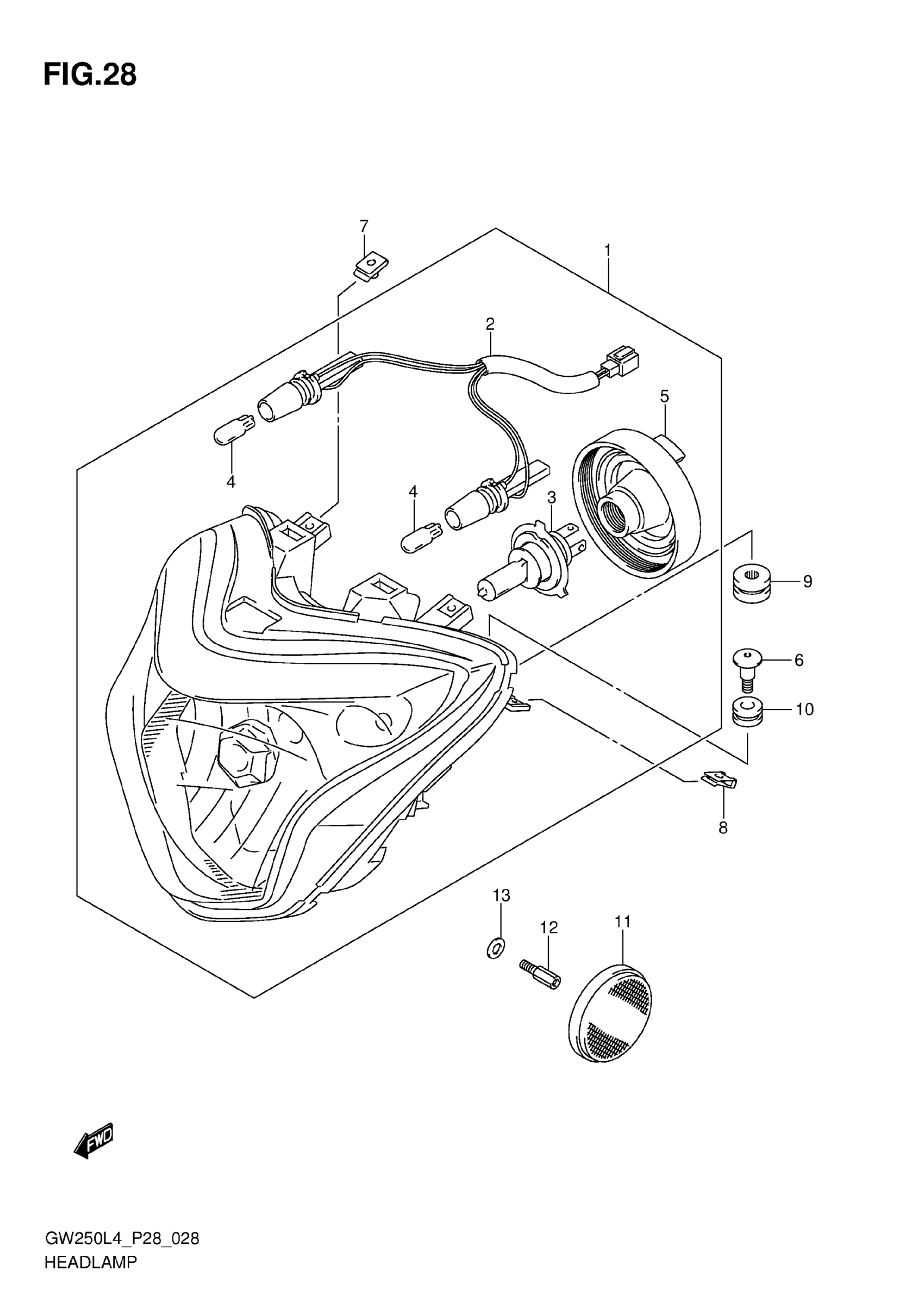

Suzuki GW250L4 (2014) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY This part replaces 35100-48H30.

35100-48H31

$204.47

2

CORD ASSY

36118-48H01

Unavailable

3

BULB (12V,60/55W)

09471-12060

$25.15

4

.BULB (12V5W)

09471-12216

$5.36

5

CAP

35179-48H00

$8.38

6

SCREW, HEADLAMP

35151-48H00

Unavailable

7

NUT, HEADLAMP

35155-48H00

$2.93

8

NUT, HEADLAMP

35157-48H00

Unavailable

9

CUSHION, HEADLAMP

35382-48H00

Unavailable

10

CUSHION, HEADLAMP

35382-48H10

Unavailable

11

REFLEX REFLECTOR ASSY, FR SIDE | NINGPO BAIXUEJIA

35950-04H50

$14.22

11

REFLEX REFLECTOR ASSY, FR SID | TOKAI DENSO

35950-14A11

$15.23

12

BOLT (6X18)

09119-06119

$4.03

13

WASHER

08322-0106A

$1.84
