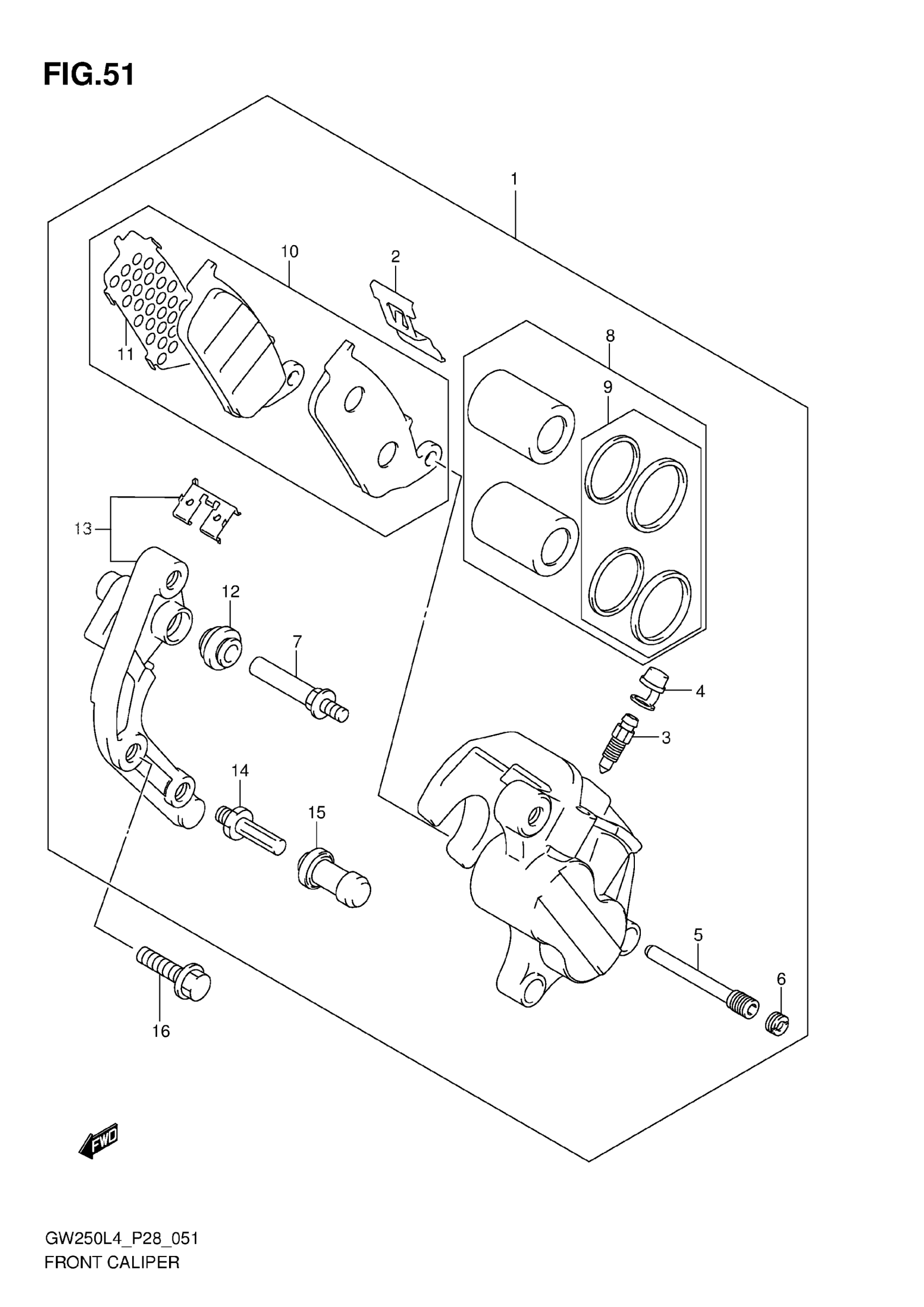

Suzuki GW250L4 (2014) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT LH

59300-48H10

Unavailable

2

SPRING, PAD

59115-21E10

$14.72

3

BLEEDER

59121-01A00

$8.73

4

CAP, BLEEDER

59122-01A00

$4.34

5

PIN, HANGER

59145-21E10

$21.57

6

PLUG, PIN

59146-21E10

$6.15

7

PIN

59187-21E10

$26.73

8

PISTON SET

59300-48820

$108.35

9

SEAL SET, PISTON

59300-13820

$18.77

10

.PAD SIM SET This part replaces 59301-48811.

59300-48830

$70.90

11

SHIM

59113-48H00

Unavailable

12

BOOT

59303-14500

$5.52

13

BRACKET

59350-48H00

$53.77

14

PIN

59382-14500

$8.95

15

BOOT

59386-13A00

$7.95

16

BOLT

01550-0830A

$3.04
