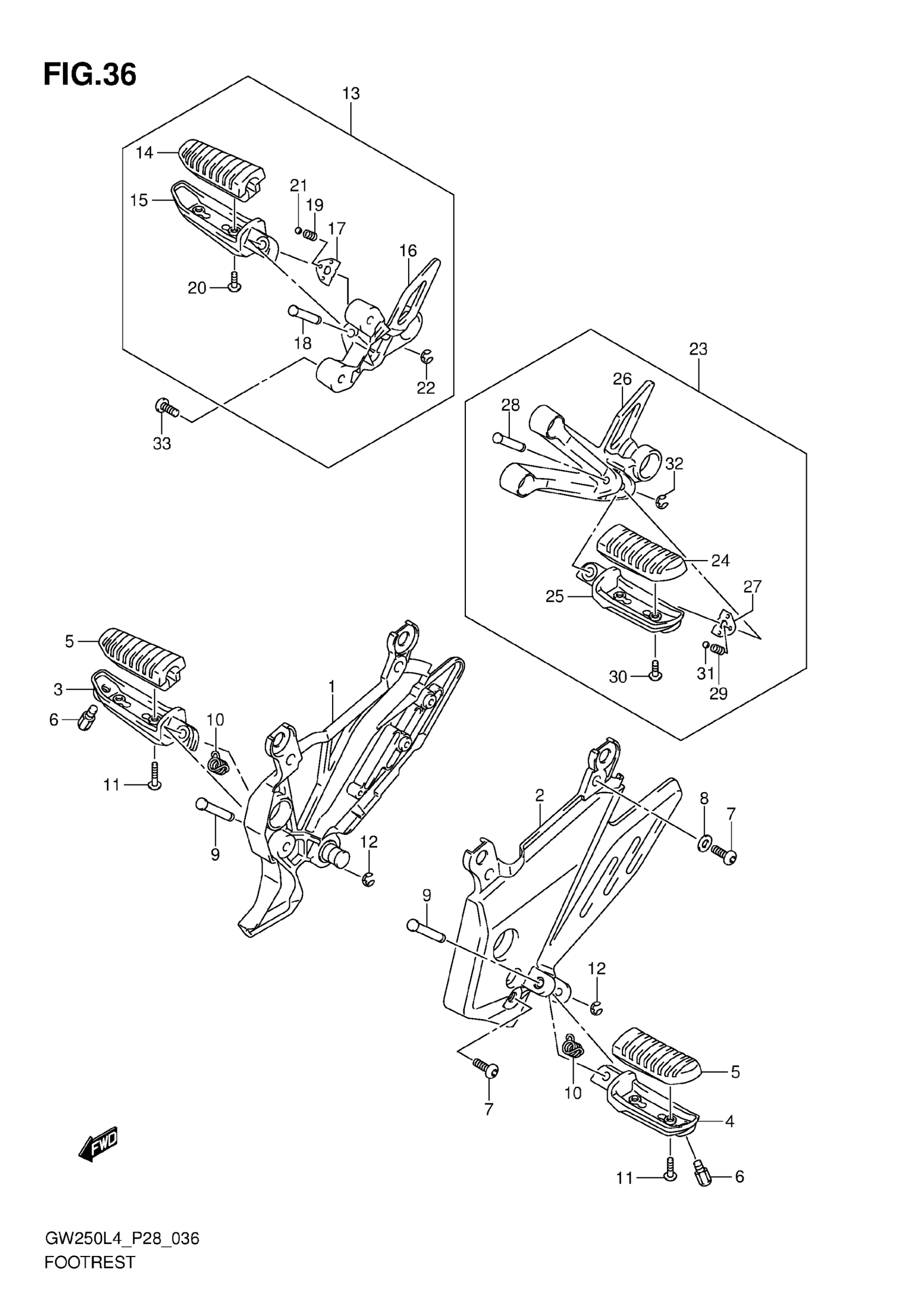

Suzuki GW250L4 (2014) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST RH This part replaces 43510-48H00.

43510-48H10

$143.97

2

BRACKET, FOOTREST LH This part replaces 43521-48H00.

43521-48H10

$137.72

3

BAR,FR FOOTREST,R

43511-44G10

$47.20

4

BAR,FR FOOTREST,L

43521-44G10

$47.20

5

RUBBER, FOOTREST

43550-44G20

$32.98

6

BOLT,BANK SENSOR

43576-48H00

$2.97

7

BOLT (8X20)

09106-08194

$4.18

8

WASHER (9X19X1.0)

09160-09015

$2.38

9

PIN

09208-08022

Unavailable

10

SPRING

09448-16033

$1.49

11

SCREW

02142-0512A

$1.49

12

E RING

08332-1106A

$1.49

13

FOOTREST ASSY, PILLION RH

43600-48H00

Unavailable

14

RUBBER, FOOTREST

43550-44G00

$35.55

15

BAR, PILLION FOOTREST RH

43611-44G00

$54.83

16

BRACKET, PILLION FOOTREST RH

43811-48H00

$72.28

17

PLATE,PILLION FOOTREST

43816-01H10

$7.85

18

PIN

09208-08021

$1.57

19

SPRING

09440-05003

$1.49

20

SCREW

02142-0512A

$1.49

21

BALL

06111-07004

$1.49

22

E RING

08332-1106A

$1.49

23

FOOTREST ASSY, PILLION LH

43700-48H00

Unavailable

24

RUBBER, FOOTREST

43550-44G00

$35.55

25

BAR, PILLION FOOTREST LH

43621-44G00

$54.83

26

BRACKET,PILLION This part replaces 43821-48H00.

43821-48H10

$64.82

27

PLATE,PILLION FOOTREST

43816-01H10

$7.85

28

PIN

09208-08021

$1.57

29

SPRING

09440-05003

$1.49

30

SCREW

02142-0512A

$1.49

31

BALL

06111-07004

$1.49

32

E RING

08332-1106A

$1.49

33

BOLT (8X23)

09106-08150

$3.42
