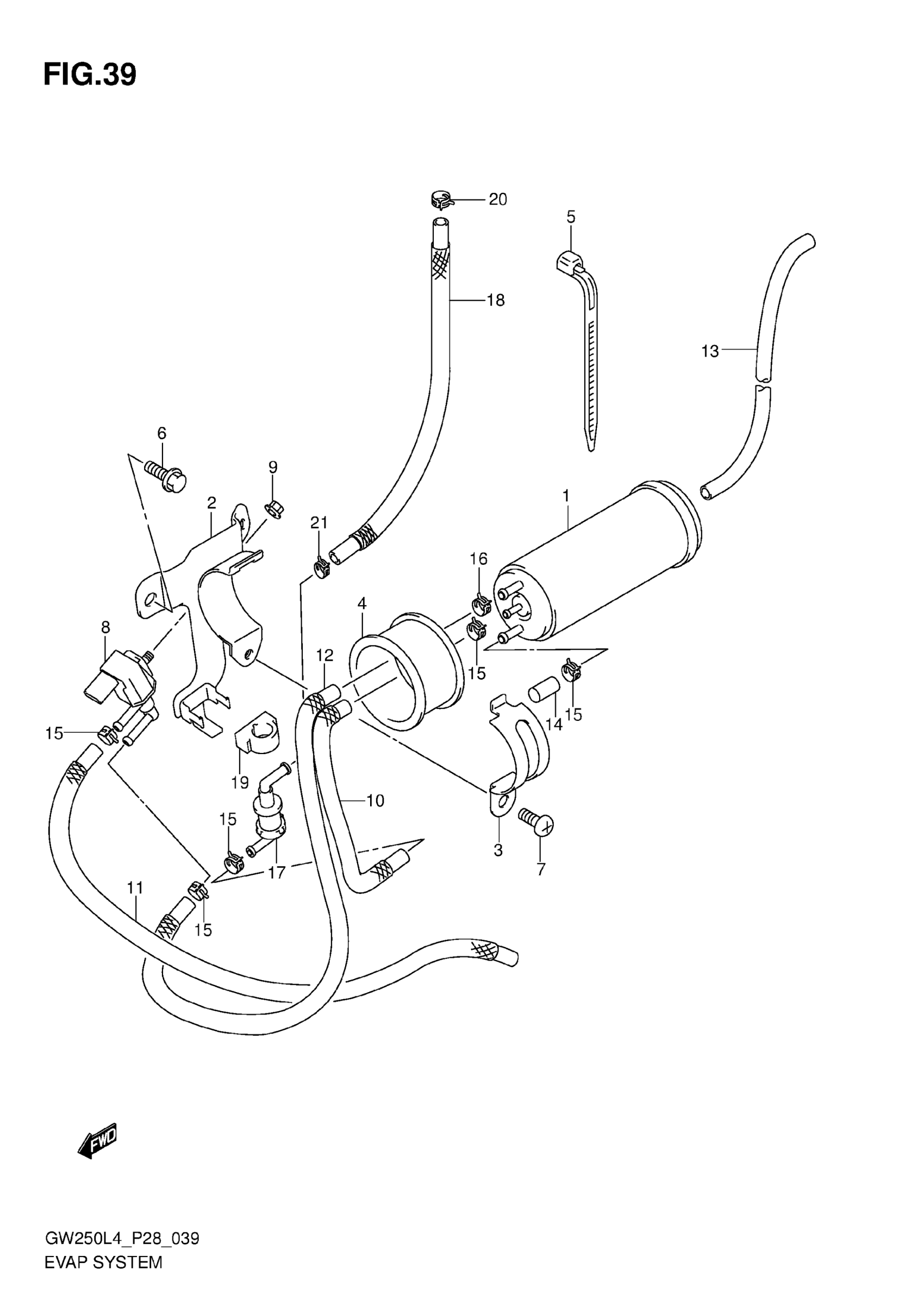

Suzuki GW250L4 (2014) EVAP SYSTEM Diagram

#

Description
Price

1

CANISTER ASSY, CHARCOAL

18560-48H10

Unavailable

2

BRACKET,CANISTER

18570-48H00

Unavailable

3

HOLDER,CANISTER

18578-48H00

Unavailable

4

CUSHION CANISTER

44883-26E00

Unavailable

5

CLAMP (L:165)

09407-18402

$2.19

6

BOLT

01547-0616A

$2.03

7

SCREW

02142-0610A

$1.49

8

VALVE,CANISTER PURGE

18117-52G10

$151.17

9

NUT

08316-1006A

$2.19

10

HOSE, CANISTER INLET

18561-48H10

Unavailable

11

HOSE, PURGE VALVE

18563-48H10

Unavailable

12

HOSE, CANISTER PURGE

18562-48H10

Unavailable

13

HOSE, CANISTER AIR

18567-48H01

Unavailable

14

CAP

09251-07L01

$2.70

15

CLIP

09401-10L01

Unavailable

16

CLIP

09401-12L04

Unavailable

17

VALVE,FUEL TANK BREATHER

44240-13H00

$41.12

18

HOSE, TANK & BRTHR VALVE

44434-48H10

Unavailable

19

CUSHION, FUEL TANK BRTHR VALVE

44894-48H00

Unavailable

20

CLIP

09401-10L01

Unavailable

21

CLIP

09401-10L01

Unavailable
