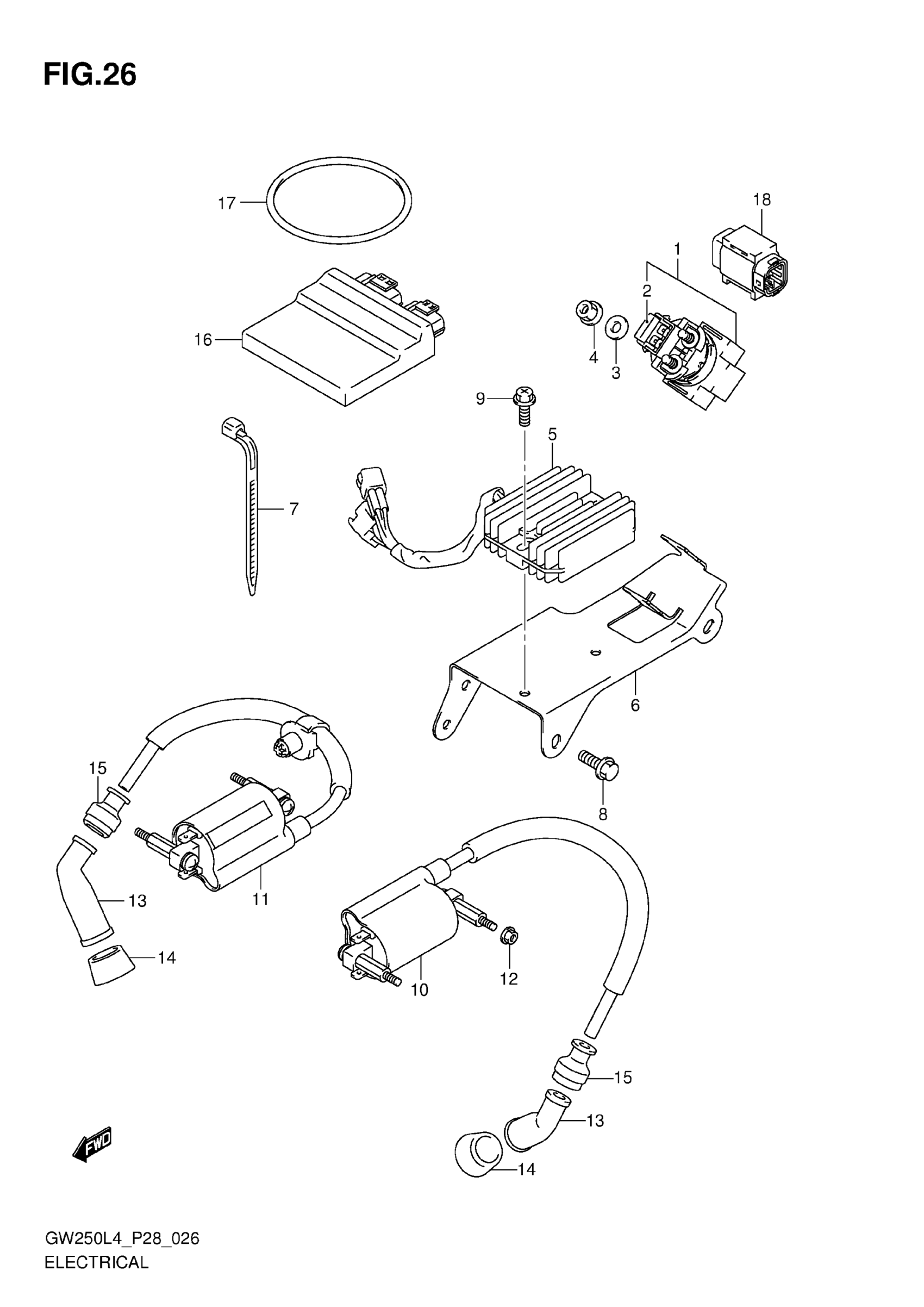

Suzuki GW250L4 (2014) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-48H00.

31800-48H01

$39.70

2

FUSE (30A)

09481-30101

$2.26

3

WASHER (7.5X13X1)

09160-07019

Unavailable

4

NUT

08361-3506A

$1.80

5

RECTIFIER ASSY

32800-48H00

$142.12

6

BRACKET, RECTIFIER FITTING

32830-48H10

$6.03

7

CLAMP, RECTIFIER LEAD

36990-32G10

$2.45

8

BOLT

01550-0612A

$1.97

9

BOLT

02162-0625A

$1.78

10

COIL ASSY,IGNIT This part replaces 33410-48H00.

33410-48H01

$13.23

11

COIL ASSY,IGNIT This part replaces 33420-48H00.

33420-48H01

$12.80

12

NUT

08316-1005B

$2.50

13

CAP,SPARK PLUG

33510-48H00

$5.80

14

SEAL,SPARK PLUG This part replaces 33541-48H00.

33541-48H01

$3.55

15

SEAL, HIGH TENSION CORD This part replaces 33542-48H00.

33542-48H01

$4.37

16

CONTROL UNIT, FI This part replaces 32920-48H60.

32920-48H61

$872.28

17

BAND,TOOL This part replaces 32925-48H00.

47435-20K00

$8.93

18

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92
