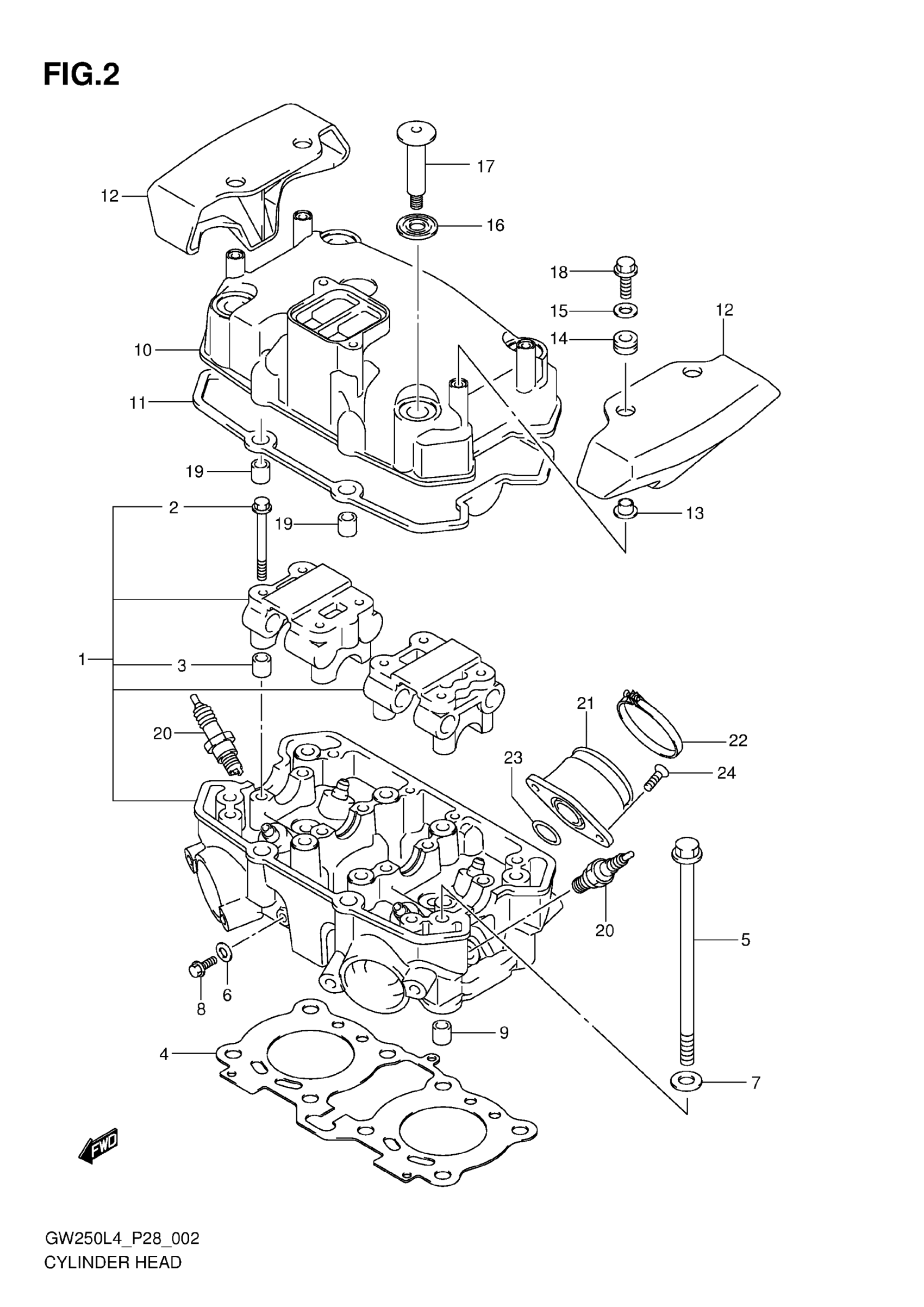

Suzuki GW250L4 (2014) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-48H00

Unavailable

2

BOLT (6X60)

09103-06220

$2.47

3

PIN (8X11)

09206-08011

Unavailable

4

GASKET, CYLINDER HEAD

11141-48H00

$36.05

5

BOLT (8X165)

09103-08449

$7.67

6

GASKET (5.8X13X1.8)

09168-06L04

Unavailable

7

GASKET (8.5X17X2.3)

09168-08036

Unavailable

8

BOLT

01550-0612A

$1.97

9

PIN

04211-11129

$1.76

10

COVER, CYLINDER HEAD

11171-48H00

Unavailable

11

GASKET, CYLINDER HEAD COVER

11173-48H00

$15.43

12

CAP, CYLINDER HEAD COVER

11174-48H00

$25.39

13

SPACER, HEAD COVER CAP

11177-48H00

$2.70

14

CUSHION, HEAD COVER CAP

11181-48H00

Unavailable

15

WASHER (6.5X20X1.2)

09160-06077

$1.91

16

WASHER, CYLINDER HEAD COVER

11191-27E60

$2.22

17

BOLT (7X57)

09106-07022

$9.10

18

BOLT

01547-0620A

$2.03

19

PIN

04211-11129

$1.76

20

SPARK PLUG (CR7E) | NGK

09482-00516

$6.47

20

SPARK PLUG (U22ESR-N) | DENSO

09482-00515

$5.97

21

PIPE,INTAKE This part replaces 13110-48H00.

13110-48H01

$11.42

22

CLAMP,INTAKE PIPE

13170-48H00

$5.30

23

O RING (D:2.3,ID:29.7)

09280-30L01

$3.72

24

SCREW

02122-0616A

$1.49
