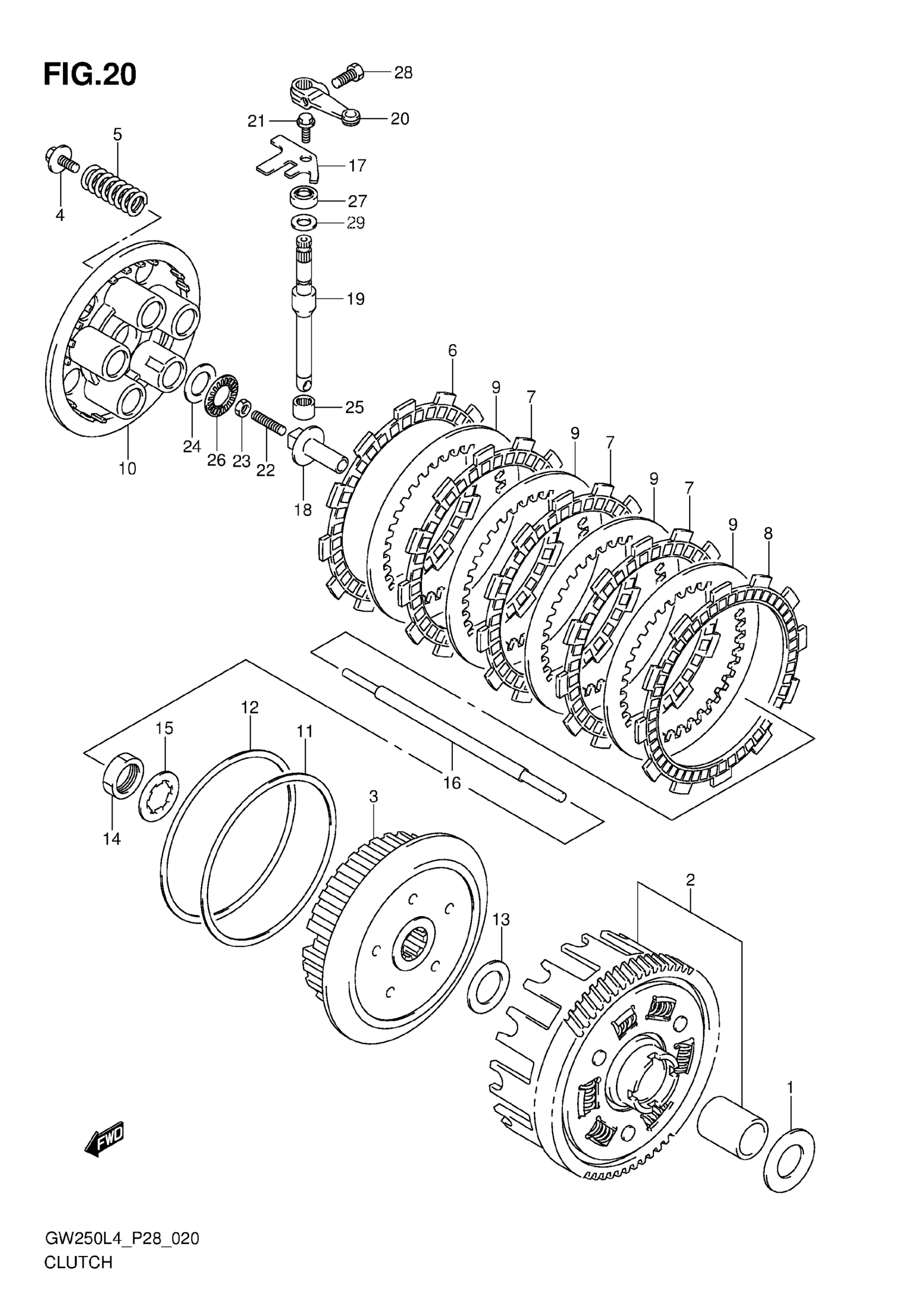

Suzuki GW250L4 (2014) CLUTCH Diagram

#

Description
Price

1

WASHER

08211-22363

$4.00

2

GEAR ASSY, PRIMARY DRIVEN (NT:68)

21200-48880

$248.20

3

HUB,CLUTCH SLEEVE

21411-48H00

$42.22

4

BOLT,CLUTCH SPRING

21412-48H00

$2.70

5

SPRING, CLUTCH

21413-48H00

$4.67

6

PLATE, CLUTCH DRIVE NO.1 (T:3.0)

21441-48H00

$47.60

7

PLATE, CLUTCH DRIVE NO.2 (T:3.0)

21441-48H10

$40.72

8

PLATE, CLUTCH DRIVE NO.3 (T:3.5)

21442-48H00

$47.90

9

PLATE,CLUTCH DRIVEN (T:2.0)

21451-48H00

$8.17

10

DISC,CLUTCH PRESSURE

21462-48H00

$23.60

11

SEAT,WAVE WASHER

21471-48H00

$8.25

12

WASHER, CLUTCH SLEEVE HUB WAVE

21472-48H00

$9.82

13

WASHER,THRUST

21252-48H00

$4.52

14

NUT

09140-22005

$3.87

15

WASHER

09167-22029

$1.49

16

ROD,CLUTCH PUSH

23110-48H00

$10.22

17

RETAINER,CL RLSE OIL SEAL

23117-48H00

$3.00

18

PIECE,CLUTCH PUSH

23121-48H00

Unavailable

19

CAMSHAFT, CLUTCH RELEASE

23122-48H02

Unavailable

20

ARM,CLUTCH RELEASE

23271-48H00

Unavailable

21

BOLT (6X12)

09103-06233

$2.11

22

SCREW

09134-06018

Unavailable

23

NUT

09140-06023

$2.06

24

WASHER (15.5X28X1)

09160-15045

$3.89

25

BEARING (10X14X10) This part replaces 09263-10L01.

09263-10023

$7.22

26

BEARING (15X28X2)

09263-15L01

$8.15

27

OIL SEAL

09285-10L01

$4.18

28

BOLT

01500-0616A

$1.78

29

WASHER (12.5X17X1)

09160-12119

$1.86
