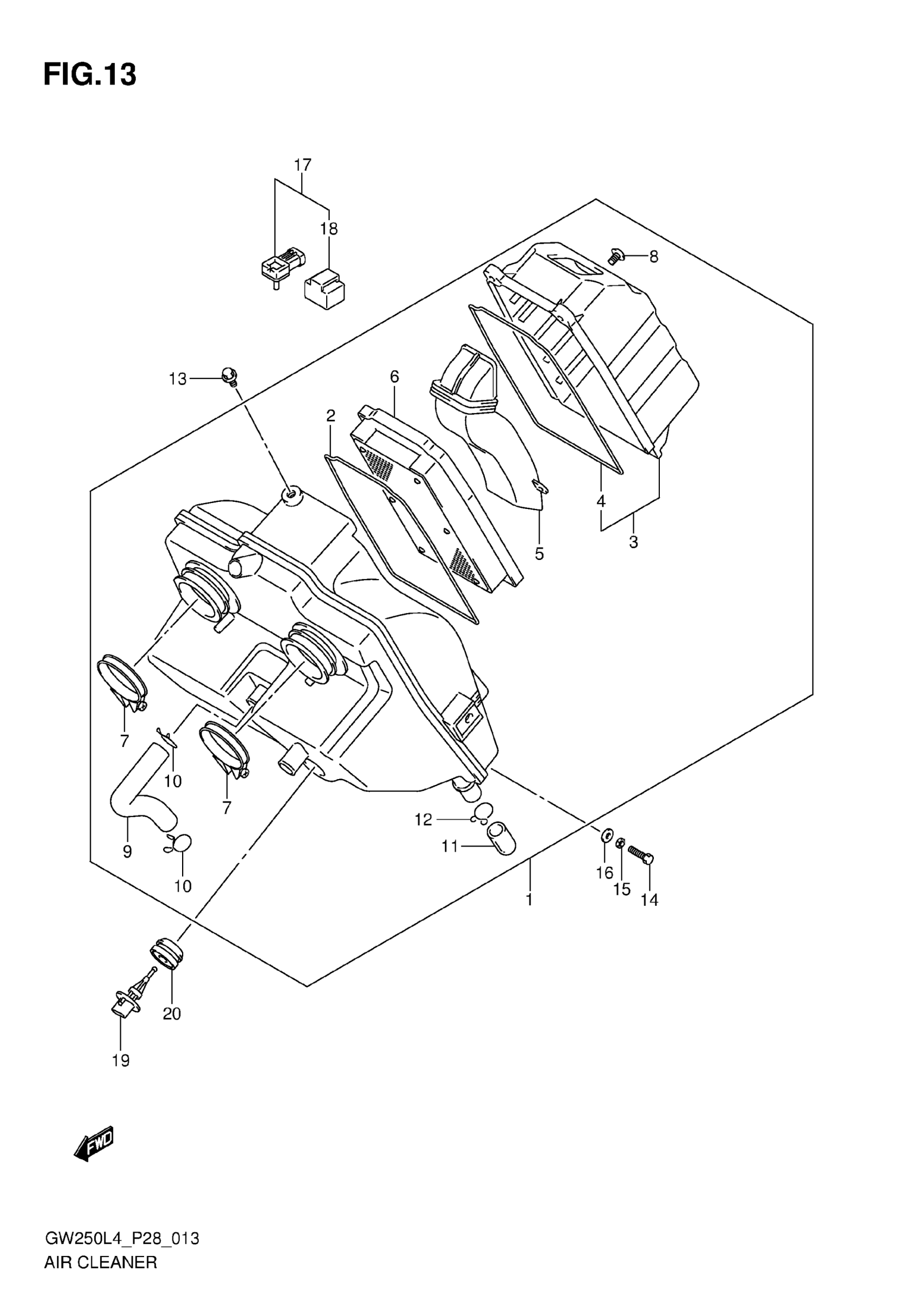

Suzuki GW250L4 (2014) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR

13700-48H01

$149.00

2

.GASKET,AIR CLEANER This part replaces 13746-48H00.

13746-48H01

$4.65

3

CAP, AIR CLEANER

13740-48H00

Unavailable

4

.GASKET,AIR CLEANER This part replaces 13746-48H00.

13746-48H01

$4.65

5

TUBE, INLET

13891-48H00

Unavailable

6

.FILTER ASSY This part replaces 13780-48H00.

13780-48H01

$16.52

7

CLAMP

13826-48H00

$6.03

8

SCREW

02142-0512A

$1.49

9

TUBE, BREATHER

13853-48H00

Unavailable

10

CLIP

09401-15101

$2.26

11

.PLUG,DRAIN This part replaces 13878-48H00.

13878-48H01

$2.53

12

CLIP

09401-14101

$2.34

13

BOLT

01550-0610A

$1.97

14

BOLT

01500-0620A

$1.78

15

WASHER

08321-0106A

$1.84

16

WASHER (6.5X20X1.2)

09160-06077

$1.91

17

SENSOR, BOOST

15630-29G20

$283.88

18

COVER

15625-29G10

Unavailable

19

SENSOR, AIR TEMP

13650-52G00

$107.20

20

.GROMMET,AIR TEMP SENSOR This part replaces 13655-77E00.

13655-77E10

$3.85
