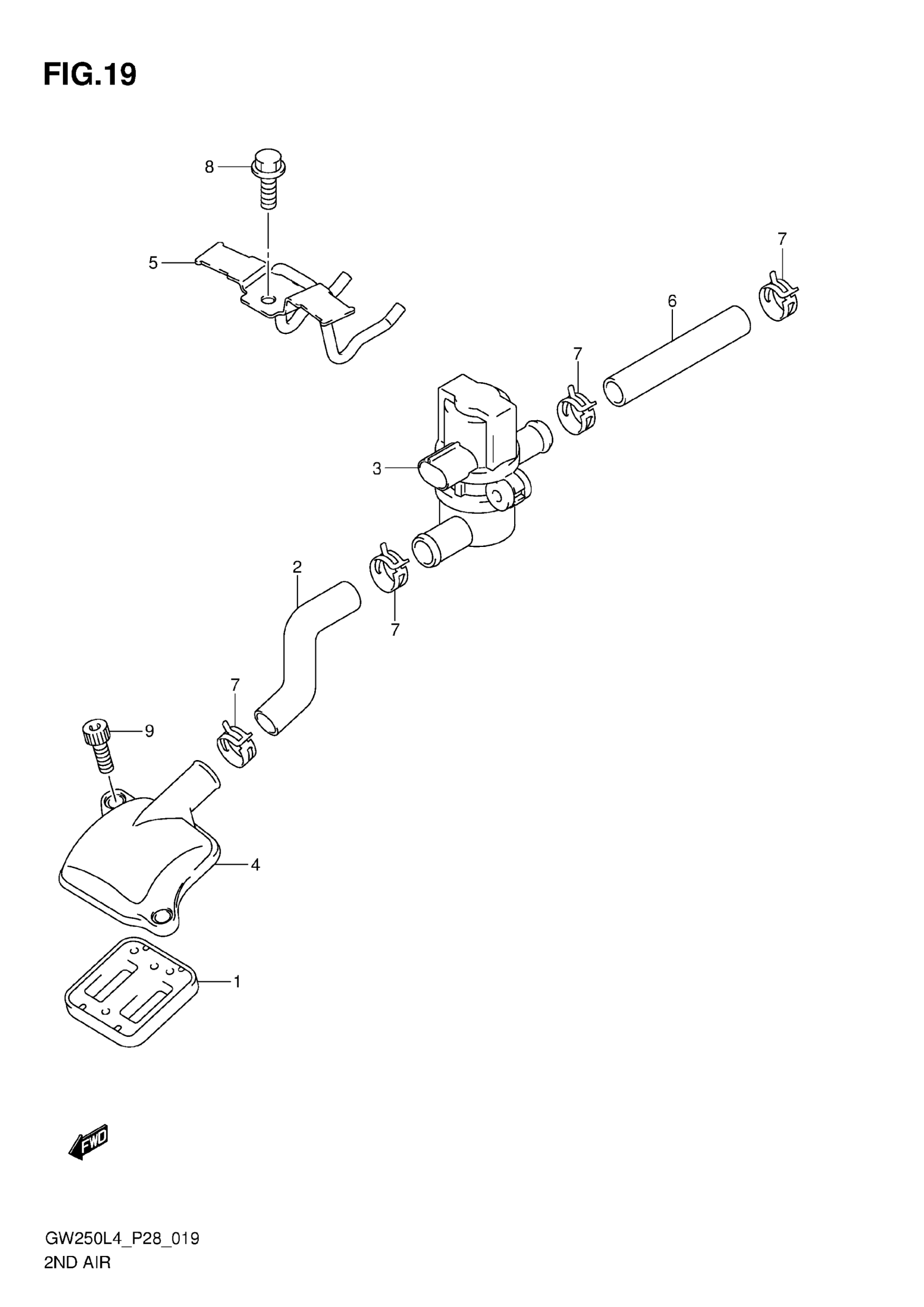

Suzuki GW250L4 (2014) 2ND AIR Diagram

#

Description

Price

1

VALVE ASSY, 2ND AIR REED

18450-48H00

Unavailable

2

HOSE,2ND AIR VALVE

18461-48H00

Unavailable

3

VALVE ASSY,AIR CUT

18510-48H00

Unavailable

4

COVER,2ND AIR REED VALVE

18531-48H00

Unavailable

5

BRACKET, 2ND AIR VALVE

18610-48H00

Unavailable

6

HOSE,2ND AIR CLEANER

18711-48H00

Unavailable

7

CLIP

09401-17L02

$2.30

8

BOLT

01550-0612A

$1.97

9

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39
