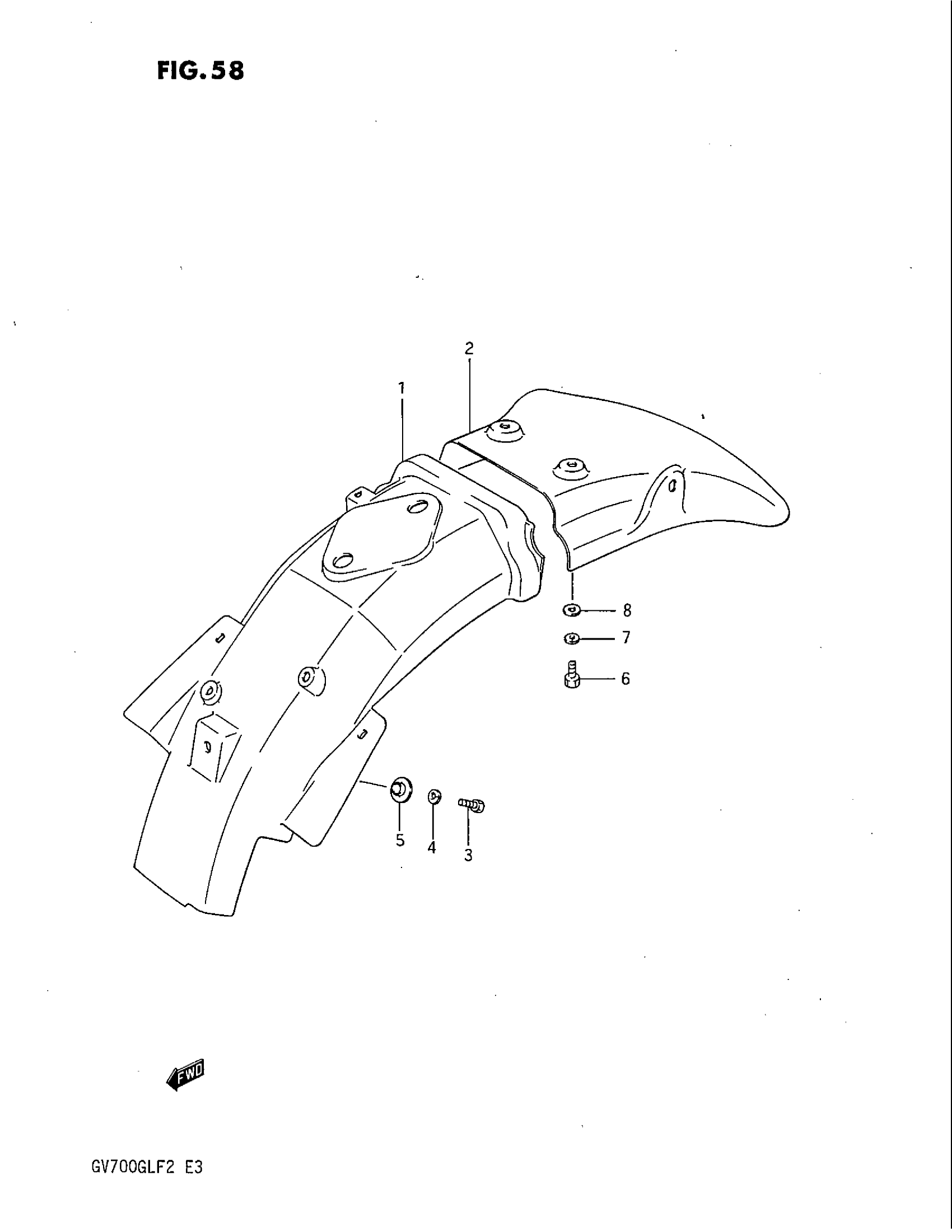

Suzuki GV700GL (1985) REAR FENDER Diagram

#

Description

Price

1

BODY, REAR FENDER, FRONT

63112-05A10

Unavailable

2

FENDER, REAR

63110-07A00

Unavailable

3

BOLT This part replaces 01107-06166.

01500-0616A

$1.77

4

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

5

WASHER

09169-06016

$1.50

6

BOLT This part replaces 01107-06126.

01500-0612A

$1.80

7

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

8

.WASHER This part replaces 08322-21066.

08322-0106B

$2.24
