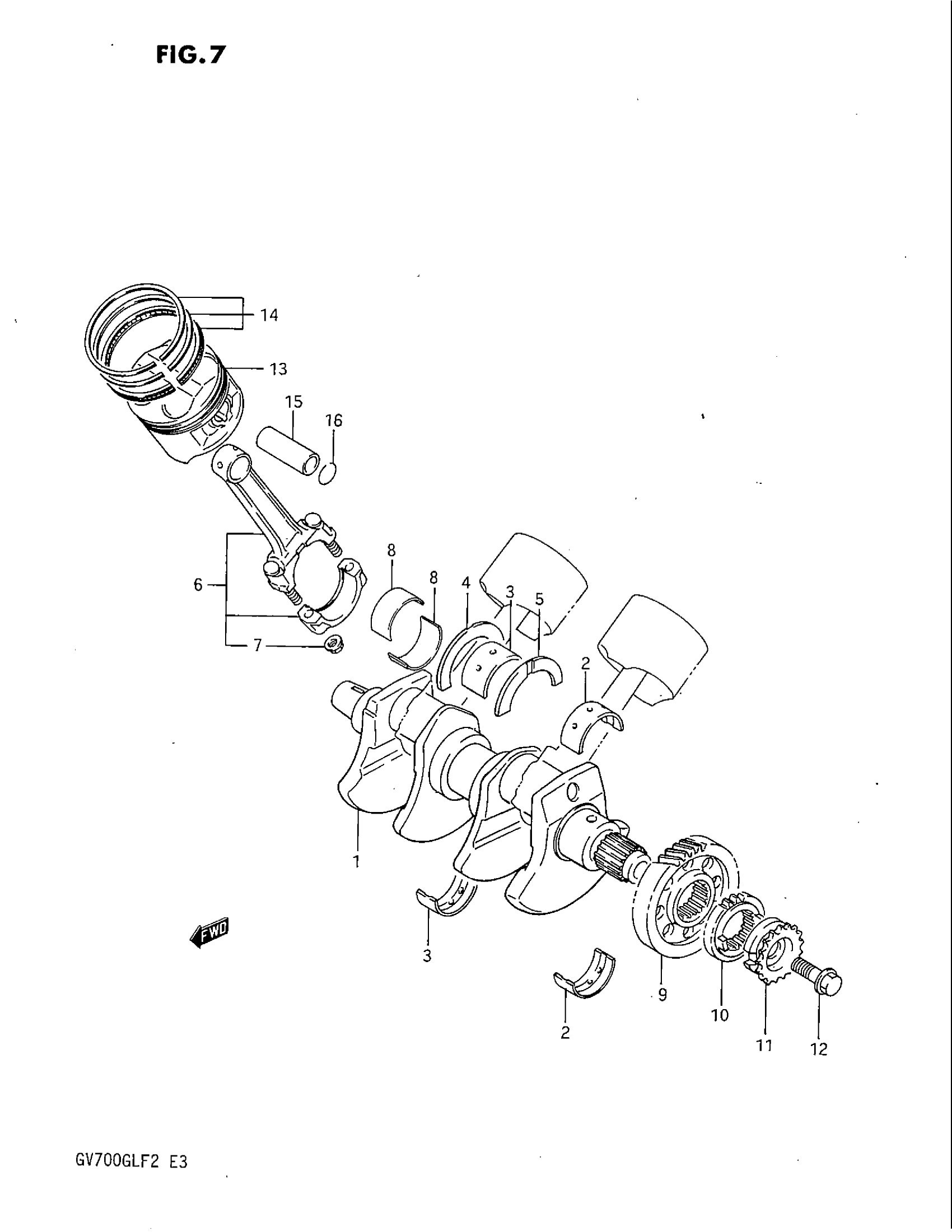

Find the part on the Crankshaft diagram for your 1985 Suzuki GV700GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1985 Suzuki GV700GL Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT

12220-07A01

1
Out of stock

2

BEARING, CRANK, R,L (GREEN)

12229-05A00-0A0

4
Out of stock

2

BEARING, CRANK, R,L (BLACK)

12229-05A00-0B0

4
Out of stock

2

BEARING, CRANK, R,L (BROWN)

12229-05A00-0C0

4
Out of stock

2

BEARING, CRANK, R,L (YELLOW)

12229-05A00-0D0

4
Out of stock

3

BEARING, CRANK, MDL (GREEN)

12229-05A10-0A0

2
Out of stock

3

BEARING, CRANK, MDL (BLACK)

12229-05A10-0B0

2
Out of stock

3

BEARING, CRANK, MDL (BROWN)

12229-05A10-0C0

2
Out of stock

3

BEARING, CRANK, MDL (YELLOW)

12229-05A10-0D0

2
Out of stock

4

BEARING, THRUST, R

12228-05A00-0D0

1
Out of stock

5

BEARING, THRUST, L (RED)

12228-05A00-0A0

1
Out of stock

5

BEARING, THRUST, L (BLACK)

12228-05A00-0B0

1
Out of stock

5

BEARING, THRUST, L (BLUE)

12228-05A00-0C0

1
Out of stock

5

BEARING, THRUST, L (GREEN)

12228-05A00-0D0

1
Out of stock

5

BEARING, THRUST, L (YELLOW)

12228-05A00-0E0

1
Out of stock

5

BEARING, THRUST, L (WHITE)

12228-05A00-0F0

1
Out of stock

6

ROD ASSY, CONNECTING | Includes Item(s) 7

12160-07A02

4
Out of stock

7

NUT

09159-08033

8
Out of stock

8

BEARING, CRANK PIN (GREEN)

12164-07A01-0A0

8
Out of stock

8

BEARING, CRANK PIN (BLACK)

12164-07A01-0B0

8
Out of stock

8

BEARING, CRANK PIN (BROWN)

12164-07A01-0C0

8
Out of stock

8

BEARING, CRANK PIN (YELLOW)

12164-07A01-0D0

8
Out of stock

9

NO DESCRIPTION AVAILABLE This part replaces 21111-07A01.

21111-07A02

1
Out of stock

10

SPROCKET, CHAIN DRIVE IDLER

12744-05A00

1
Out of stock

11

SPROCKET, WATER PUMP DRIVE

17531-05A01

1
Out of stock

12

BOLT

09100-12030

1
Out of stock

13

PISTON (STD)

12111-07A03

4
Out of stock

13

PISTON (OS:0.5) | OPT

12111-07A03-050

4
Out of stock

13

PISTON (OS:1.0) | OPT

12111-07A03-100

4
Out of stock

14

RING SET, PISTON (STD)

12140-07A21

4
Out of stock

14

RING SET, PISTON (OS:0.5) | OPT

12140-07A21-050

4
Out of stock

14

RING SET, PISTON (OS:1.0) | OPT

12140-07A21-100

4
Out of stock

15

PIN, PISTON

12151-31302

4
Out of stock

16

CIRCLIP This part replaces 09381-18003.

09381-18005

8
Out of stock
