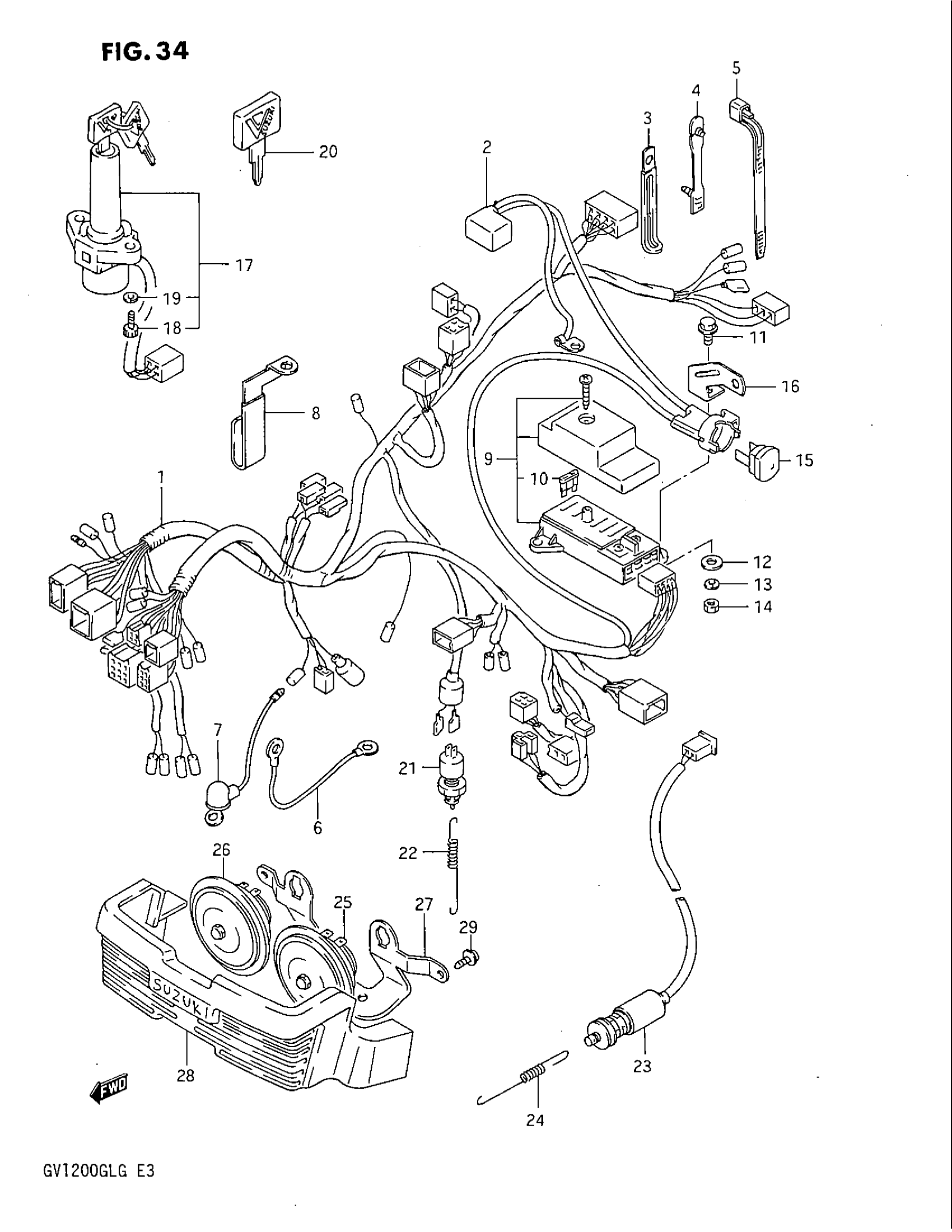

Suzuki GV1200GLF (1986) WIRING HARNESS Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 36610-05A01.

36610-05A02

Unavailable

2

CAP, BATTERY (+) TERMINAL

33624-05A00

$5.72

3

CLAMP This part replaces 09404-06402.

09404-06039

$1.74

3

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

4

CLAMP

09407-05403

$2.38

5

CLAMP (L:95)

09407-11401

$2.63

5

CLAMP (L:125)

09407-14403

$2.26

5

CLAMP (L:165)

09407-18402

$2.19

5

CLAMP (L:235)

09407-25401

$4.66

6

LEAD WIRE, ENGINE (-) This part replaces 36851-05A30.

36851-02331

Unavailable

7

WIRE, WATER TEMP GAUGE This part replaces 36851-05A10.

36851-38401

Unavailable

8

CLAMP, WIRING HARNESS

36651-05A20

Unavailable

9

BOX ASSY, FUSE | Includes Item(s) 10 This part replaces 36740-05A00.

36740-27A00

Unavailable

10

FUSE (10A)

09481-10101

$2.07

11

BOLT

01517-06166

Unavailable

12

.WASHER This part replaces 08322-11066.

08322-0106B

$2.26

13

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

14

NUT This part replaces 08310-11066.

08310-0006A

$1.84

15

BREAKER ASSY, CIRCUIT

36750-05A00

$44.50

16

BRACKET, CIRCUIT BREAKER

36751-05A00

Unavailable

17

SWITCH ASSY, IGNITION | Includes Item(s) 18 - 19

37100-05A00

Unavailable

18

BOLT This part replaces 37152-47011.

07130-0616B

$2.39

19

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

20

KEY, BLANK | OPT This part replaces 37146-05A00.

37146-03A00

$9.89

20

KEY, BLANK | OPT This part replaces 37146-05A10.

37146-03A10

$11.63

20

KEY, BLANK | OPT This part replaces 37146-05A20.

37146-03A20

$12.10

20

KEY, BLANK | OPT This part replaces 37146-05A30.

37146-03A30

$10.28

21

SWITCH ASSY, STOP LAMP This part replaces 37740-07900.

37740-24A00

$18.20

22

SPRING This part replaces 09443-06032.

09443-06011

$3.40

23

SWITCH, SIDE STAND WARNING

37840-05A01

Unavailable

24

SPRING This part replaces 09443-06052.

09443-06088

$4.86

25

NO DESCRIPTION AVAILABLE This part replaces 38501-05A01.

38501-12B31

Unavailable

26

HORN ASSY This part replaces 38502-05A01.

38502-12B31

Unavailable

27

BRACKET, HORN

38516-05A00

Unavailable

28

COVER, HORN | MODEL F This part replaces 38519-05A00.

38519-05A10

Unavailable

28

COVER, HORN | MODEL F2/G

38519-05A10

Unavailable

29

SCREW This part replaces 38555-05A00.

03541-0516A

$1.49
