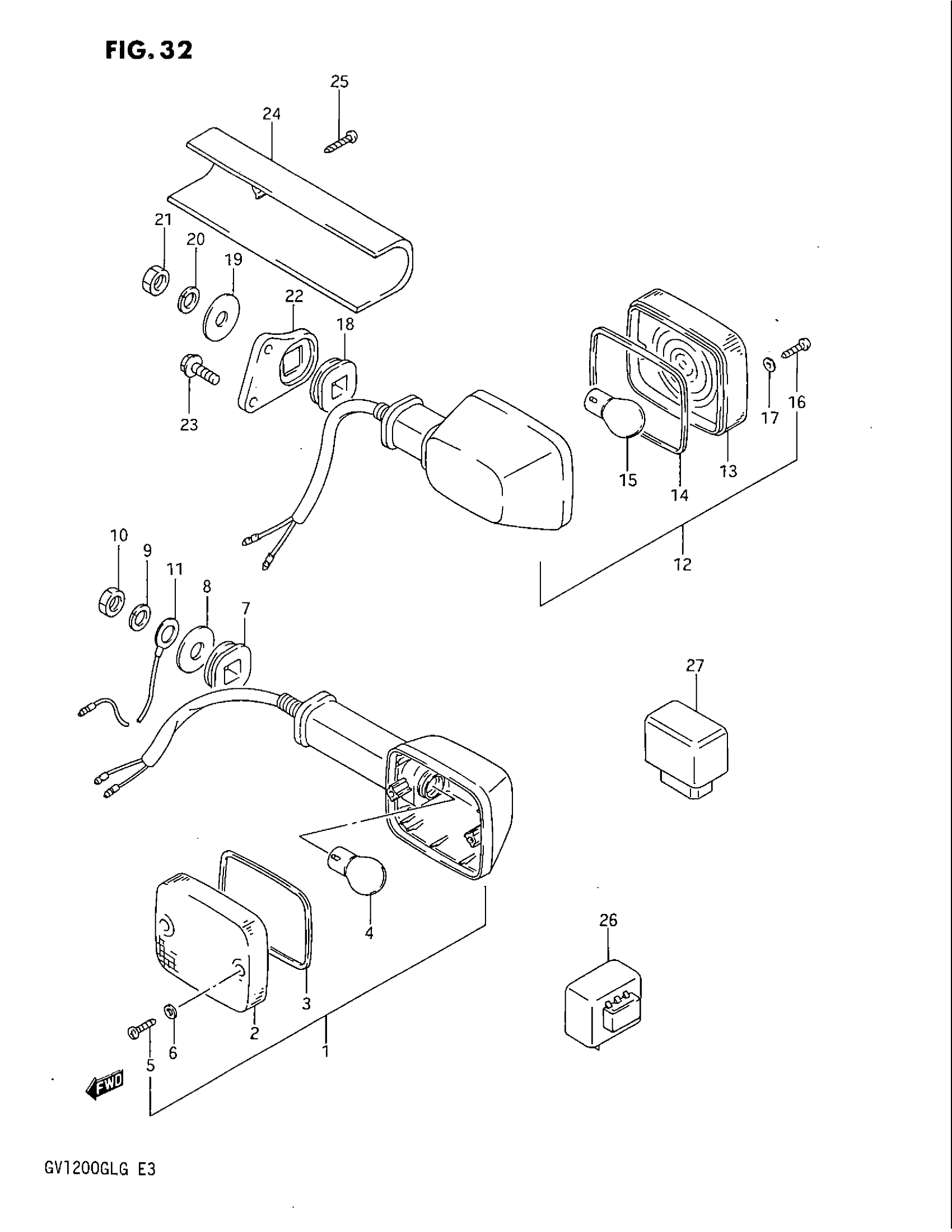

Suzuki GV1200GLF (1986) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURN SIGNAL | Includes Item(s) 2 - 6

35601-49430

Unavailable

2

LENS

35612-49010

Unavailable

3

GASKET

35613-49230

$5.38

4

BULB (12V,23W/8W)

09471-12035

$4.49

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

CUSHION

09320-15005

$4.92

8

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

9

LOCK WASHER This part replaces 08321-21106.

08321-0110A

$1.84

10

NUT This part replaces 08310-12106.

08310-0010A

$1.84

11

LEAD WIRE, EARTH This part replaces 36851-49500.

36851-49000

Unavailable

12

LAMP, REAR TURN SIGNAL | Includes Item(s) 13 - 17 This part replaces 35601-45110.

35603-45111

Unavailable

13

LENS

35612-49231

$17.75

14

GASKET

35613-49230

$5.38

15

BULB (12V,23W)

09471-12006

$3.98

16

SCREW This part replaces 03211-04208.

03211-04207

$1.49

17

GASKET

35627-43010

$2.28

18

CUSHION

09320-15005

$4.92

19

WASHER (10.5X28X2.3)

09160-10035

$1.78

20

LOCK WASHER This part replaces 08321-21106.

08321-0110A

$1.84

21

NUT This part replaces 08310-12106.

08310-0010A

$1.84

22

BRACKET, REAR TURN SIGNAL

35621-05A31

Unavailable

23

BOLT This part replaces 01514-06203.

01550-0620A

$1.97

24

COVER, TURN SIGNAL BLACKET

35645-05A30

Unavailable

25

SCREW This part replaces 03541-04255.

03541-0425B

$2.12

26

RELAY, TURN SIGNAL

38610-49231

Unavailable

27

UNIT,TURN SIG C This part replaces 38830-49500.

38830-49X00

Unavailable
