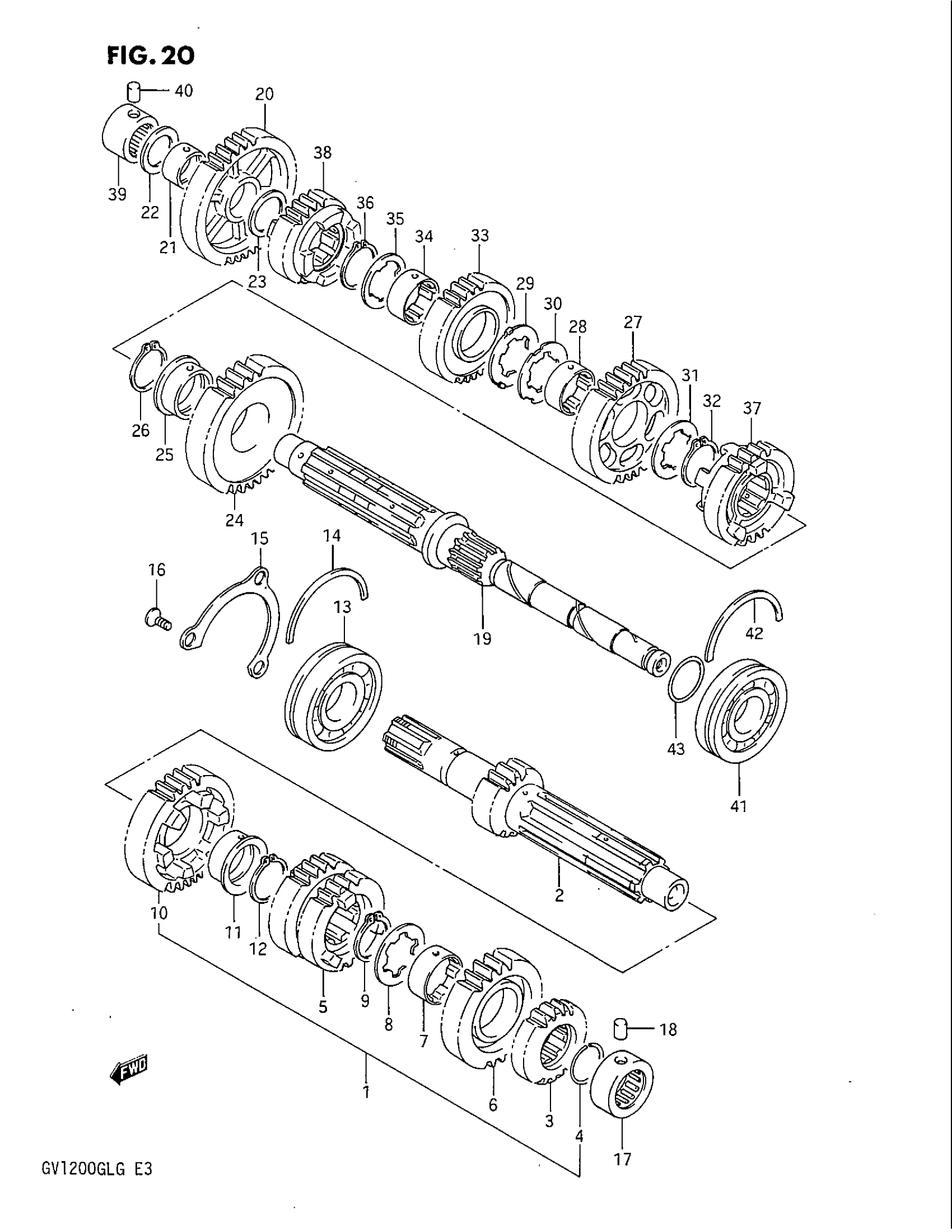

Suzuki GV1200GLF (1986) TRANSMISSION (MODEL G) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 12 This part replaces 24120-05A00.

24120-05A01

Unavailable

2

COUNTERSHAFT (NT:14)

24100-05851

Unavailable

3

GEAR, 2ND DRIVE (NT:18)

24221-05A00

Unavailable

4

CIRCLIP

09380-28005

Unavailable

5

GEAR, 3/4 DRIVE (NT:21/24)

24231-05A01

Unavailable

6

GEAR, 5TH DRIVE (NT:26)

24251-05A01

Unavailable

7

BUSH

24332-49000

$17.68

8

WASHER

09167-28001

$4.60

9

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

10

GEAR, 6TH DRIVE (NT:28)

24261-05A00

Unavailable

11

BUSH

09301-28001

$19.93

12

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

13

BEARING, LH This part replaces 09262-25051.

09262-25105

$68.10

14

C RING This part replaces 09390-62006.

09390-62012

$7.31

15

RETAINER

24741-05A00

Unavailable

16

SCREW

02122-06167

$1.49

17

BEARING, LH

09263-20054

Unavailable

18

PIN

04221-07209

$2.30

19

DRIVESHAFT

24131-05A10

Unavailable

20

GEAR, 1ST DRIVEN (NT:35)

24311-05A00

Unavailable

21

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

$28.15

22

WASHER, RH

08211-20343

Unavailable

23

WASHER, LH

08211-22321

$3.85

24

GEAR, 2ND DRIVEN (NT:32)

24321-05A00

Unavailable

25

BUSH

09301-28001

$19.93

26

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

27

GEAR, 3RD DRIVEN (NT:29)

24331-05A00

Unavailable

28

BUSH

24332-49000

$17.68

29

LOCK WASHER, RH

09169-28001

$3.85

30

LOCK WASHER, LH

09167-28002

$4.77

31

WASHER

09167-28001

$4.60

32

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

33

GEAR, 4TH DRIVEN (NT:27)

24341-05A01

Unavailable

34

BUSH

24332-49000

$17.68

35

WASHER

09167-28001

$4.60

36

CIRCLIP This part replaces 08331-11289.

08331-31289

$2.19

37

GEAR, 5TH DRIVEN (NT:24)

24351-05A03

Unavailable

38

GEAR, 6TH DRIVEN (NT:21)

24361-05A04

Unavailable

39

BEARING, RH

09263-20040

$55.20

40

PIN

04221-07209

$2.30

41

BEARING, LH This part replaces 09262-25065.

09262-25105

$68.10

42

C RING This part replaces 09390-62006.

09390-62012

$7.31

43

O RING (D:24.5,ID:1)

09280-25001

$1.56
