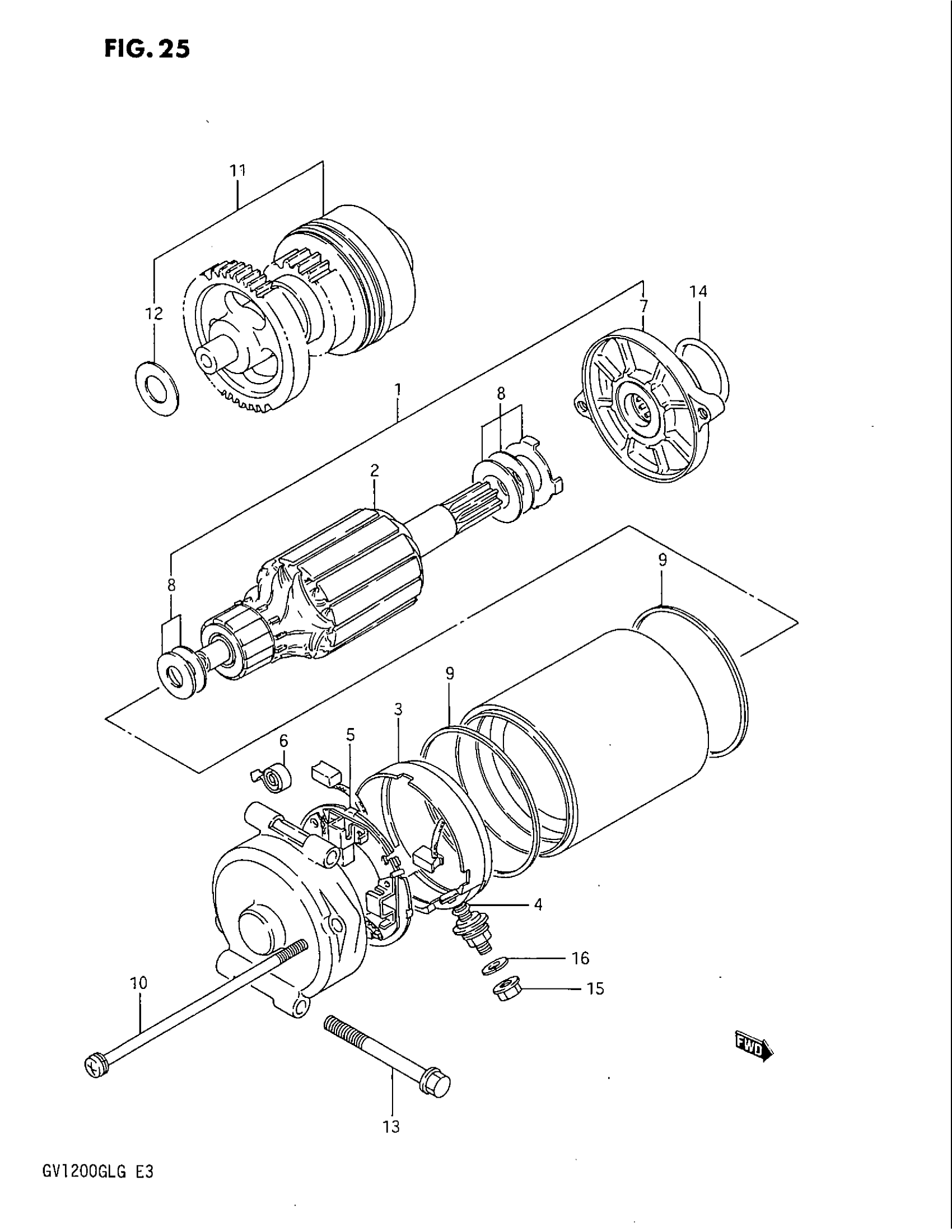

Suzuki GV1200GLF (1986) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-05A00

Unavailable

2

ARMATURE

31311-05A00

Unavailable

3

TERMINAL SET, BRUSH (+) This part replaces 31130-05A00.

31130-06B00

Unavailable

4

O RING

31143-49040

$3.71

5

HOLDER SET, BRUSH (-) This part replaces 31132-05A00.

31132-06B00

Unavailable

6

SPRING, BRUSH

31135-49040

Unavailable

7

BRACKET SET

31150-05A00

Unavailable

8

SHIM SET

31360-05A00

Unavailable

9

SEAL RING

31264-49040

Unavailable

10

BOLT This part replaces 31280-05A00.

31280-06B00

Unavailable

11

PINION, STARTING MOTOR | Includes Item(s) 12

31370-05A00

Unavailable

12

WASHER, LH This part replaces 31371-15510.

08211-12241

$2.06

13

BOLT This part replaces 01547-06605.

01547-0660B

$3.18

14

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

15

NUT This part replaces 08310-11066.

08310-0006A

$1.84

16

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84
