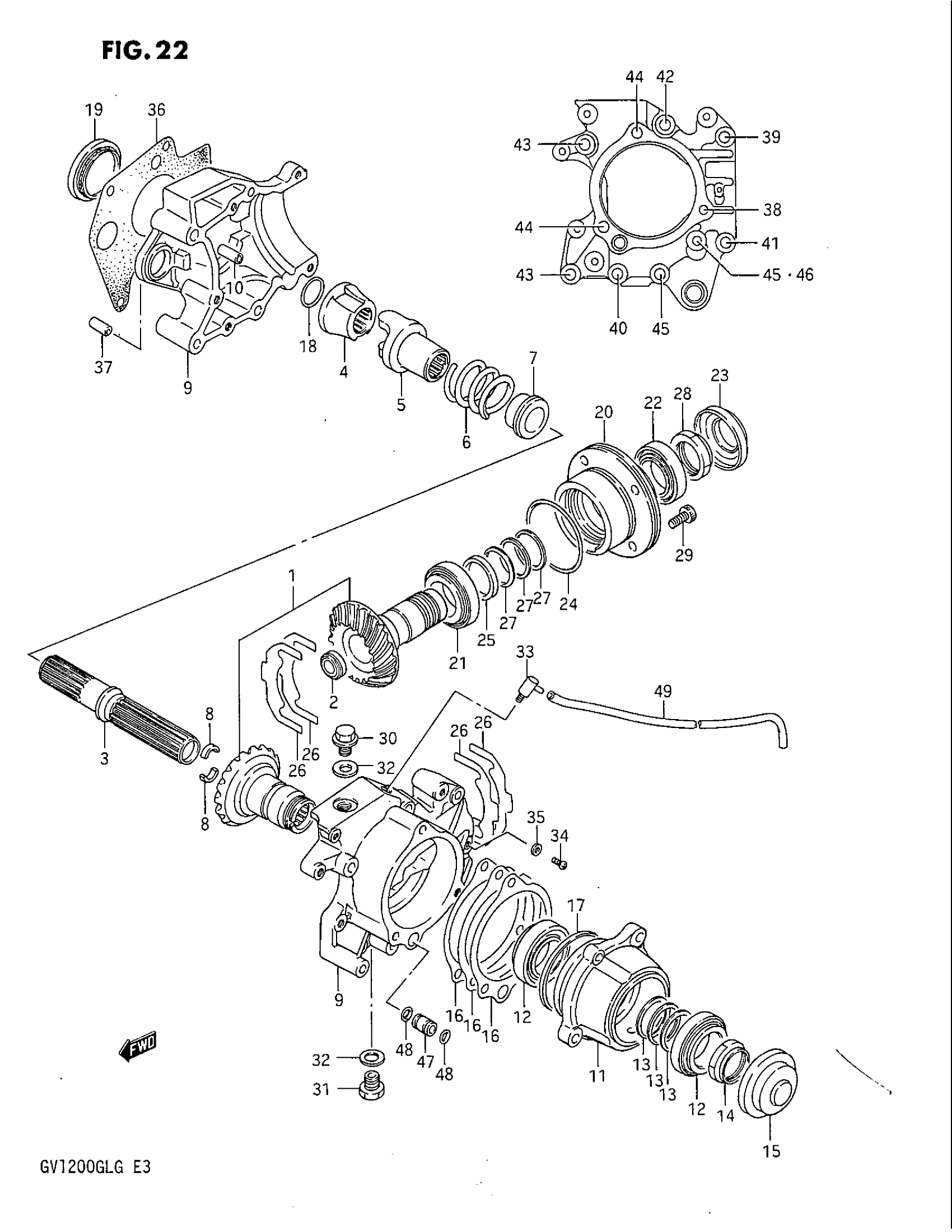

Suzuki GV1200GLF (1986) SECONDARY DRIVE GEAR (MODEL G) Diagram

#

Description
Price

1

GEAR SET, SECONDARY (NT:18/19 | Includes Item(s) 2

24900-05870

Unavailable

2

PLUG,SECONDARY This part replaces 09241-25004.

09241-25006

Unavailable

3

SHAFT, DRIVE OUTER

24961-05A10

Unavailable

4

DOG, INPUT

24922-05A10

Unavailable

5

DOG, OUTPUT

24923-05A10

Unavailable

6

SPRING

09440-49003

Unavailable

7

STOPPER, SPRING

24924-05A10

Unavailable

8

STOPPER, SHAFT

22541-45100

Unavailable

9

CASE ASSY, SECONDARY GEAR | Includes Item(s) 10

24900-05A10

Unavailable

10

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

11

HOUSING, BEARING

24933-05A10

Unavailable

12

BEARING

09265-35004

Unavailable

13

SHIM (T:1.00)

09181-35012

Unavailable

13

SHIM (T:1.03)

09181-35013

Unavailable

13

SHIM (T:1.06)

09181-35014

Unavailable

13

SHIM (T:1.09)

09181-35015

Unavailable

13

SHIM (T:1.12)

09181-35016

Unavailable

13

SHIM (T:1.15)

09181-35017

Unavailable

13

SHIM (T:1.18)

09181-35018

Unavailable

13

SHIM (T:1.21)

09181-35019

Unavailable

13

SHIM (T:1.24)

09181-35020

Unavailable

13

SHIM (T:1.27)

09181-35021

Unavailable

13

SHIM (T:1.30)

09181-35022

Unavailable

14

NUT

09159-32004

Unavailable

15

PLUG

09241-64001

Unavailable

16

SHIM (T:1.10)

24934-05A10-110

Unavailable

16

SHIM (T:0.35)

24934-05A10-115

Unavailable

16

SHIM (T:1.20)

24934-05A10-120

Unavailable

16

SHIM (T:1.25)

24934-05A10-125

Unavailable

16

SHIM (T:1.30)

24934-05A10-130

Unavailable

16

SHIM (T:1.35)

24934-05A10-135

Unavailable

16

SHIM (T:1.40)

24934-05A10-140

Unavailable

17

O RING

09280-74004

Unavailable

18

O RING (D:1.9,ID:29.7)

09280-30005

Unavailable

19

OIL SEAL

09283-46003

Unavailable

20

HOUSING, DRIVEN GEAR

24941-05A10

Unavailable

21

BEARING, FRONT

09265-35004

Unavailable

22

BEARING, REAR

09265-32002

Unavailable

23

OIL SEAL,SECOND This part replaces 09283-29004.

09283-29005

Unavailable

24

O RING (D:2.1,ID:66.2)

09280-67004

$4.10

25

SPACER (32.4X40X3)

09180-32006

$11.57

26

SHIM (T:0.30)

24945-05A10-030

Unavailable

26

SHIM (T:0.35)

24945-05A10-035

Unavailable

26

SHIM (T:0.40)

24945-05A10-040

Unavailable

26

SHIM (T:0.50)

24945-05A10-050

Unavailable

26

SHIM (T:0.60)

24945-05A10-060

Unavailable

27

SHIM (T:1.60)

09181-32001

Unavailable

27

SHIM (T:1.62)

09181-32002

Unavailable

27

SHIM (T:1.64)

09181-32003

Unavailable

27

SHIM (T:1.66)

09181-32004

Unavailable

27

SHIM (T:1.68)

09181-32005

Unavailable

27

SHIM (T:1.70)

09181-32006

Unavailable

27

SHIM (T:1.80)

09181-32007

Unavailable

27

SHIM (T:1.90)

09181-32008

Unavailable

27

SHIM (T:2.00)

09181-32009

Unavailable

28

NUT

09159-32005

Unavailable

29

BOLT This part replaces 07110-08256.

07130-0825B

$3.37

30

PLUG This part replaces 09247-14012.

09247-14026

$3.76

31

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$6.17

32

GASKET

09168-14004

$1.83

33

PLUG, BREATHER

24821-45100

$9.00

34

SCREW, THROTTLE This part replaces 02112-05105.

02112-0510A

$1.49

35

GASKET (5.3X9.3X1.2)

09168-05010

$1.71

36

GASKET

24936-05A10

Unavailable

37

PIN

09206-13004

$2.40

38

BOLT This part replaces 01517-08254.

01550-0825A

$2.32

39

.BOLT This part replaces 01517-08555.

01550-0855A

$3.05

40

BOLT This part replaces 01517-08605.

01550-0860A

$4.17

41

BOLT This part replaces 01517-08655.

01550-0865A

$3.51

42

BOLT This part replaces 01517-08855.

01550-0885B

Unavailable

43

BOLT This part replaces 01517-08905.

01550-0890B

$5.37

44

BOLT This part replaces 01517-08955.

01550-0895A

$4.60

45

BOLT (8X100) This part replaces 09103-08061.

09103-08230

Unavailable

46

GASKET (8.2X14X1)

09168-08016

$1.65

47

PIN, GALLERY

24937-24A00

Unavailable

48

O RING (D:1.9,ID:9.8) This part replaces 09280-10010.

09280-10016

$3.37

49

HOSE(2X5X600) This part replaces 09343-02009.

09352-20504-600

$6.70
