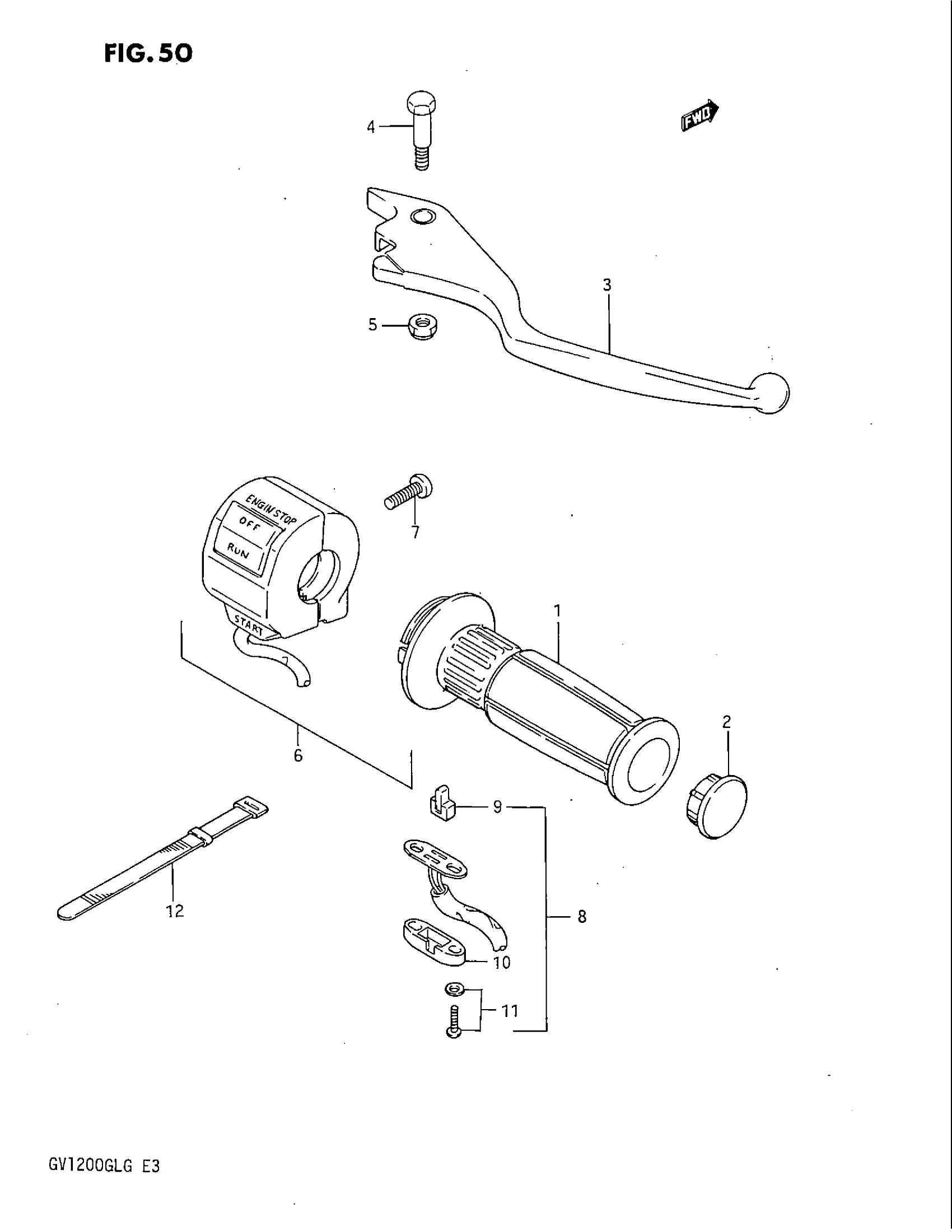

Suzuki GV1200GLF (1986) RIGHT HANDLE SWITCH Diagram

#

Description

Price

1

GRIP, THROTTLE

57110-05A00

Unavailable

2

CAP

57216-05A00

$9.17

3

LEVER, BRAKE This part replaces 57420-05A10.

57420-38B00

Unavailable

4

BOLT

57431-05A00

$7.23

5

.NUT This part replaces 08319-21065.

08319-2106B

$2.32

6

SWITCH ASSY, HANDLE, RH | Includes Item(s) 7

37200-05A62

Unavailable

7

SCREW This part replaces 02112-05205.

02112-0520B

$1.84

8

SWITCH ASSY, ST | Includes Item(s) 9 - 11 This part replaces 57460-49300.

57460-45500

$35.23

9

HOLDER

57465-18601

$4.34

10

COVER

57481-33010

$5.84

11

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

12

BAND

09407-12402

$3.04
