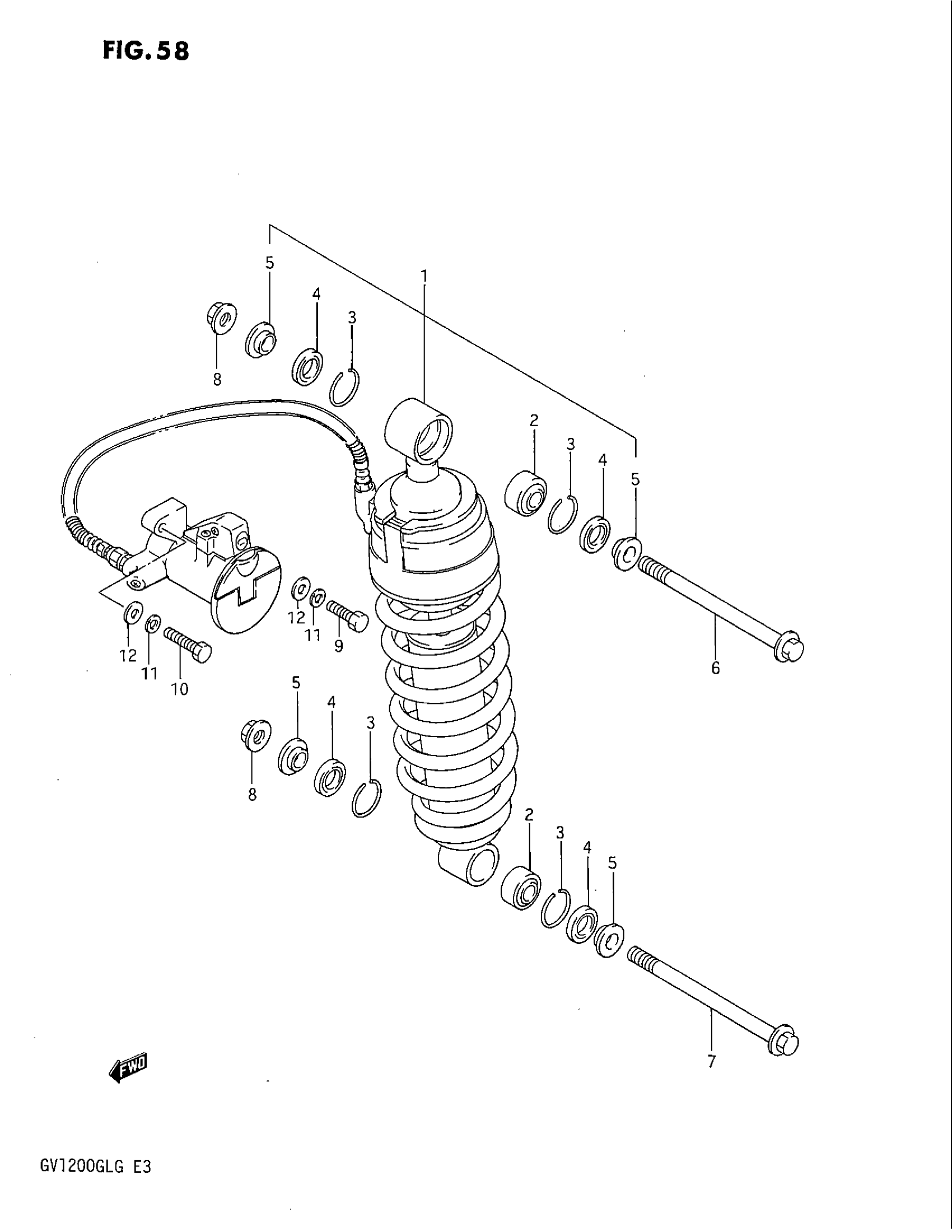

Suzuki GV1200GLF (1986) REAR SHOCK ABSORBER Diagram

#

Description

Price

1

SHOCK ABSORBER, REAR | Includes Item(s) 2 - 5

62100-05A00

Unavailable

2

BEARING, REAR (10x24x14.5) This part replaces 62175-43400.

62175-00B00

$61.15

3

RING, STOPPER This part replaces 62277-14200.

62657-34A01

$1.99

4

DUST SEAL

62226-43410

Unavailable

5

COLLAR

62684-43401

$10.75

6

BOLT, UPPER

62311-05A00

Unavailable

7

BOLT, LOWER

09103-10076

$7.18

8

NUT This part replaces 08319-31108.

08319-31107

$2.73

9

BOLT, GEAR SHIFT LINK This part replaces 01107-06205.

01500-0620A

$1.78

10

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

11

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

12

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
