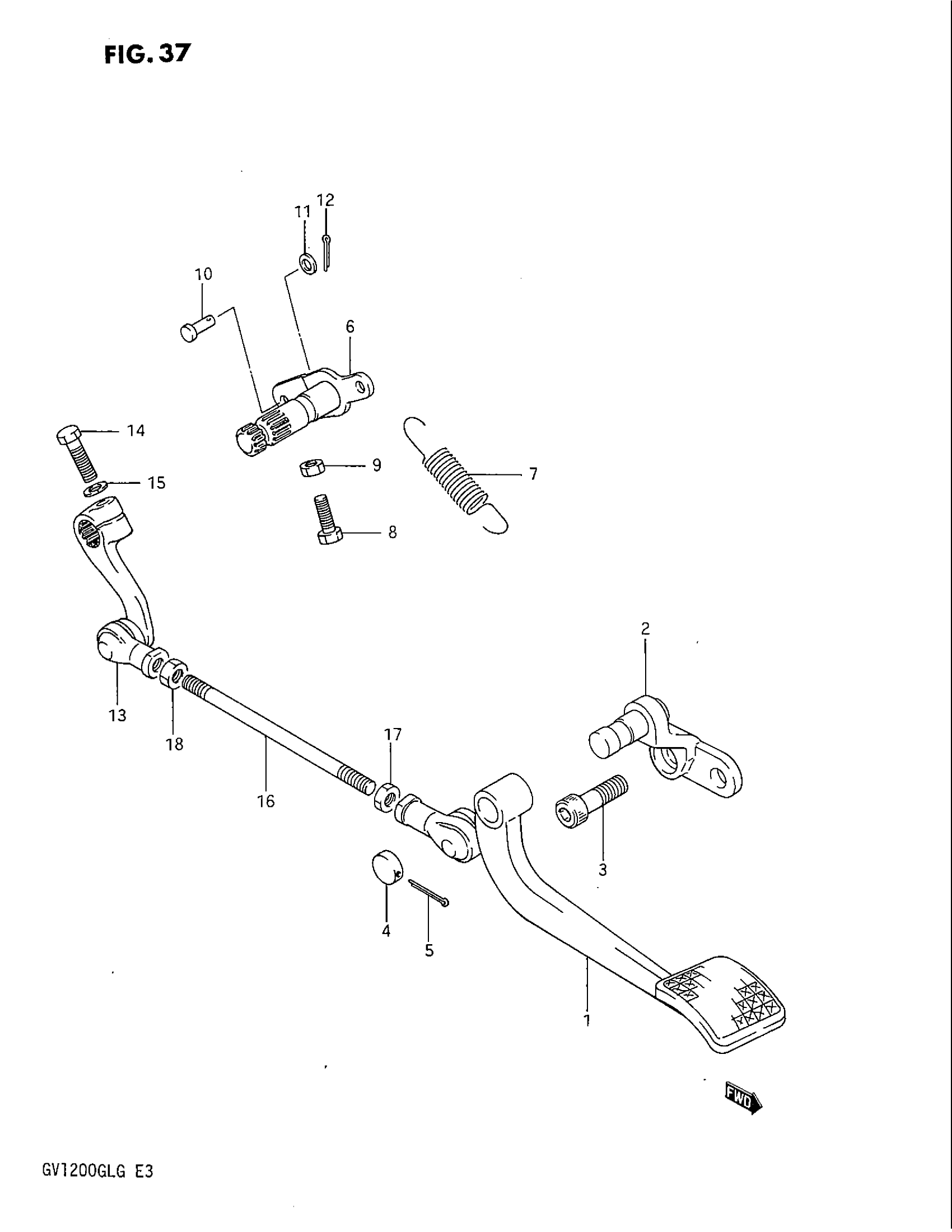

Suzuki GV1200GLF (1986) REAR BRAKE Diagram

#

Description
Price

1

PEDAL, BRAKE

43100-05A00

Unavailable

2

ARM, BRAKE PEDAL BOSS

43140-05A00

Unavailable

3

BOLT, LH This part replaces 09106-10031.

07130-10357

$5.18

4

CAP | MODEL F/F2 This part replaces 43135-07A00.

43135-07A02

Unavailable

4

CAP | MODEL G This part replaces 43135-07A01.

43135-07A02

Unavailable

5

PIN This part replaces 04111-30308.

04111-3030A

$1.49

6

ARM, BRAKE PEDAL

43120-05A00

Unavailable

7

SPRING

09443-12029

Unavailable

8

BOLT, ADJUSTER

09100-06009

$1.91

9

.NUT This part replaces 08310-11067.

08310-00067

$2.13

10

PIN

09200-06048

Unavailable

11

WASHER This part replaces 08322-21067.

08322-01067

$2.13

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

13

ARM, BRAKE PEDAL LINK

43200-05A00

Unavailable

14

BOLT, LINK ARM

01204-08257

$1.96

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

LINK, BRAKE PEDAL

43271-05A00

Unavailable

17

NUT, FRONT

09159-08058

Unavailable

18

NUT This part replaces 08310-21087.

08310-00087

$2.13
