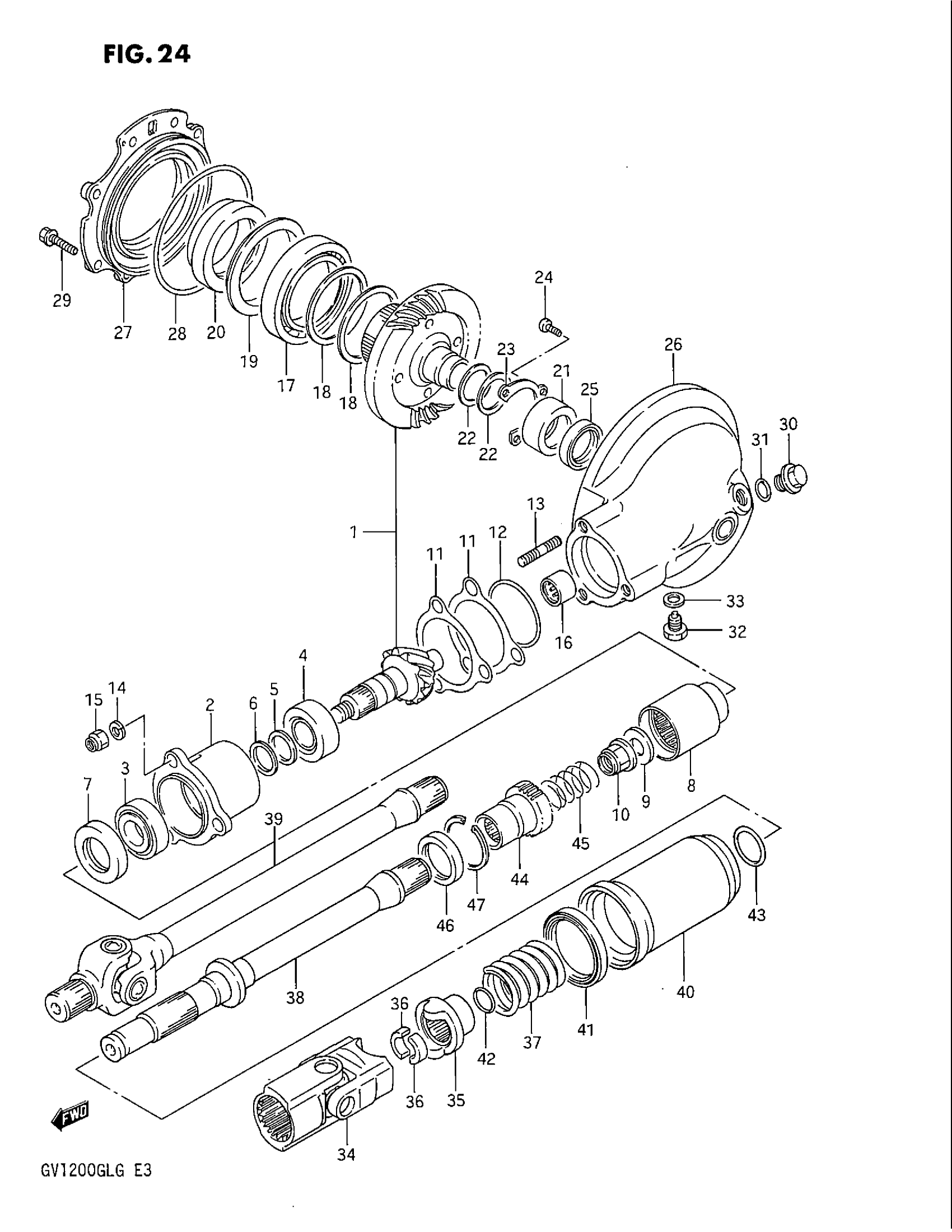

Suzuki GV1200GLF (1986) PROPELLER SHAFT - FINAL DRIVE GEAR Diagram

#

Description
Price

GEAR & CASE SET, FINAL | Includes Item(s) 1 - 33

27300-05860

Unavailable

1

GEAR SET, FINAL (NT:11/32)

27300-05851

Unavailable

2

HOUSING, DRIVE BEVEL GEAR

27441-05A00

Unavailable

3

BEARING, REAR This part replaces 09265-25011.

09265-25024

$60.80

4

BEARING, REAR

09265-25013

$63.43

5

SPACER (25.2X30X2.5)

09180-25071

Unavailable

6

SHIM (T:1.60)

09181-25006

Unavailable

6

SHIM (T:1.62)

09181-25007

Unavailable

6

SHIM (T:1.64)

09181-25008

Unavailable

6

SHIM (T:1.66)

09181-25009

Unavailable

6

SHIM (T:1.68)

09181-25010

Unavailable

6

SHIM (T:1.70)

09181-25011

Unavailable

6

SHIM (T:1.80)

09181-25012

Unavailable

6

SHIM (T:1.90)

09181-25013

Unavailable

6

SHIM (T:2.00)

09181-25014

Unavailable

7

OIL SEAL (32X54X7)

09283-32017

Unavailable

8

COUPLING, FINAL DRIVE GEAR

27172-45100

Unavailable

9

WASHER (14X29X4)

09160-14021

$6.63

10

NUT

09159-14010

$14.12

11

SHIM (T:0.15)

27445-45100

Unavailable

11

SHIM (T:0.30)

27445-45102

Unavailable

11

SHIM (T:0.35)

27445-45101

Unavailable

11

SHIM (T:0.40)

27445-45103

Unavailable

12

O RING (D:2.4,ID:62.6)

09280-63004

$4.75

13

STUD BOLT (L:30) This part replaces 01421-10308.

01421-1030A

$2.57

14

LOCK WASHER This part replaces 08321-31105.

08321-0110A

$1.84

15

NUT This part replaces 09159-10036.

09159-10027

$3.10

16

BEARING

09263-18020

Unavailable

17

BEARING, RH

09262-70001

$140.93

18

SHIM (T:0.35)

27327-34200

Unavailable

18

SHIM (T:0.40)

27327-34210

Unavailable

18

SHIM (T:0.50)

27327-34220

Unavailable

18

SHIM (T:0.60)

27327-34230

Unavailable

19

PLATE

27328-05A00

Unavailable

20

OIL SEAL, RH

09289-70001

$51.76

21

BEARING, LH

09263-32007

$81.08

22

SHIM (T:1.35)

27326-34241

Unavailable

22

SHIM (T:1.25)

27326-34231

Unavailable

22

SHIM (T:1.20)

27326-34221

Unavailable

22

SHIM (T:1.10)

27326-34211

Unavailable

22

SHIM (T:1.05)

27326-34201

Unavailable

23

RETAINER, BEARING

27329-34200

Unavailable

24

SCREW This part replaces 02112-06128.

02112-06127

$1.84

25

OIL SEAL (30X42X7)

09283-30028

$9.60

26

CASE, FINAL GEAR

27450-05A00

Unavailable

27

CASE, FINAL GEAR BEARING

27460-05A01

Unavailable

28

O RING (D:3.5,ID:139.6)

09280-00018

Unavailable

29

BOLT This part replaces 01517-08258.

01550-08257

$2.81

30

PLUG, OIL FILLER

09247-18001

$8.83

31

O RING (D:2.4,ID:17.8)

09280-18004

$5.18

32

PLUG, OIL DRAIN This part replaces 09247-14019.

09247-14036

$6.17

33

GASKET

09168-14004

$1.83

34

YOKE, UNIVERSAL JOINT | MODEL F/F2

27100-05A02

Unavailable

35

DOG, OUT PUT CAM | MODEL F/F2

27142-05A00

Unavailable

36

STOPPER | MODEL F/F2

22541-34200

Unavailable

37

SPRING | MODEL F/F2

09440-35002

Unavailable

38

SHAFT, PROPELLER | MODEL F/F2

27151-05A03

Unavailable

39

SHAFT, PROPELLER | MODEL G

27100-05A10

Unavailable

40

COVER, PROPLLER SHAFT | MODEL F/F2

27160-05A00

Unavailable

41

OIL SEAL (52X62X6) | MODEL F/F2

09283-52003

Unavailable

42

O RING (D:2.4,ID:15.8) | MODEL F/F2

09280-16005

$2.23

43

O RING (D:2,ID:23.5) | MODEL F/F2

09280-24006

$1.72

44

COUPLING, PROPELLER SHAFT

27171-45101

Unavailable

45

SPRING

09440-27005

Unavailable

46

OIL SEAL (30X40.5X5.5)

09283-30026

$10.40

47

CIRCLIP

09381-40003

$4.64
