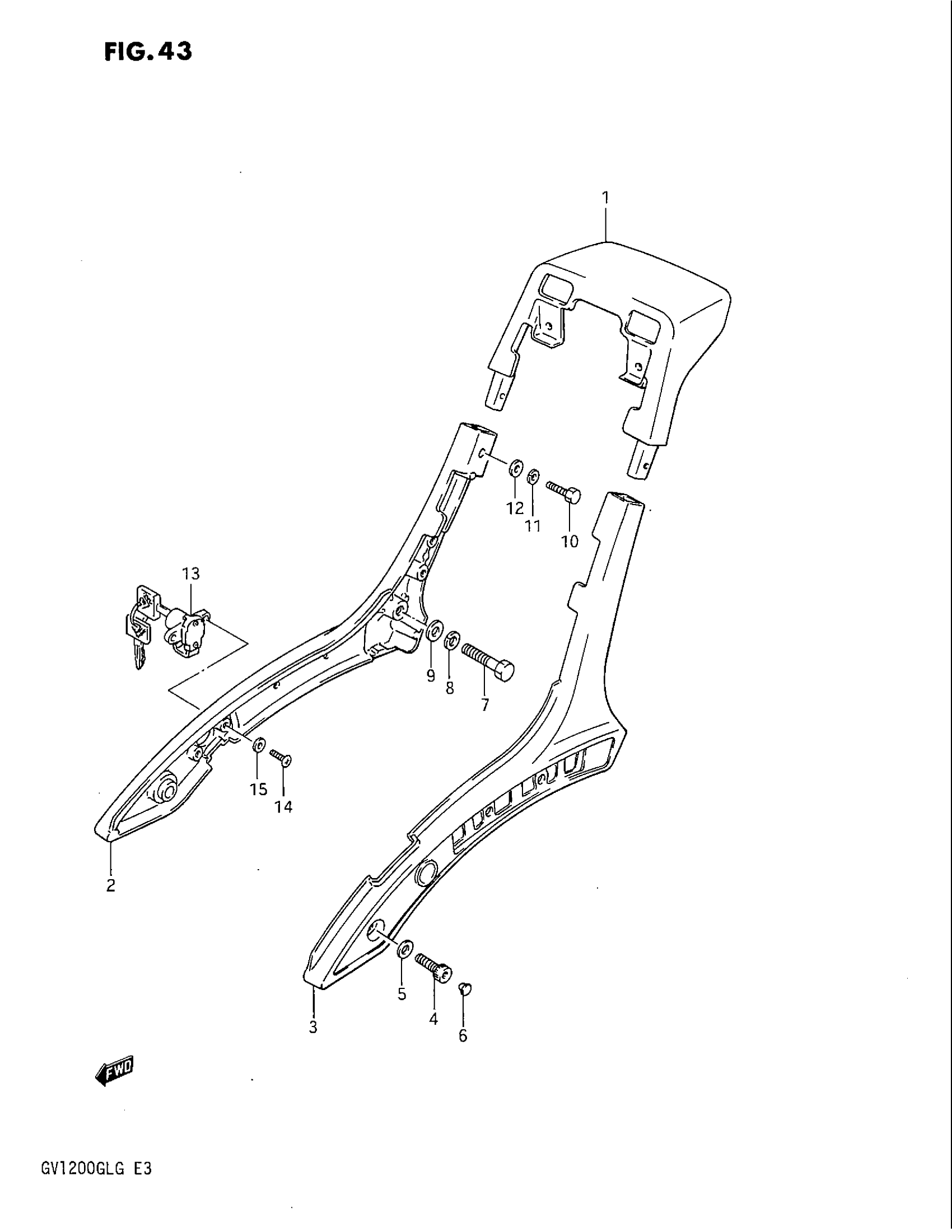

Suzuki GV1200GLF (1986) PILLION RIDER HANDLE Diagram

#

Description
Price

1

HANDLE, PILLION RIDER UPPER

46211-05A00

Unavailable

2

HANDLE, PILLION RIDER RH

46212-05A00

Unavailable

3

HANDLE, PILLION RIDER LH

46213-05A00

Unavailable

4

BOLT This part replaces 07110-08205.

07130-0820B

$3.49

5

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

6

CAP

09250-06004

$1.49

7

BOLT This part replaces 01107-10456.

01500-1045A

$3.04

8

LOCK WASHER This part replaces 08321-21106.

08321-0110A

$1.84

9

WASHER, KNUCKLE END This part replaces 08322-21106.

08322-0110A

$1.84

10

BOLT, GEAR SHIFT LINK This part replaces 01107-06206.

01500-0620A

$1.78

11

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

12

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

13

LOCK ASSY, HELMET

95700-05A00-KEY

Unavailable

14

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

15

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84
