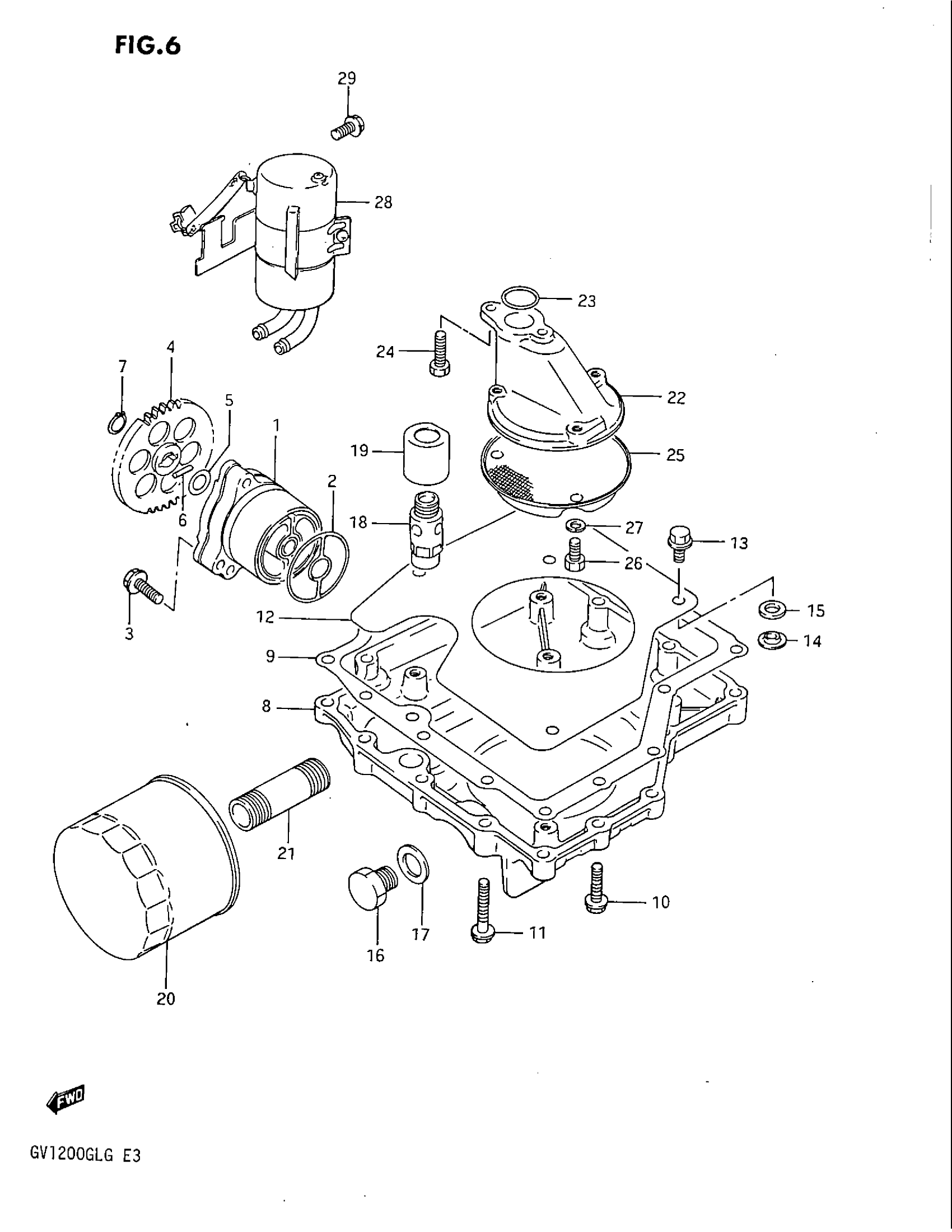

Suzuki GV1200GLF (1986) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL

16400-05A00

Unavailable

2

O RING

16491-31300

$13.90

3

BOLT This part replaces 01517-06308.

01550-06307

$2.69

4

NO DESCRIPTION AVAILABLE This part replaces 16331-05A00.

16331-05A01

Unavailable

5

WASHER

08221-10185

$2.15

6

PIN

09261-04009

$1.56

7

CIR CLIP

08331-31109

$1.78

8

PAN, OIL | MODEL F/F2 This part replaces 11511-05A02.

11511-24A01

Unavailable

8

PAN, OIL | MODEL G

11511-24A01

Unavailable

9

GASKET,OIL PAN( This part replaces 11489-05A00.

11489-05A01

Unavailable

10

BOLT This part replaces 01517-06258.

01550-06257

$2.30

11

BOLT This part replaces 01517-06308.

01550-06307

$2.69

12

PLATE, OIL PAN

11523-05A03

Unavailable

13

BOLT This part replaces 01517-06128.

01550-06127

$2.30

14

CUSHION

11524-05A00

Unavailable

15

WASHER This part replaces 09169-06028.

09169-06041

$2.20

16

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$5.24

17

GASKET

09168-14004

$1.83

18

VALVE ASSY, OIL RELIEF This part replaces 16440-15500.

16440-11D00

$59.07

19

GUIDE, VALVE

16449-05A00

Unavailable

20

FILTER, OIL

16510-05A00

$23.30

21

UNION, FILTER STAND

16591-05A00

Unavailable

22

HOLDER, OIL STRAINER

16525-09301

Unavailable

23

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

24

BOLT This part replaces 01517-06208.

01550-06207

$2.30

25

STRAINER, OIL

16520-05A00

Unavailable

26

BOLT This part replaces 01107-06128.

01500-06127

$1.97

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

FUEL PUMP

15100-05A10

Unavailable

29

BOLT, CLAMP This part replaces 01517-06126.

01550-0612A

$1.97
