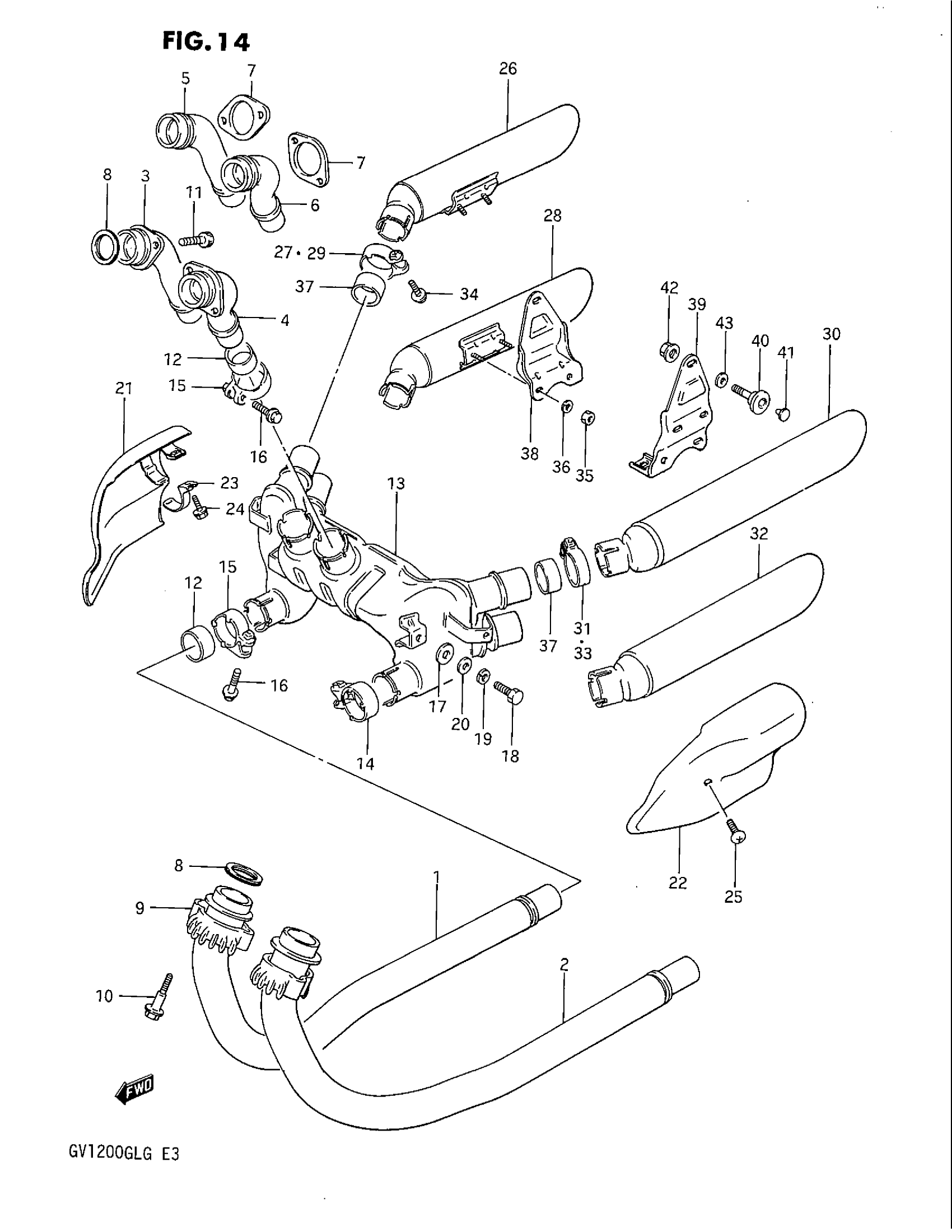

Suzuki GV1200GLF (1986) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST FRONT RH

14150-05A01

Unavailable

2

PIPE, EXHAUST FRONT LH

14160-05A01

Unavailable

3

PIPE, EXHAUST REAR RH | MODEL F This part replaces 14170-05A01.

14170-05A02

Unavailable

4

PIPE, EXHAUST REAR LH | MODEL F This part replaces 14180-05A01.

14180-05A02

Unavailable

5

PIPE, EXHAUST REAR RH | MODEL F2/G

14170-05A02

Unavailable

6

PIPE, EXHAUST REAR LH | MODEL F2/G

14180-05A02

Unavailable

7

FLANGE, EXHAUST PIPE | MODEL F2/G

14174-05A00

Unavailable

8

GASKET, EXHAUST PIPE This part replaces 14181-12010.

14181-42A00

$10.93

9

CLAMP, EXHAUST PIPE FRONT

14182-49011

Unavailable

10

BOLT, MUFFLER SUPPORT This part replaces 07120-08458.

07120-0845B

$3.91

11

BOLT This part replaces 07120-08308.

07120-08307

$4.77

12

CONNECTOR, MUFFLER This part replaces 14771-05A01.

14771-05A02

$27.57

13

BODY, PREMUFFLER | MODEL F/F2 This part replaces 14210-05A00-H01.

14210-05A01-H01

Unavailable

13

BODY, PREMUFFLER | MODEL G; Includes Item(s) 14 - 15

14210-05A01-H01

Unavailable

14

CLAMP, NO.1

14459-05A10

Unavailable

15

CLAMP, NO.2

14469-05A10

Unavailable

16

BOLT (8X35) This part replaces 01517-08355.

01550-0835A

$3.04

17

GASKET

09168-08017

Unavailable

18

BOLT This part replaces 01107-08255.

01500-0825A

$2.19

19

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

20

WASHER This part replaces 08322-21085.

08322-0108A

$1.92

21

COVER, MUFFLER RH

14780-05A01

Unavailable

22

COVER, MUFFLER LH

14790-05A01

Unavailable

23

CLAMP, MUFFLER COVER

14785-05A00

Unavailable

24

BOLT (L:25) | MODEL F This part replaces 09103-08144.

09103-08065

Unavailable

24

BOLT (L:25) | MODEL F2/G

09103-08065

Unavailable

25

SCREW

02142-06127

$1.49

26

MUFFLER, UPPER RH | MODEL F/F2 This part replaces 14310-05A03-H01.

14310-05A04-H01

Unavailable

26

MUFFLER, UPPER RH | MODEL G; Includes Item(s) 27

14310-05A04-H01

Unavailable

27

CLAMP, MUFFLER CONNECTOR This part replaces 14459-05A00.

14459-14A10

$17.94

28

MUFFLER, LOWER RH | MODEL F/F2 This part replaces 14320-05A03-H01.

14320-05A04-H01

Unavailable

28

MUFFLER, LOWER RH | MODEL G; Includes Item(s) 29

14320-05A04-H01

Unavailable

29

CLAMP, MUFFLER CONNECTOR This part replaces 14459-05A00.

14459-14A10

$17.94

30

MUFFLER, UPPER LH | MODEL F/F2 This part replaces 14330-05A03-H01.

14330-05A04-H01

Unavailable

30

MUFFLER, UPPER LH | MODEL G; Includes Item(s) 31

14330-05A04-H01

Unavailable

31

CLAMP

14469-05A00

Unavailable

32

MUFFLER, LOWER LH | MODEL F/F2 This part replaces 14340-05A03-H01.

14340-05A04-H01

Unavailable

32

MUFFLER, LOWER LH | MODEL G; Includes Item(s) 33

14340-05A04-H01

Unavailable

33

CLAMP

14469-05A00

Unavailable

34

BOLT This part replaces 01517-08358.

01550-08357

$3.49

35

NUT This part replaces 08310-12088.

08310-00087

$2.13

36

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

37

CONNECTOR, MUFFLER This part replaces 14771-05A11.

14771-24B01

$33.70

38

BRACKET, MUFFLER, RH

14411-05A00

Unavailable

39

BRACKET, MUFFLER, LH

14431-05A00

Unavailable

40

BOLT

09106-10015

Unavailable

41

CAP

43575-34500

$1.72

42

NUT This part replaces 09159-10014.

09159-10046-XC0

$2.03

43

WASHER

09160-10005

$1.87
