Description

Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 13

35100-05A30-999

Unavailable

2

RIM

35111-15530

Unavailable

3

UNIT

35121-05A30

Unavailable

4

SCREW

09125-05102

$1.61

5

NUT

35155-48510

$2.28

6

CUSHION

35139-45230

$1.98

7

SPACER

35133-45230

$3.30

8

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.93

9

SCREW This part replaces 35151-15510.

09125-04020

$2.53

10

SPRING

35154-27630

Unavailable

11

WASHER

35157-27630

$3.25

12

NUT

35135-45600

$3.65

13

COVER, SOCKET

35173-45200

Unavailable

14

BULB (12V,60/55W,H4) | EXECUTED LOCALLY

09471-12060

$25.15

15

SCREW

09127-05013

$1.49

16

REFLEX REFLCTOR, FRONT SIDE

35950-43431

$17.83

17

NUT This part replaces 08316-16056.

08316-1005A

$2.19

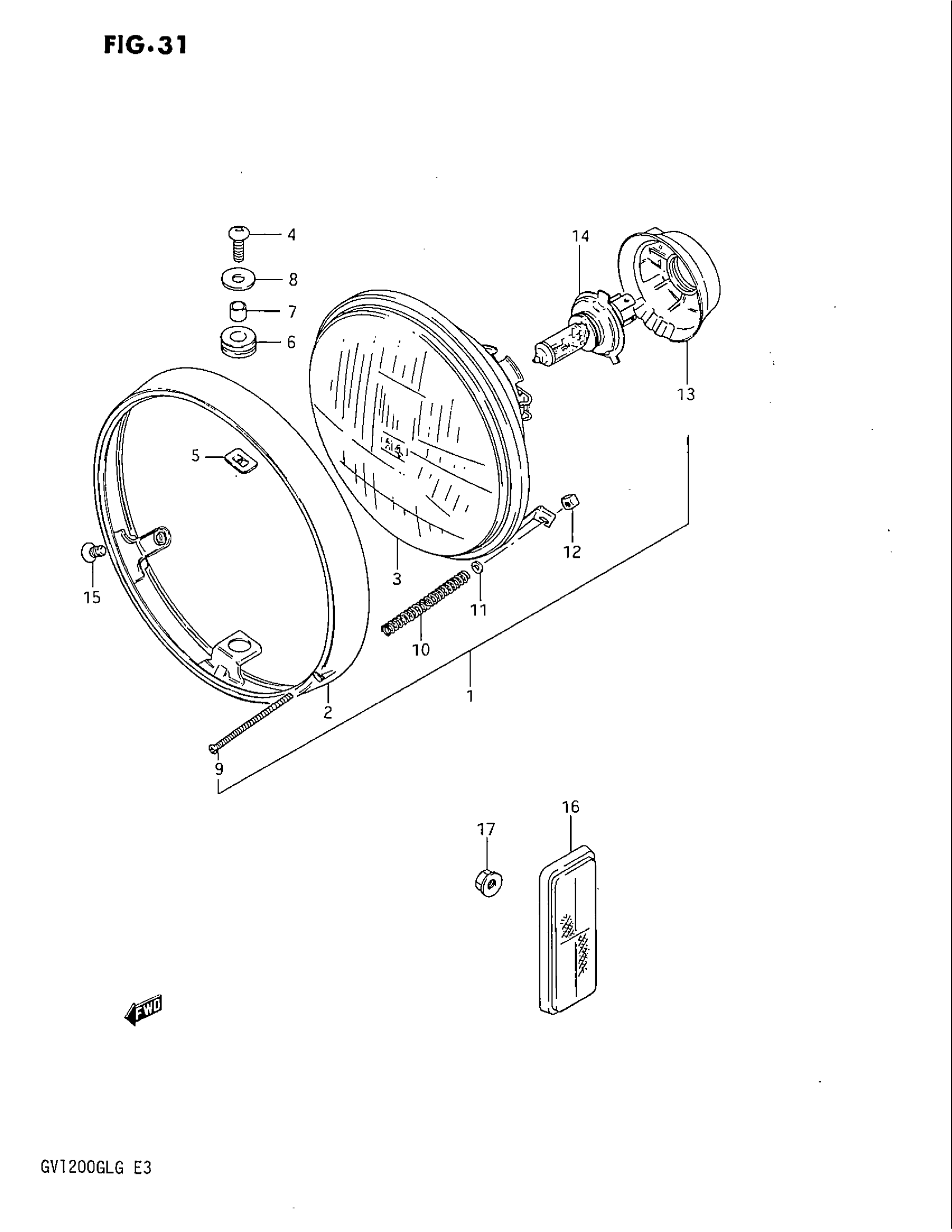

Suzuki GV1200GLF (1986) HEADLAMP Diagram

HEADLAMP ASSY | Includes Item(s) 2 - 13

RIM

UNIT

SCREW

NUT

CUSHION

SPACER

WASHER (5.5X18X1) This part replaces 35138-45230.

SCREW This part replaces 35151-15510.

SPRING

WASHER

NUT

COVER, SOCKET

BULB (12V,60/55W,H4) | EXECUTED LOCALLY

SCREW

REFLEX REFLCTOR, FRONT SIDE

NUT This part replaces 08316-16056.
