1986 Suzuki GV1200GLF Handlebar - Control Cable Diagram

← All diagrams

Find the part on the Handlebar - Control Cable diagram for your 1986 Suzuki GV1200GLF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

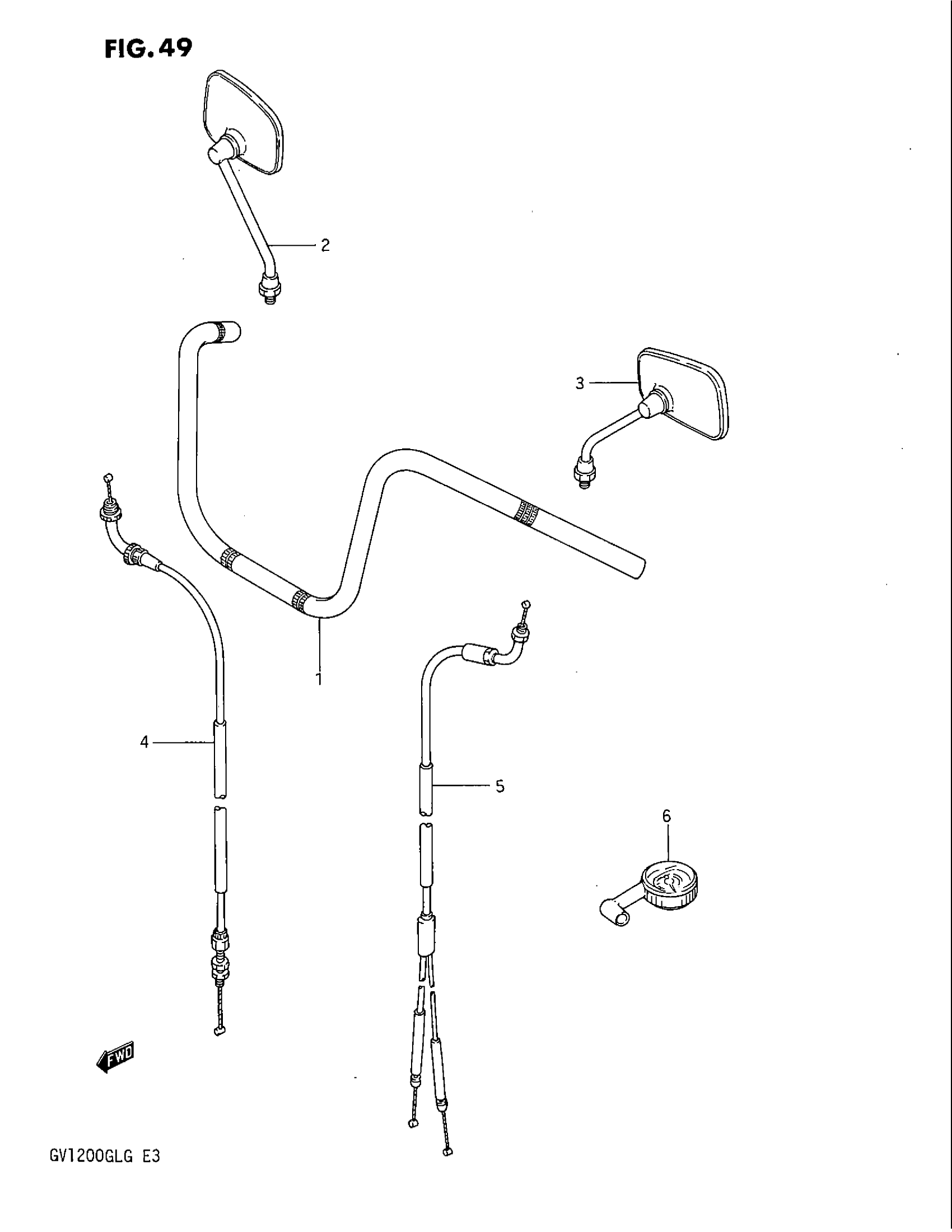

1986 Suzuki GV1200GLF Handlebar - Control Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

56111-05A00

1
Out of stock

2

MIRROR ASSY,RR | MODEL F/F2 This part replaces 56500-05A50.

56500-38B02

1
Out of stock

2

MIRROR ASSY,RR | MODEL G This part replaces 56500-05A51.

56500-38B02

1
Out of stock

3

MIRROR ASSY,RR | MODEL F/F2 This part replaces 56600-05A50.

56600-38B02

1
Out of stock

3

MIRROR ASSY,RR | MODEL G This part replaces 56600-05A51.

56600-38B02

1
Out of stock

4

CABLE ASSY, THROTTLE

58300-05A00

1
Out of stock

5

NO DESCRIPTION AVAILABLE | MODEL F/F2 This part replaces 58410-05A01.

58410-05X00

1
Out of stock

5

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 58410-05A20.

58410-05X00

1
Out of stock

6

GAUGE ASSY, FRONT FORK

96200-41330

1
Out of stock
