1986 Suzuki GV1200GLF Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1986 Suzuki GV1200GLF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

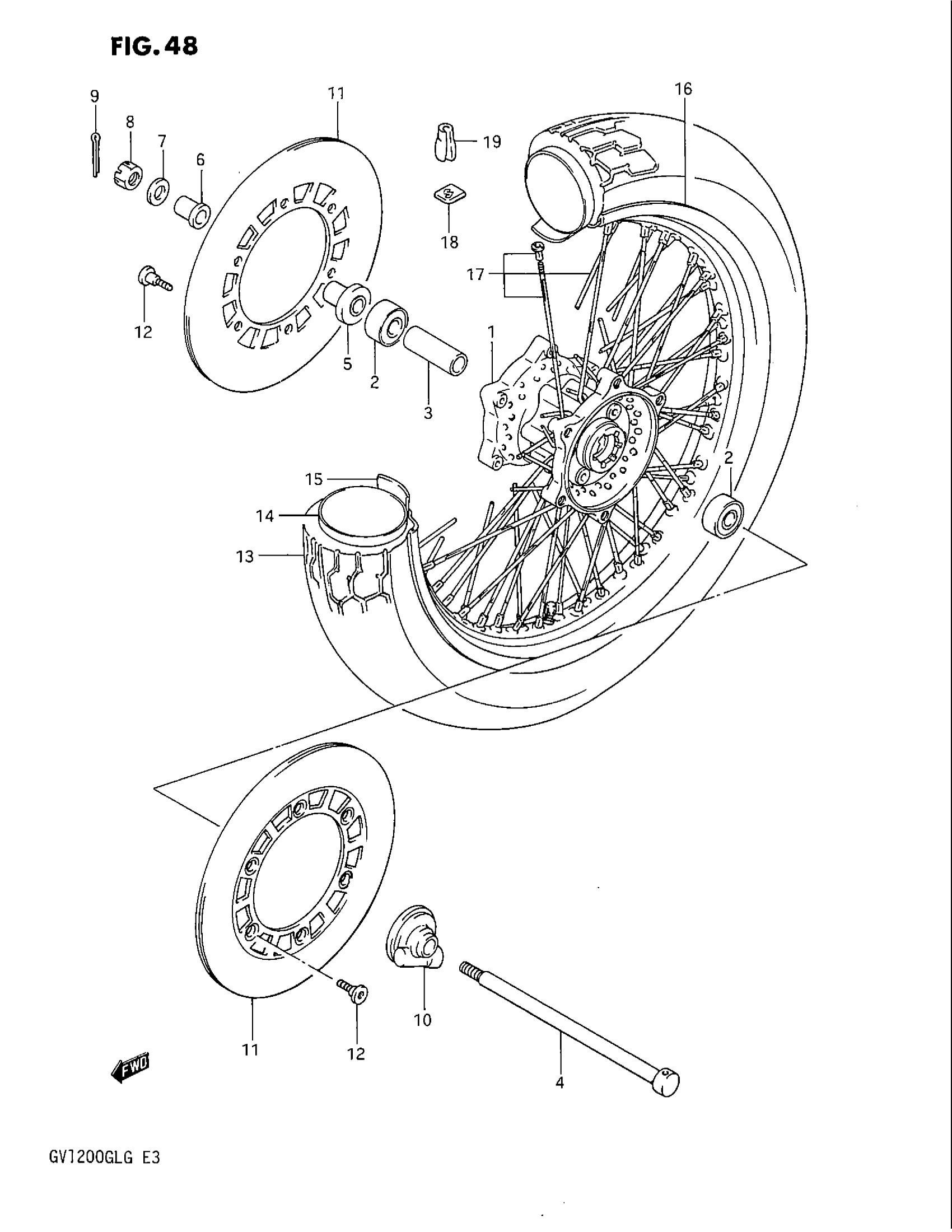

1986 Suzuki GV1200GLF Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB ASSY, FRONT

54110-05A00

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER, HUB BEARING

09180-15067

1
Out of stock

4

AXLE, FRONT

54711-09300

1
Out of stock

5

SPACER, BEARING RH

54740-05A00

1
Out of stock

6

SPACER, AXIE RH This part replaces 54741-07A00.

54741-49101

1
Out of stock

7

WASHER This part replaces 08322-21128.

08322-01127

1
Out of stock

8

NUT This part replaces 08314-41128.

08314-4012A

1
Out of stock

9

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

10

BOX ASSY,SPEEDO This part replaces 54600-49100.

54600-49101

1
Out of stock

11

DISC, FRONT BRAKE | MODEL F

59211-05A11

2
Out of stock

11

(CA)DISC, FRONT BRAKE | MODEL F2 CALIFORNIA ONLY

59211-05A50

2
Out of stock

11

DISC, FRONT BRAKE | MODEL G

59211-05A60

2
Out of stock

12

BOLT

09106-08049

12
Out of stock

13

TIRE, FRONT (110/80-19 59H) | BS

55100-05A30

1
Out of stock

14

TUBE This part replaces 55200-05A30.

55200-44611

1
Out of stock

15

PROTECTOR, WHEEL INNER TUBE FRONT This part replaces 55261-15010.

55261-15020

1
Out of stock

16

RIM, WHEEL This part replaces 55311-05A01.

55311-07A01

1
Out of stock

17

NO DESCRIPTION AVAILABLE This part replaces 55320-05A02.

55320-05A03

1
Out of stock

18

WHEEL WEIGHT | MODEL F/F2 This part replaces 55411-05A00.

43221-59J10

1
Out of stock

18

WHEEL WEIGHT | MODEL F/F2 This part replaces 55412-05A00.

43221-59J10

1
Out of stock

18

WHEEL WEIGHT | MODEL F/F2 This part replaces 55413-05A00.

43221-59J10

1
Out of stock

19

BALANCER, WHEEL (20G) This part replaces 55412-38A00.

55412-41F00

1
Out of stock

19

BALANCER WHEEL (30G) This part replaces 55413-38A00.

55413-41F00

1
Out of stock
