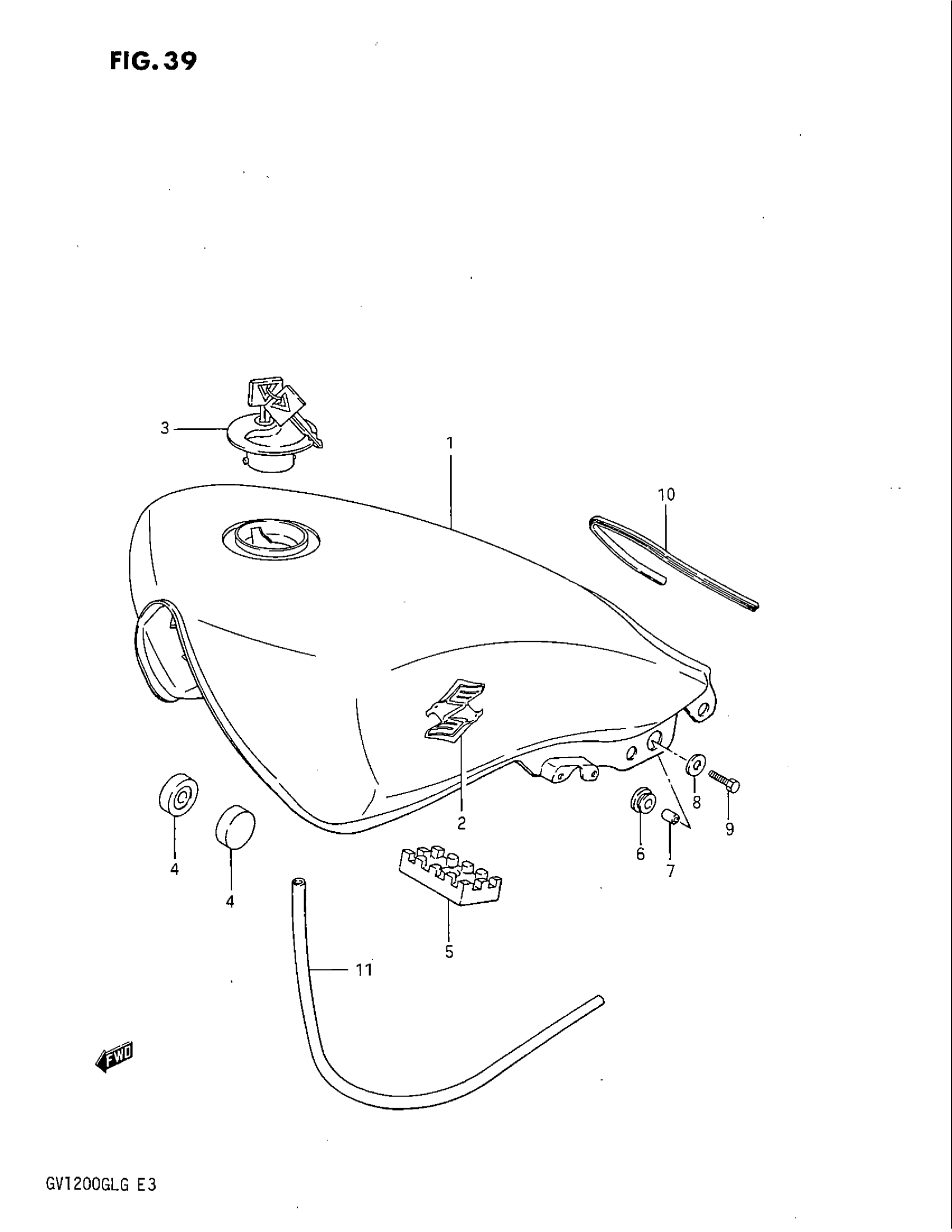

Suzuki GV1200GLF (1986) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY,FUEL | MODEL FOTHER THAN CALIFORNIA This part replaces 44100-05A00-20F.

44110-05A00-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-05A10-20F.

44110-05A10-13L

Unavailable

1

TANK ASSY,FUEL | MODEL FOTHER THAN CALIFORNIA This part replaces 44100-05A00-019.

44110-05A00-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-05A10-019.

44110-05A10-13L

Unavailable

1

TANK ASSY,FUEL | MODEL G This part replaces 44100-05A20-20F.

44110-05A00-YD8

Unavailable

1

TANK ASSY,FUEL | MODEL G; Includes Item(s) 2 - 2 This part replaces 44100-05A20-019.

44110-05A00-YD8

Unavailable

2

EMBLEM | FOR 20F This part replaces 68111-05A00-22C.

68111-38A10-38R

Unavailable

2

EMBLEM, FUEL TA | FOR 019 This part replaces 68111-05A00-22L.

68111-38A10-0GZ

Unavailable

3

CAP, FILLER | OTHER THAN CALIFORNIA

44200-05A10-KEY

Unavailable

3

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-05A00-KEY.

44200-05822

$74.48

4

CUSHION This part replaces 09329-10007.

09329-10026

$2.23

5

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

$12.87

6

CUSHION, REAR

09320-10005

$2.65

7

SPACER (6.5X10X10) This part replaces 09180-06030.

09180-06310

$1.91

8

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.91

9

BOLT This part replaces 01107-06207.

01500-06207

$2.28

10

MOLD, FUEL TANK REAR

44578-05A00

Unavailable

11

HOSE, BREATHER

09343-07141

Unavailable
