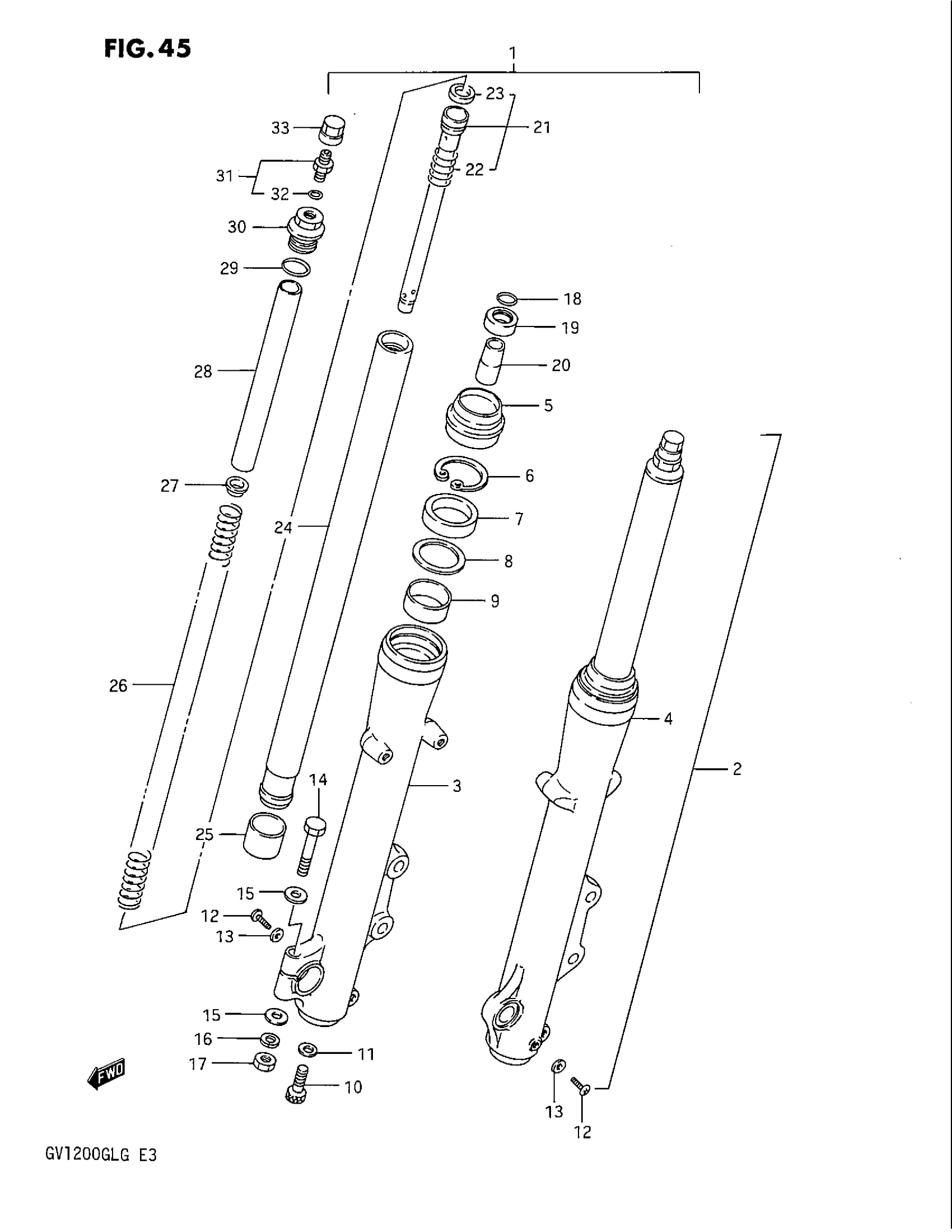

Suzuki GV1200GLF (1986) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-05A00

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 33

51104-05A00

Unavailable

3

TUBE, OUTER RH

51130-05A00

Unavailable

4

TUBE, OUTER LH

51140-05A00

Unavailable

5

.SEAL, DUST This part replaces 51173-05A00.

51173-14F00

$23.07

6

RING, SNAP

51156-49440

$5.05

7

SEAL, OIL This part replaces 51153-05A00.

51153-27C20

$13.63

8

WASHER

51158-05A00

$5.83

9

METAL, SLIDE This part replaces 51167-05A00.

51167-26E10

$24.52

10

BOLT

51147-40300

$5.38

11

GASKET

51148-40300

$2.03

12

SCREW

02112-04087

$1.49

13

GASKET

51183-03010

$2.07

14

BOLT This part replaces 01107-08508.

01500-08507

$3.05

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

17

NUT This part replaces 08310-12088.

08310-00087

$2.13

18

RING, SNAP

51198-05A00

Unavailable

19

VALVE

51193-05A00

Unavailable

20

PIECE, OIL LOCK

51195-05A00

Unavailable

21

CYLINDER

51146-05A00

Unavailable

22

SPRING

51177-49440

Unavailable

23

RING, PISTON

51196-05A00

$8.42

24

TUBE, INNER

51110-05A00

Unavailable

25

PISTON

51121-05A00

Unavailable

26

SPRING

51171-05A00

Unavailable

27

GUIDE, SPRING

51172-40300

$6.48

28

SPACER

51176-05A00

Unavailable

29

O RING

51117-40300

$3.09

30

CAP

51351-05A00

Unavailable

31

NO DESCRIPTION AVAILABLE This part replaces 51293-43400.

62274-14400

Unavailable

32

.O RING (D:1.9,ID:5.7) This part replaces 51117-14210.

09280-06005

$1.49

33

CAP

51294-49010

Unavailable
