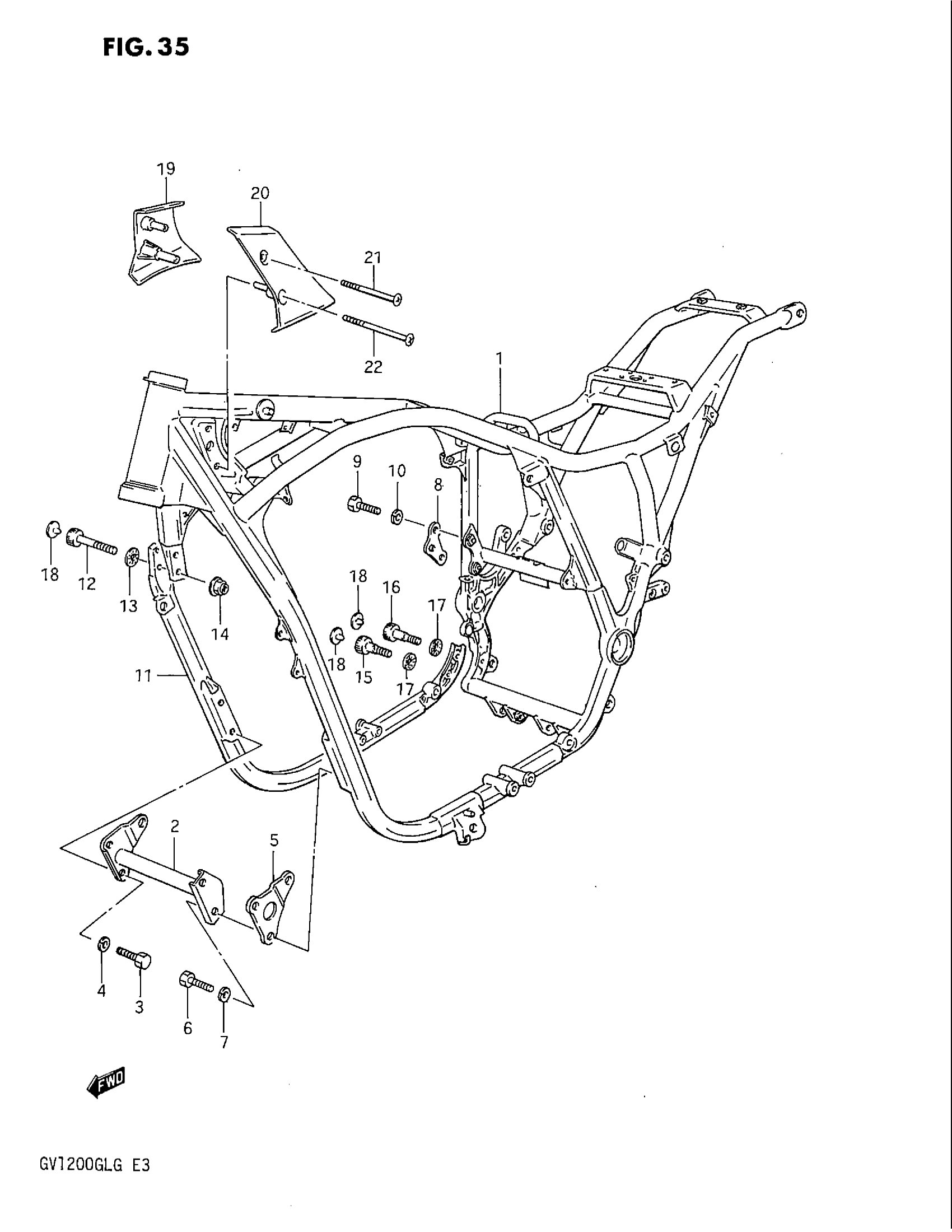

Suzuki GV1200GLF (1986) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL FOTHER THAN CALIFORNIA This part replaces 41100-05A00-019.

41100-05A01-019

Unavailable

1

FRAME (BLACK) | MODEL GOTHER THAN CALIFORNIA

41100-05A01-019

Unavailable

1

(CA) FRAME (BLACK) | MODEL F,CALIFORNIA ONLY This part replaces 41100-05A50-019.

41100-05A51-019

Unavailable

1

(CA) FRAME (BLACK) | MODEL G,CALIFORNIA ONLY

41100-05A51-019

Unavailable

2

PLATE, NO.1, RH (BLACK)

41910-05A00-019

Unavailable

3

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

4

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

5

PLATE, NO.1, LH (BLACK)

41921-05A00-019

Unavailable

6

BOLT This part replaces 01107-08205.

01500-0820A

$2.28

7

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

8

PLATE, NO.3, RH (BLACK)

41951-05A00-019

Unavailable

9

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

10

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

11

TUBE, FRAME DOWN RH (BLACK)

41140-05A00-019

Unavailable

12

BOLT,10X38 This part replaces 09106-10033.

09106-10033-XC0

Unavailable

13

WASHER This part replaces 09164-10005.

09164-10010

$4.83

14

NUT This part replaces 08319-31105.

08319-3110A

$2.73

15

BOLT, LOWER FRONT

09106-10034

Unavailable

16

BOLT, LOWER REAR

09106-10035

Unavailable

17

WASHER

09164-11003

Unavailable

18

CAP

43575-34500

$1.72

19

COVER, FRAME HEAD RH

51876-05A00

Unavailable

20

COVER, FRAME HEAD LH

51886-05A00

Unavailable

21

NO DESCRIPTION AVAILABLE This part replaces 02142-05505.

02142-05503

Unavailable

22

SCREW, LOWER

02142-05605

Unavailable
