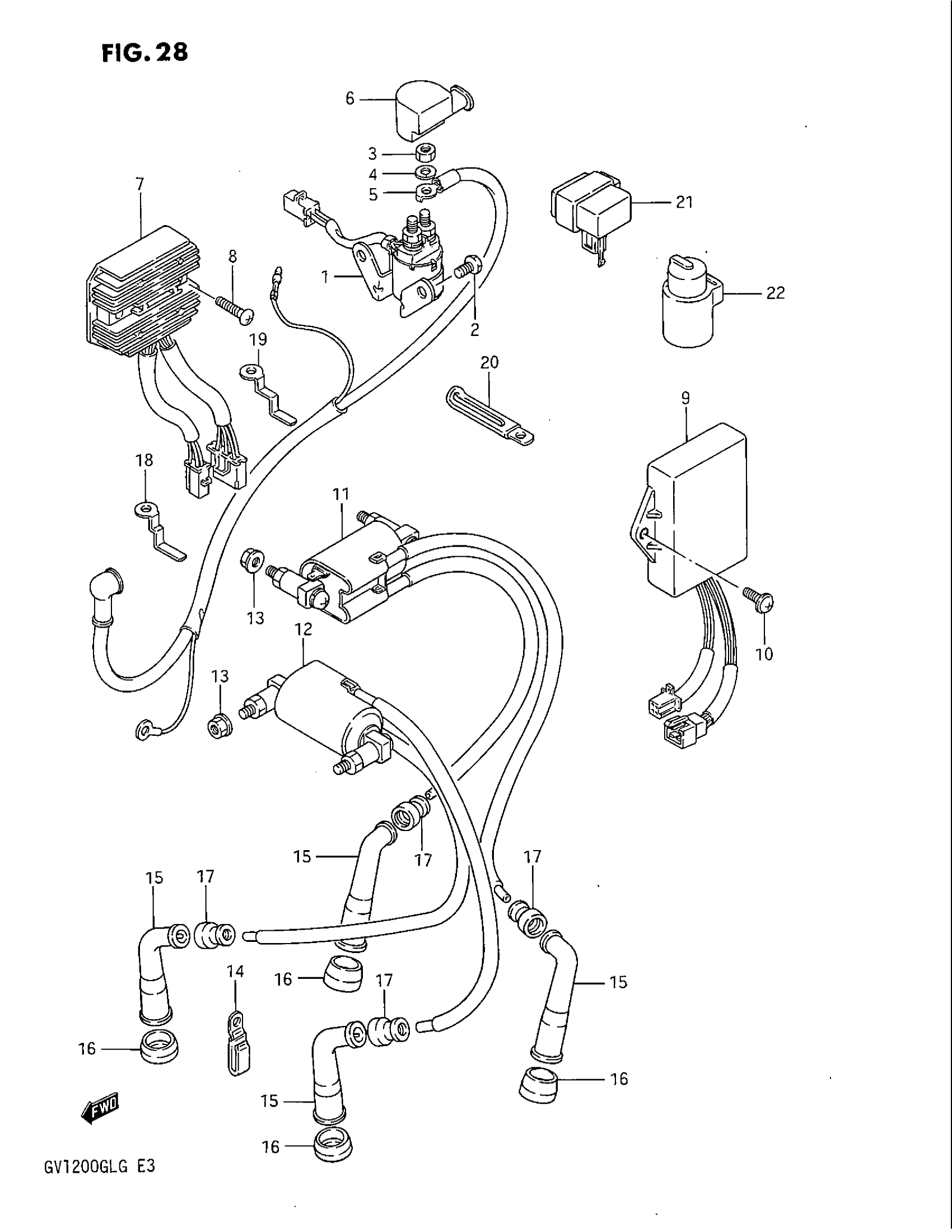

Suzuki GV1200GLF (1986) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-15500.

31800-15501

$97.79

2

BOLT This part replaces 01107-06106.

01500-0610B

$1.81

3

NUT This part replaces 08310-11066.

08310-0006A

$1.84

4

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

5

LEAD WIRE, STARTING MOTOR

33850-05A00

Unavailable

6

CAP, STARTER RELAY This part replaces 33624-49420.

33624-49401

$7.20

7

RECTIFIER, REGULATOR

32800-05A00

Unavailable

8

SCREW This part replaces 02112-06256.

02112-0625A

$1.80

9

IGNITER UNIT

32900-05A00

Unavailable

10

SCREW This part replaces 02152-06126.

02112-1612B

$3.03

11

COIL ASSY, IGNI This part replaces 33410-05A00.

33410-31311

$161.13

12

COIL ASSY, IGNI This part replaces 33420-05A00.

33410-31311

$161.13

13

NUT This part replaces 08316-16066.

08316-1006B

$2.50

14

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

15

CAP, SPARK PLUG

33510-45010

$24.99

16

SEAL, SPARK PLUG This part replaces 33541-05A00.

33541-47D00

$7.83

17

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

18

CLAMP | MODEL F/F2

36651-05A00

Unavailable

18

CLAMP | MODEL G

36651-05A01

Unavailable

19

CLAMP | MODEL F/F2

36651-05A10

Unavailable

19

CLAMP | MODEL G

36651-05A11

Unavailable

20

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

21

RELAY, FUEL CUT This part replaces 33950-05A00.

33950-38B00

$78.81

22

RELAY ASSY, THERMOSTAT

17690-33400

Unavailable
