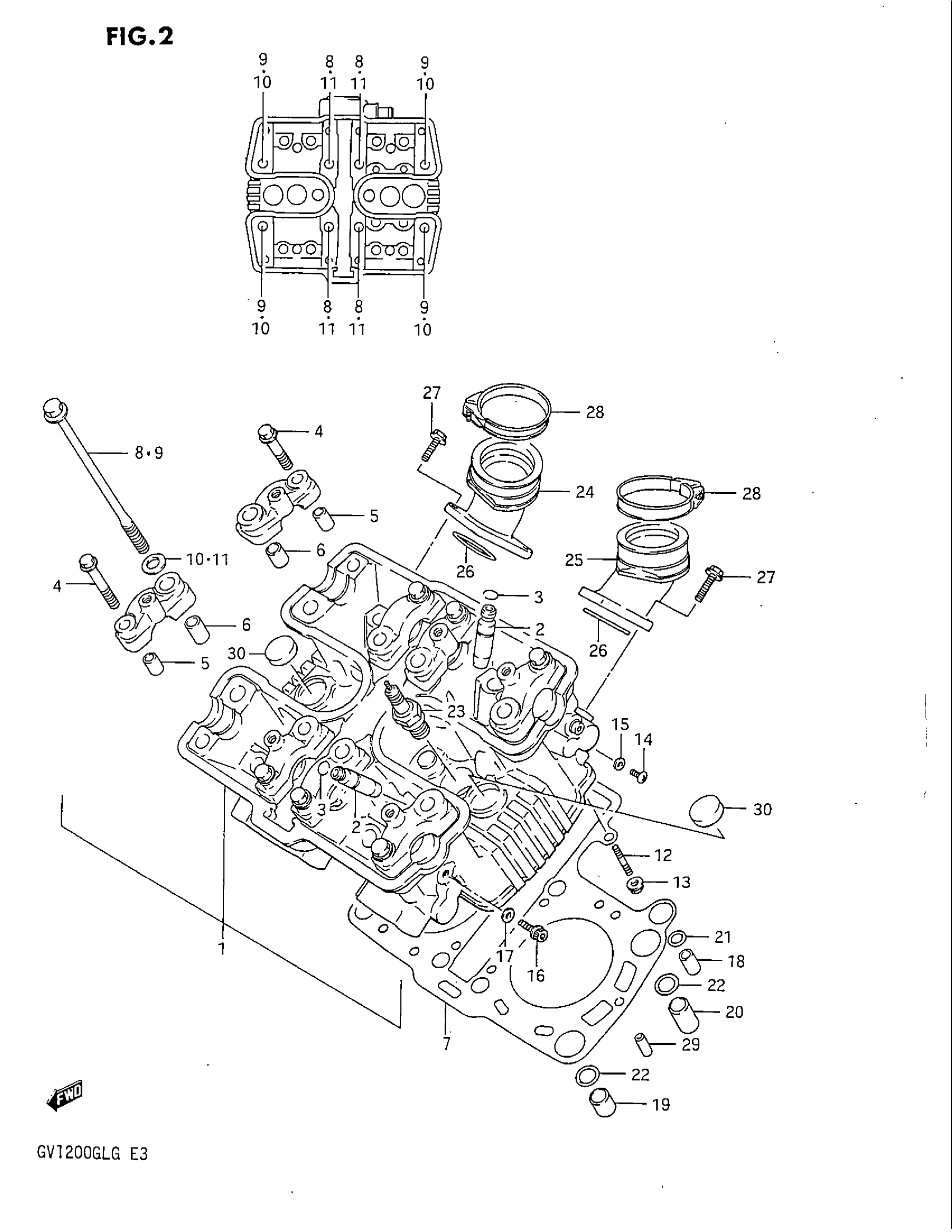

Suzuki GV1200GLF (1986) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD SET, CYLINDER FRONT | MODEL F/F2,~E.NO.103545 This part replaces 11101-05A00.

11101-05A01

Unavailable

1

HEAD SET, CYLINDER FRONT | MODEL F/F2,E.NO.103546~MODEL G; Includes Item(s) 2 - 6

11101-05A01

Unavailable

2

NO DESCRIPTION AVAILABLE This part replaces 11115-05A70.

11115-33271

Unavailable

3

.RING (10X85)

09381-10004

$1.50

4

BOLT (8X48)

09103-08136

Unavailable

5

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

6

PIN (10.4X13X22)

09206-13004

$2.40

7

GASKET, HEAD FRONT | ~E.NO.103545 This part replaces 11141-05A03.

11141-05A04

Unavailable

7

GASKET, HEAD FRONT | E.NO.103546~

11141-05A04

Unavailable

8

BOLT (10X155) This part replaces 09103-10104.

09103-10133

$9.48

9

BOLT (10X165) This part replaces 09103-10105.

09103-10134

$9.48

10

WASHER

09160-11005

Unavailable

11

WASHER, REAR This part replaces 09160-10085.

09160-10142

$2.34

12

STUD BOLT This part replaces 01421-06255.

01421-0625A

$1.99

13

NUT This part replaces 08316-16064.

08316-1006B

$2.50

14

SCREW This part replaces 02112-05085.

02112-0508A

$1.49

15

GASKET

09168-05010

$1.71

16

BOLT, OIL GALLERY This part replaces 07120-06125.

07120-0612B

$3.04

17

GASKET

09168-06018

$1.77

18

PIPE, OIL NO.1 (6.4X9X20)

09206-09003

Unavailable

19

PIPE, OIL NO.2 (10.4X13X10) | ~E.NO.103545E.NO.103546~

09206-13005

Unavailable

20

PIN This part replaces 09206-13006.

09206-13017

$7.61

21

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

22

O RING, OIL NO.2

09280-12009

$3.18

23

SPARK PLUG (DR8EA) This part replaces 09482-00144.

09482-00399

$3.32

23

SPARK PLUG (X24ESR-U) This part replaces 09482-00145.

09482-00223

$5.18

24

PIPE, INTAKE, RH | MODEL F/F2 This part replaces 13110-05A00.

13110-05A10

Unavailable

24

PIPE, INTAKE, RH | MODEL G

13110-05A10

Unavailable

25

PIPE, INTAKE, LH | MODEL F/F2 This part replaces 13120-05A00.

13120-05A10

Unavailable

25

PIPE, INTAKE, LH | MODEL G

13120-05A10

Unavailable

26

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

27

BOLT This part replaces 01517-06205.

01550-0620A

$1.97

28

CLAMP, INTAKE PIPE This part replaces 13170-05A00.

09402-52501

$10.90

29

PIN | E.NO.103546~ This part replaces 06211-04103.

04221-04109

Unavailable

30

CAP, WATER JACKET PLUG

09242-22001

Unavailable
